VIGIL VIDEO SOLUTIONS | QUICK START GUIDE

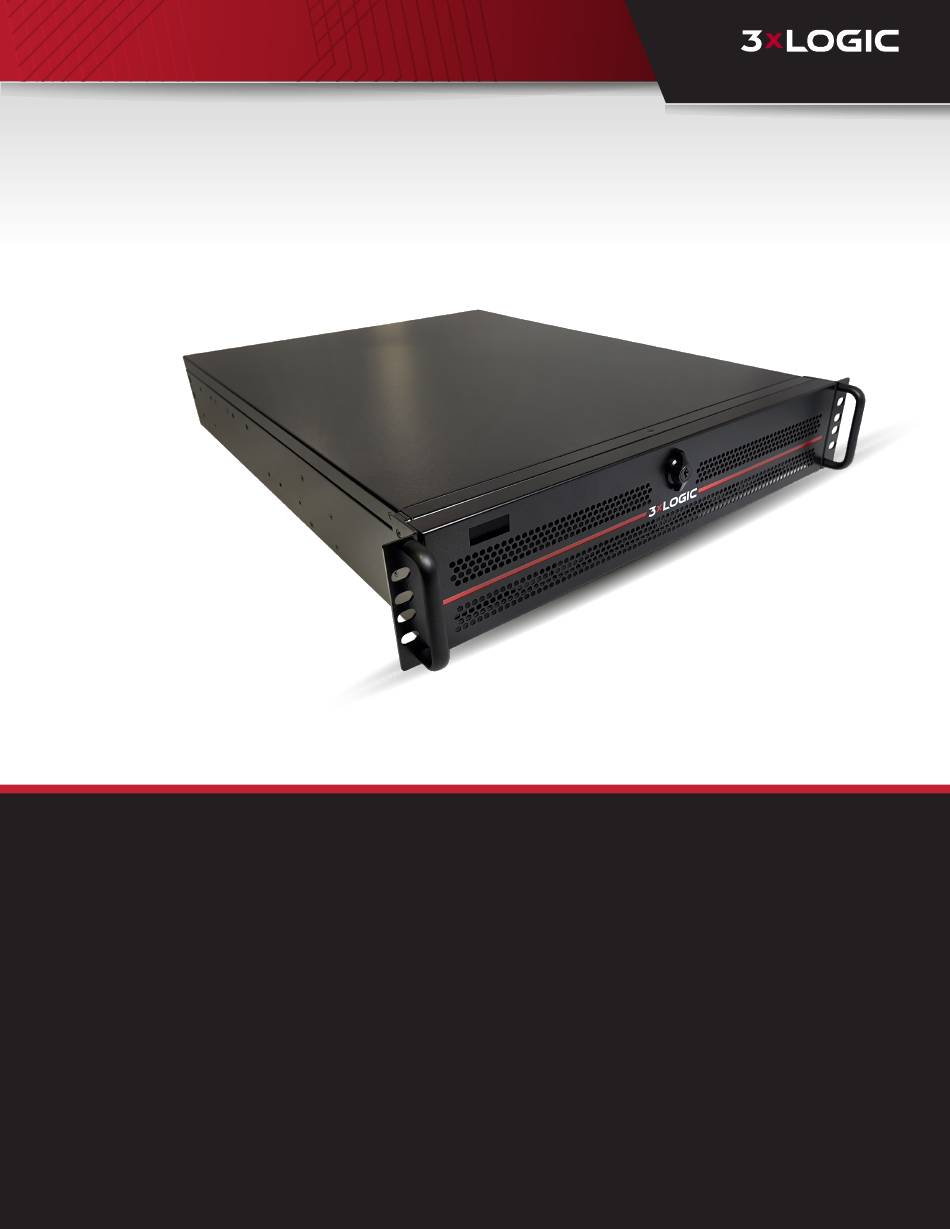

VIGIL NVR-2U-96CH
96-CHANNEL NETWORK VIDEO RECORDER
QUICK START GUIDE
V1.0.1
-
3XLOGIC, INC. | USA: 11899 EXIT 5 PARKWAY, SUITE 100 FISHERS, IN 46037 | UK: 15 COFTON RD, EXETER, EX2 8QW, UK |
EU: ELIMAENKATU 13B, 00520 HELSINKI, FINLAND
©2023 3XLOGIC, INC. ALL RIGHTS RESERVED. INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. 3XLOGIC AND THE 3XLOGIC AND VIGIL LOGOS ARE TRADEMARKS OF 3XLOGIC, INC. ALL OTHER TRADE-MARKS
ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS.
Advertisement
Table of Contents
Related Manuals for 3xLogic VIGIL NVR-2U-96CH
Summary of Contents for 3xLogic VIGIL NVR-2U-96CH
- Page 1 QUICK START GUIDE V1.0.1 3XLOGIC, INC. | USA: 11899 EXIT 5 PARKWAY, SUITE 100 FISHERS, IN 46037 | UK: 15 COFTON RD, EXETER, EX2 8QW, UK | EU: ELIMAENKATU 13B, 00520 HELSINKI, FINLAND ©2023 3XLOGIC, INC. ALL RIGHTS RESERVED. INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.
- Page 2 QUICK START GUIDE | NVR-2U-96CH COMPLIANCE 62368-1 CAN ICES-003 (A) / NMB-003(A) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 3 QUICK START GUIDE | NVR-2U-96CH 1 PRE-INSTALL AND SAFETY GUIDELINES 1.1 INTRODUCTION Note: Read all instructions before beginning any installation. The information in this manual outlines the recommended “Best Practices” for the installation of a server. Although this document is a guideline, failure to follow these recommendations, especially for environmental con- ditions, can cause unnecessary and costly problems.
-
Page 4: Power Source
QUICK START GUIDE | NVR-2U-96CH 1.2 POWER SOURCE A stable power source is essential for reliable and uninterrupted operation of the Point of Service Personal Com- puter (PC). The power supply is designed to support 100-240VAC @ 50-60Hz. Use an electrical outlet that is ded- icated to the PS and has the correct rating. - Page 5 QUICK START GUIDE | NVR-2U-96CH TEMPERATURE, HUMIDITY, AND ELEVATION 1. A well-maintained temperature and humidity is essential for proper operation. An environmentally con- trolled area is recommended. 2. Recommended operating temperature of the device is 4.5-35°C. 3. The ideal room humidity should not exceed 90% non-condensing relative. 4.
-
Page 6: Product Overview
QUICK START GUIDE | NVR-2U-96CH 2 PRODUCT OVERVIEW 2.1 PACKAGE CONTENTS MOUSE POWER CABLE KEYBOARD 2.2 OPERATING INFORMATION SPEC VALUE Voltage 115VAC/60Hz; 230VAC/50Hz Operating Environment Indoor Equipment Only Operating Temperature 40° to 95° Fahrenheit / 4.5° to 35° Celsius Humidity 20-90% RH 2.3 BEFORE YOU BEGIN Note: This product is to be used by an instructed person in a professional environment... - Page 7 The NVR will automatically power on and boot into a Wizard which will guide you through the con- figuration of your video recorder. ■ A USB drive containing the 3xLOGIC Support Environment is connected within the chassis. To access the Support Environment, simply boot to the drive. ■...
- Page 8 QUICK START GUIDE | NVR-2U-96CH BACK PART NAME FUNCTION Power Supply Power Supply Port PSU Switch On / Off Switch for Power Supply 2x Analog Audio Inputs Analog Audio In SERIAL PORT RS-232 VGA (D-Sub) VGA Video Out Display Port/ HDMI Out Display Port / HDMI Video Out AUDIO IN / OUT Audio In and Out, Mic Ports (3.5mm)
-
Page 9: Contact Information
QUICK START GUIDE NVR-2U-96CH 3 CONTACT INFORMATION 3xLOGIC has offices in Fishers, Indiana, USA and Exeter, UK. Please visit our 3xLOGIC website at www.3x- logic.com. Please contact us by e-mail at helpdesk@3xlogic.com (technical support), or using the following con- tact information: 3XLOGIC TECHNICAL SUPPORT: Toll Free:(877) 3XLOGIC ...
