Frequency Synthesizer
F-SCAN4
Firmware Version FS4 V1.0x
INSTRUCTION MANUAL
This symbol identifies the equipment as type B
Attention: CONSULT ACCOMPANYING DOCUMENTS
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-SCAN4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TB-Electronics F-SCAN4

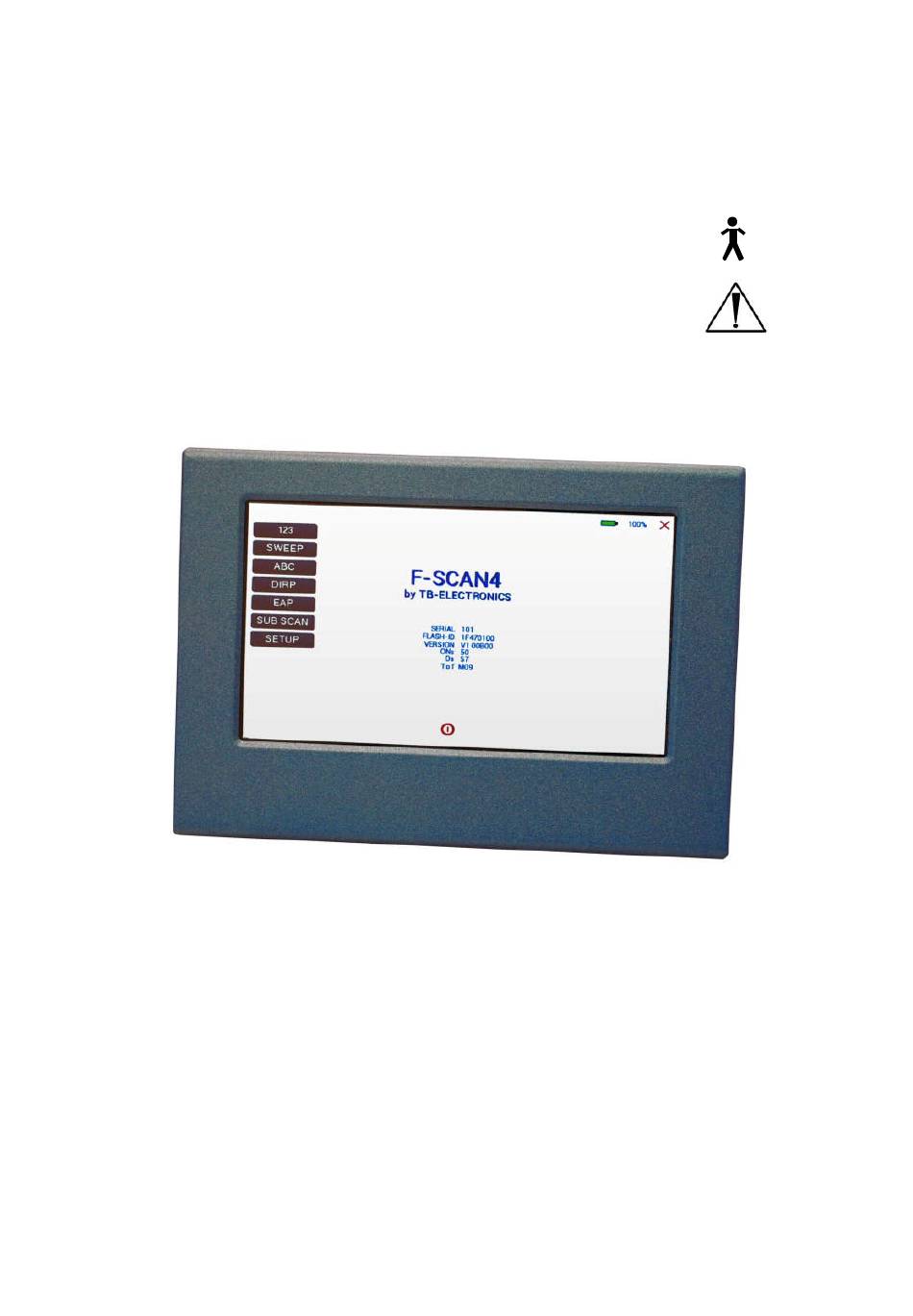

  • Page 1 Frequency Synthesizer F-SCAN4 Firmware Version FS4 V1.0x INSTRUCTION MANUAL This symbol identifies the equipment as type B Attention: CONSULT ACCOMPANYING DOCUMENTS - 1 -...
  • Page 2: Table Of Contents

    Signal forms delivered to Multi-signal-output port.................... - 7 - Factory settings............................- 8 - First steps to start F-SCAN4.......................... - 9 - The menu 123............................- 10 - How to select a program from the menu “123“....................- 11 - How to input a frequency value........................
  • Page 3: Warning And Notes

    F-SCAN4 be beneficial. Introduction The FREQUENCY SY NTHESIZ ER F-SCAN4 has been opt imized for stationary use. The device is the latest and most advanced member of the F-SCAN product f amily. The color touch screen, combined w ith the latest functional technology, offers a user friendly system w ith outstanding perf ormance.
  • Page 4: Osca The New Standard

    In order for the applicat ion to w ork ideally w ith an F-SCAN4, OSCA is being introduced for the first time. OSCA can be activated on different levels. You can choose betw een “OFF”, “SENSITIV E”, “STANDA RD” and “HIGH”;...
  • Page 5: The Shipment From The Factory Includes

    The shipment from the factory includes : F-SCAN4 w ith instruction manual FTB128  Wall charger FTB224  Stainless steel electrodes FTB202A  Application cable for electrodes FTB308  2 sets of self-adhesive pad-electrodes FTB041  DIRP sensor FTB303 ...
  • Page 6: Elements For Operation

    Elements for operation A touch on this icon switches the unit OFF. CON2: WIDE output port 15MHz Slot for ChipCard Mini-USB connector ON switch CON1: Multi-signal CON3: PowerPort output port - 6 -...
  • Page 7: Signal Forms Delivered To Multi-Signal-Output Port

    Signal forms delivered to Multi-signal-output port 10Vpp SINE (DC-OFFSET) SQUARE, 0-symmetrical, Full Wav e 0Vpp to 24Vpp SQUARE, permanent positive, Half Wav e 0Vpp to 12Vpp (DC-OFFSET) SMART, permanent positive, Half Wave 0Vpp to 12Vpp (DC-OFFSET), a high frequency covering the application frequency. - 7 -...
  • Page 8: Factory Settings

    Factory settings Language on screen: English or German Application time per frequency: 3:00 Minutes (adjustable betw een 0:30 and 59:59) Signal strength: 80% of maximum of 12Vpp (adjustable +/- in steps of 1%) Signal form: AUTO (Sine, Square Full Wave, Half Wave, SMART and OFF selectable).
  • Page 9: First Steps To Start F-Scan4

    The opening screen, as show n above, offers a menu of 5 or 6 options. One has to be selected w ith the finger to continue the setup of the F-SCAN4 for operation. The menu button EAP is enabled only if the device is purchased w ith the EAP option.
  • Page 10: The Menu 123

    The menu “123” must be used to create and run individual programs w ith the ability to enter random frequencies in the range from 0.01 Hertz up to 15 MHz (Megahertz). The F-SCAN4 offers 100 storage positions f or programs of between 1 and 50 frequencies. The end of each program is a value of 0 Hertz (Hz).
  • Page 11: How To Select A Program From The Menu "123

    A touch on the icon “123“ opens the above menu: The activated button turns green 123. Displayed are: - the program number “1“ - the program name “DIRP Test“ - the position of the frequency w ithin the program – betw een 1 and 50 – here ”1“. The left and right arrow s can be touched to move to other frequency values of the program.
  • Page 12 Exa mple for copying the entry prom progra m 1 into program 5: touch program line 1 (here DIRP Test) and remain f or 2 seconds when “copy-paste-cut” sub menu opens, release and press “COPY”. Select another program line, for example “5:” and keep it touched until the sub menu opens. Touch “...
  • Page 13: How To Input A Frequency Value

    How to input a frequency value The arrow s in the menu “123“ are used to select the position (1 to 50) for the new frequency value to be inserted in the opened progra m. Next, the present frequency value has to be touched A numerical key block opens and the new value can be entered.
  • Page 14 WOBBLE If WOBBLE is activated the softw are asks for a value to be used to sw ing the signal above and below the target frequency. A value of 0 deactivates the feature. The background color of the icon changes to green when activated.
  • Page 15: How To Start, Pause, Or Stop A Program

    Current indicator and OSCA The bottom bar graph displays the measured value of the electrical current w hich flows through the output at connector CON1. The current flow for non-linear “loads” is dependent from the electrode type the frequency the w ave form the selected amplitude This value gives a real feedback over the electrical “load”...
  • Page 16: The Menu Sweep

    The menu SWEEP A touch on the icon “SWEEP“ opens the screen to start the broad band frequency sw ing “SWEEP“. SWEEP can be used to sw ing for a limited time (standard 20 minutes) through a broad band of frequencies betw een a low er limit “Fmin”...
  • Page 17: The Menu Dirp

    The menu DIRP A touch on the button DIRP opens the screen for the automatic resonance analysis “DIRP“. “DIRP” stands for: Dual Integration Resonance Procedure “DIRP” registers resonances to frequencies applied in steps of “DELTA F” w ithin the limits betw een a lower value “Fmin”...
  • Page 18 Exa mple of a “DIRP“ analysis recalled from memory: The display on the screen shows all details of the recalled analysis, including the settings for “Fmin”, “Fmax”, “DELTA F” and the Clipping Level “CL = 13” (the violet line), w here it separates 10 HITS ( measured values of resonances) from the remaining graph.
  • Page 19: How To Prepare For A Dirp And Run It

    How to prepare for a DIRP and run it The settings show n on page 18 of this manual can be used to perf orm a DIRP analysis in the frequency range betw een 80000 Hz and 560000 Hz: Attach the DIRP sensor follow ing the instructions shipped w ith it. Plug the CINCH connector of the application cable into the device’s output and connect the red w ire to the cylinder.
  • Page 20: Eap (Electro-Acupuncture) Measurements

    EAP (ELECTRO-ACUPUNCTURE) measurements THE EA P- CAPABILITY IS AN OPTIONAL FEATURE TO BE USED BY WELL TRA INED SPECIALISTS ONLY. THE SOFTWARE NEEDED TO OPERA TE EA P REQUIRES A RELEASE CODE FROM THE FACTORY OR A SAL ES POINT. A STYLUS SET WITH CABLE MUST BE PURCHASED (OPTION “FTB211“).
  • Page 21: How To Complete An Eap-Table

    55, w ill be show n in red in the table. In the SETUP menu it is possible to adjust the sensitivity of the stylus. This allows the user to set the F-SCAN4 to the EA P sensitivity w hich is w ell know n from other manufacturer.
  • Page 22: The Menu Sub Scan

    The menu SUB SCAN A touch on the button SUB SCAN opens the screen for the automatic resonance analysis “DIRP“ w ith a specific substance scanning. The substance scanning is performed according to the so called C-LIST w hich means Clark List w hich includes the pathogen list w ith associated frequencies. The list is memorized in a nonvolatile memory and simple procedures f or computer experts to dow nload updated or individual lists exist.
  • Page 23 All selected group-entries are indicated in the list in orange. All en tries can be view ed by using the vertical scrollbar or arrows up/down. To unselect a group, just press the selection again. The values f or Fmin, Fmax and Delta F w ill be set automatically according to the selected group. A touch on any of these buttons w ill have no effect.
  • Page 24: The Menu Settings

    The menu SETTINGS A touch on the SETUP button opens a menu for global settings. All sett ings w ill be memorized in a nonv olatile memory of the device. BRIGHTNESS set this slider to the desired backlight LANGUAGE a touch on the flag sw itches to the next language w hich is pre-installed into the device. Languages are English, Ger man, Czech, Polish, Hungarian and Sw edish.
  • Page 25 AUTO-R A touch on the icon sw itches this unique function ON or OFF. When sw itched OFF, the amplitude of SQUA RE w ave signals and SINE w ave signals w ill be for all frequencies of a program as assigned during the setup. When sw itched ON, the microcontroller calculates the signal strength of SQUARE w aves on the base of each frequency value follow ing a physiological algorithm.
  • Page 26: Chipcard Option

    F-SCA N COMPA CT. - Touch the second line to overwrite the 100 program positions of the F-SCAN4 w ith the data from an F- SCA N COMPA CT. DIRP- or EA P-data sets previously stored in program positions in the F-SCAN4 w ill be lost.
  • Page 27: How To Format, Integrate And Use Programs From Other Sources

    “ ; “. A carriage-return-line-feed = 13-10 must separate the program lines. As soon as the list of frequency programs is generated and transf erred to the F-SCAN4, it can be accessed on the unlocked menu “ABC”. Few er properties than in the menu “123“ can be assigned to individual frequency values here. A change of the timer w ill be valid for all frequencies stored in the memory block of 460 programs.
  • Page 28: How To Start, Pause, Or Stop A Program

    How to start, pause, or stop a program Touch the icon STA RT to start a program. Touch the icon PA USE to initiate a pause. Touch the icon STOP to end a running program. Any attempt to change the menu during a progra m is running w ill cause the system to return to menu “ABC” immediately.
  • Page 29: Technical Data

    Technical data Case Painted plastic enclosure Dimensions 205 mm x 140 mm x 30 mm Color touch scre en 154 mm x 85 mm; 800 x 480 pi xel Min. frequency selectable 0.01Hz Frequency stability 30 ppm Memor y 100 open positions for up to 50 frequenc y values including indi vidual properties assigned to each value.
  • Page 30: Declaration Of Conformity / Konformitätserklärung

    CH-9443 Widnau dass das folgende Pr odukt mit der Bez eichnung/that the followi ng product wit h the mar king F-SCAN4 Frequency Synthesizer in alleiniger Verantwortung auf dass sic h diese Erklärung bezieht mit der folgenden Norm übereins timmt: dec lare under our sol e responsibility to whic h this declaration relates is in conformity with the followi ng standard:...
