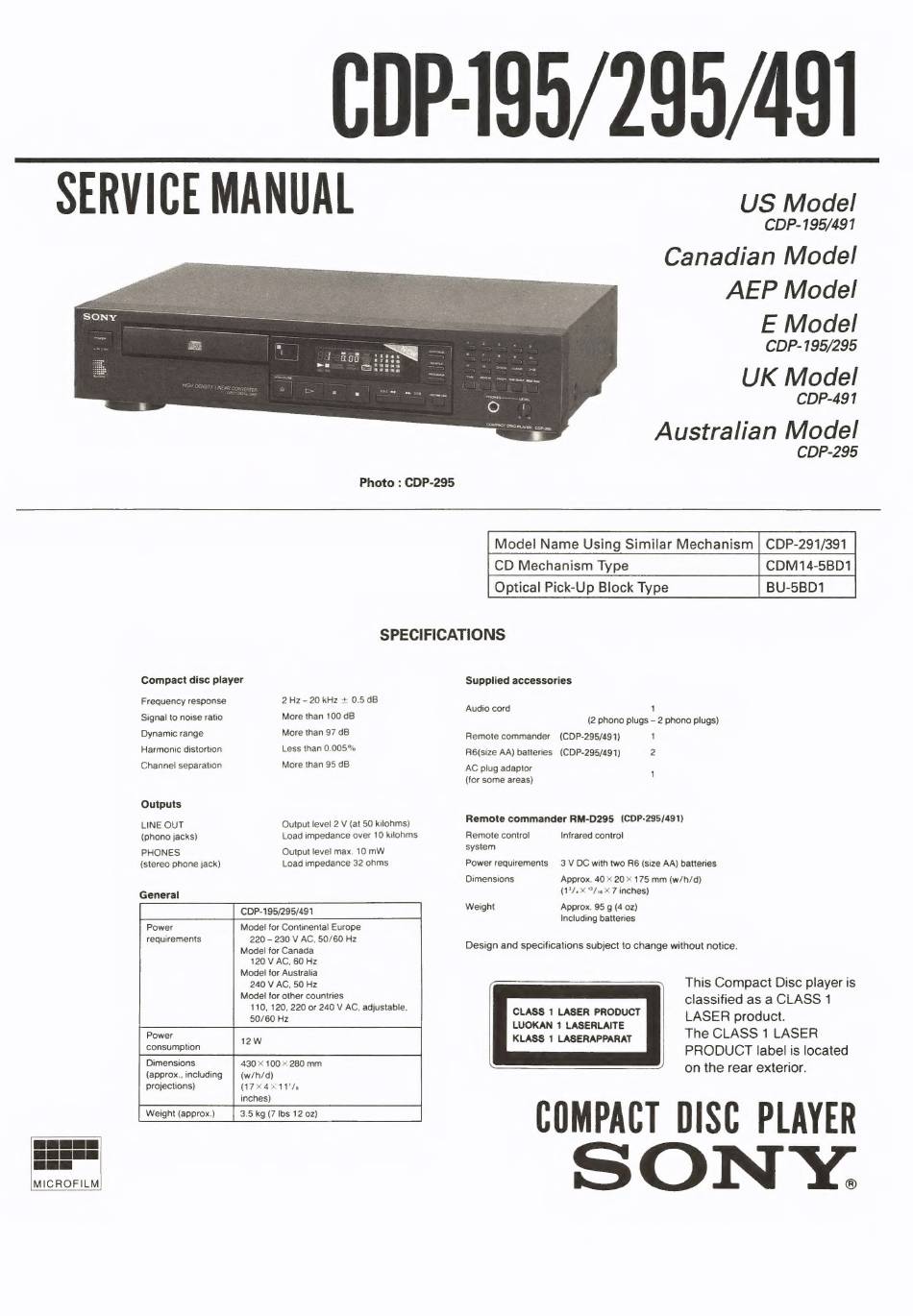

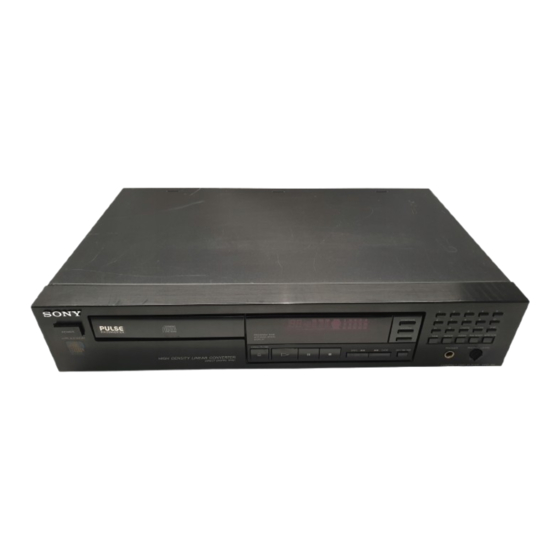

CDP-193/293/491
SERVICE MANUAL
Photo : CDP-295
MICROFILM
US Model
CDP-195/491
Canadian Model
AEP Model
E Model
CDP-195/295
UK Model
CDP-491
Australian Model
CDP-295
Model Name Using Similar Mechanism | CDP-291/391
CD Mechanism Type
CDM14-5BD1
Optical Pick-Up Block Type
BU-5BD1
SPECIFICATIONS
Compact disc player
2Hz-20 kHz
+ 0.5 dB
More than 100 dB
More than 97 dB
Less than 0.005%
More than 95 dB
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
Outputs
LINE OUT
Output level 2 V (at 50 kilohms)
(phono jacks)
Load impedance over 10 kilohms
PHONES
Output level max. 10 mW
(stereo phone jack)
Load impedance 32 ohms
General
[sc
P-195/295/491
Power
Model for Continental Europe
requirements
220 - 230 V AC, 50/60 Hz
Model for Canada
120 V AC, 60 Hz
Model for Australia
240 V AC, 50 Hz
Model for other countries
110, 120, 220 or 240 V AC, adjustable,
50/60 Hz
consumption
Dimensions
430 * 100 x 280 mm
(approx., including
(w/h/d)
projections)
(17X4%11'/8
inches)
Weight (approx.)
3.5 kg (7 Ibs 12 0z)
Supplied accessories
Audio cord
1
(2 phono plugs - 2 phono plugs)
Remote commander
(CDP-295/491)
1
R6(size AA) batteries
(CDP-295/491)
2
AC plug adaptor
1
(for some areas)
Remote commander RM-D295
(CDP-295/491)
Remote control
Infrared control
system
Power requirements
3 V DC with two R6 (size AA) batteries
Dimensions
Approx. 40 x 20
175 mm (w/h/d)
(19/4
"°/16 X 7 inches)
Weight
Approx. 95 g (4 0z)
Including batteries
Design and specifications subject to change without notice.
This Compact Disc player is
classified as a CLASS 1
LASER product.
The CLASS 1 LASER
PRODUCT label is located
on the rear exterior.
COMPACT DISC PLAYER
SONY.
CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
