Summary of Contents for Bartell Global P550Y

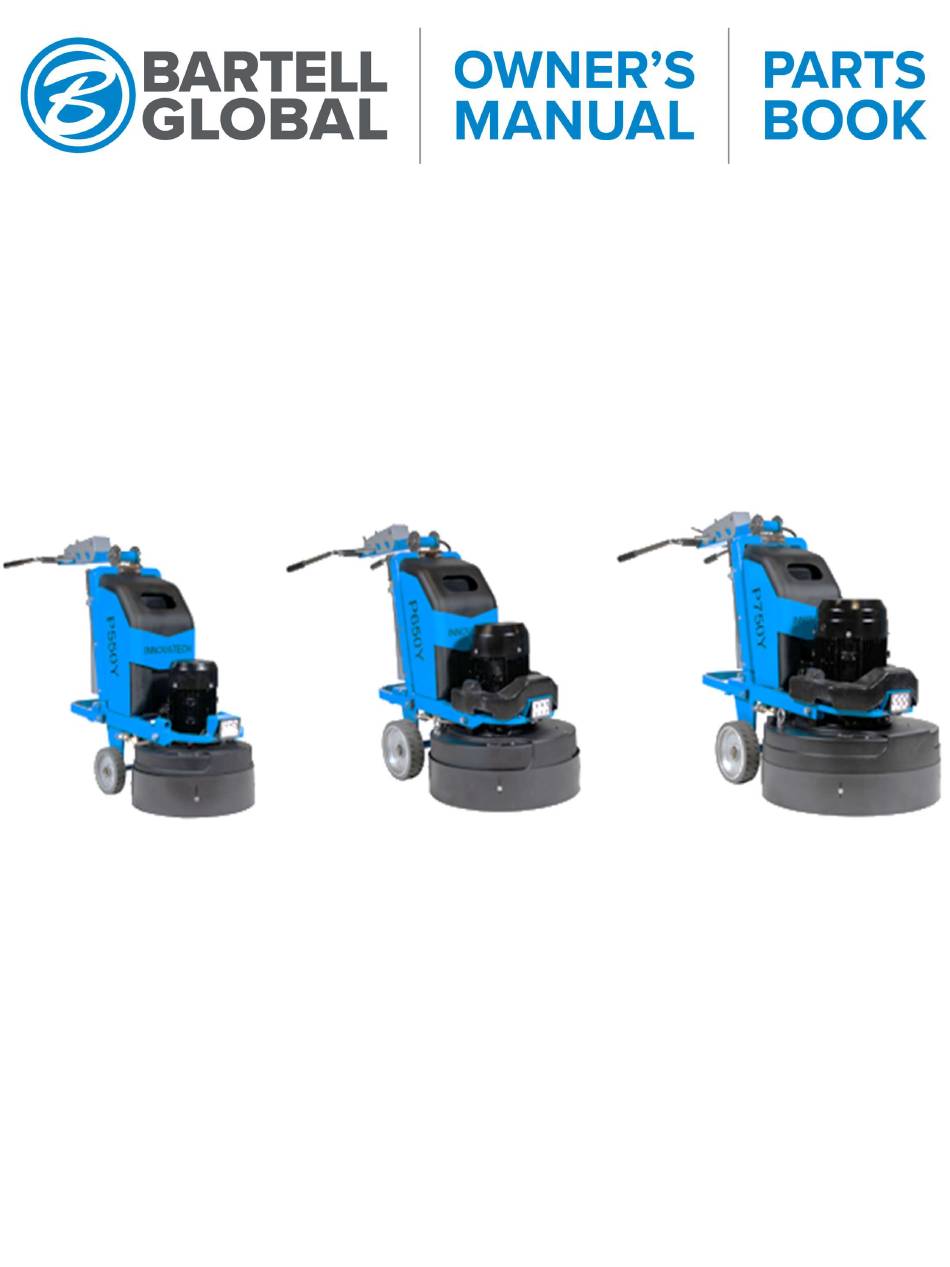

- Page 1 Floor Grinders P550Y / P650Y / P750Y Doc. # OIPB-I02003 Orig. Rel – 10/18 Curr Rev. – 02...
- Page 2 Bartell Morrison Inc. unless such copying is permitted by federal copyright laws. ADDRESS INQUIRIES OR REFERENCE PERMISSIONS CARE OF: Bartell Global, 170 Traders Blvd E., Mississauga, Ontario, Canada, L4Z REV. DATE...
- Page 3 Y Grinder OIPB-I02003 Owner’s Manual SAFETY PRECAUTIONS DANGER EXPLOSION HAZARD Never operate the machine in an explosive atmosphere, near combustible materials, or where ventilation does not clear exhaust fumes. WARNING BURN HAZARD Never come into contact with the engine or muffler when engine is operating or shortly after it is turned off.
-
Page 4: Table Of Contents
Y Grinder OIPB-I02003 Owner’s Manual TABLE OF CONTENTS ABOUT THIS MANUAL IMPORTANT SAFETY INSTRUCTIONS AFETY UIDE RECAUTIONS TECHNICAL SPECIFICATIONS STARTUP PREPARATION OPERATING INSTRUCTIONS MAINTENANCE TROUBLESHOOTING PARTS BREAKDOWN WARRANTY DECLARATION OF CONFORMITY... -
Page 5: About This Manual
This Manual contains the information and procedures to assist you to operate and maintain the P550Y, P650Y and P750Y floor grinder safely and correctly. Read this Manual before you operate or service the equipment. If you need additional information or assistance, please get in touch with our Customer Service Department: Innovatech Products &... -
Page 6: Technical Specifications
Y Grinder OIPB-I02003 Owner’s Manual 3. Technical Specifications Model P550Y P650Y P750Y Voltage 220V 220V 480V Motor 5hp, 3.7Kw 7.5hp, 5.6Kw 15hp, 11.2Kw Current 17.6A 22.3A Phase 1-Phase 1-Phase 3-Phase Inverter 5HP, 3.7Kw 15HP, 11.2Kw 15HP, 11.2Kw Frequency 50/60HZ 50/60HZ... -
Page 7: Operating Instructions
Y Grinder OIPB-I02003 Owner’s Manual 5. Operating Instructions Before starting: 1. Ensure the power switch is in the off position. 2. Check the surrounding area for any loose material including bolts/screws/nails that could get caught in the machine. 3. Lean the machine backwards until it is safely resting on the ground to attach the grinding tools. -
Page 8: Troubleshooting
Y Grinder OIPB-I02003 Owner’s Manual 7. Troubleshooting Problem Potential Cause Solution Low current Check power connections Low current Undersized power cable Loose connections Check power connections Machine stops during operation Water damage to connections Check power connections Low voltage Turn off power, wait 3 min High voltage Turn off power, wait 3 min Inverter Fault Codes... - Page 9 Y Grinder OIPB-I02003 Owner’s Manual E0007 Stall • Bus voltage is too high • Please check power input or overvoltage • The setting of stall the function of brake overvoltage is too low. • Set the value of stall overvoltage properly E0008 Fault of power •...
- Page 10 Y Grinder OIPB-I02003 Owner’s Manual E0013 Contactor is not • Contactor fault • Replace the contactor actuated • Fault of control circuit • Please seek technical support E0014 Fault of current • Current detection circuit is • Please contact the supplier for detection circuit damaged repairing...
- Page 11 Y Grinder OIPB-I02003 Owner’s Manual E0019 Motor overload • Improper setting of V/f curve • Adjust the setting of V/f curve • Mains supply voltage is too (F09.00-F09.06) • Check the power input • Normal motor runs for a long •...
- Page 12 Y Grinder OIPB-I02003 Owner’s Manual Page Intentionally Left Black...
-
Page 13: Parts Breakdown
Y Grinder OIPB-I02003 Owner’s Manual 8. Parts Breakdown... - Page 14 Y Grinder OIPB-I02003 Owner’s Manual 01. P550Y Grinder Assembly Item No. Part Number Description Qty. 832-0022 P550Y Plastic Shroud 832-0006 Rubber Mount 35003 P550Y Tooling Plate 832-0010 P550Y Wheel 832-0011 Water Valve 832-0013 P550Y Inverter 832-0009 P550Y Handle Adjustment Screw 832-0025 P550Y Motor, 3.7 kW...
- Page 15 Y Grinder OIPB-I02003 Owner’s Manual 02.P550Y Control Box Item No. Part Number Description Qty. 832-0028 Operator Handle 550Y 832-0004 Speed Button 832-0002 Instruction Button- Set of 2- Red/Green 832-0003 Reversible Button 832-0016 Inverter Display 832-0001 Without Inverter Display...
- Page 16 Y Grinder OIPB-I02003 Owner’s Manual 03.P550Y Head Flange Assembly Item No. Part Number Description Qty. 35003 P550 Tooling Plate 35832-0006 Rubber Mount 35832-0050 Upper Flange 35832-0051 Lower Flange 35832-0069 Key, 8mm x 7mm x 17mm 35832-0070 Washer, 17mm ID, 45mm OD 12930 Washer, 7/16”...
- Page 17 Y Grinder OIPB-I02003 Owner’s Manual 01. P650Y Grinder Assembly Item No. Part Number Description Qty. 832-0023 P650Y Plastic Shroud 832-0006 Rubber Coupler 35004 P650Y Tooling Plate 832-0012 P650Y Wheel 832-0011 Water Valve 832-0014 P650Y Inverter 832-0009 P650Y Handle Adjustment Screw 832-0026 P650Y Motor, 7.5 kW 832-0038...
- Page 18 Y Grinder OIPB-I02003 Owner’s Manual 02.P650Y Control Box Item No. Part Number Description Qty. 832-0029 Operator Handle 650Y 832-0004 Speed Button 832-0002 Instruction Button- Set of 2- Red/Green 832-0003 Reversible Button 832-0016 Inverter Display 832-0001 Without Inverter Display...
- Page 19 Y Grinder OIPB-I02003 Owner’s Manual 03.P650Y Head Flange Assembly Item No. Part Number Description Qty. 35004 P650/750 Tooling Plate 35832-0006 Rubber Mount 35832-0050 Upper Flange 35832-0051 Lower Flange 35832-0069 Key, 8mm x 7mm x 17mm 35832-0070 Washer, 17mm ID, 45mm OD 12930 Washer, 7/16”...
- Page 20 Y Grinder OIPB-I02003 Owner’s Manual 01.P750Y Grinder Assembly Item No. Part Number Description Qty. 832-0024 P750Y Plastic Shroud 832-0005 Rubber Mount 35004 P750Y Tooling Plate 832-0012 P750Y Wheel 832-0011 Water Valve 832-0015 P750Y Inverter 832-0009 P750 Handle Adjustment Screw 832-0027 P750Y Motor, 11 kW 832-0039 P750Y Metal Cage...
- Page 21 Y Grinder OIPB-I02003 Owner’s Manual 02.P750Y Control Box Item No. Part Number Description Qty. 832-0030 Operator Handle 750Y 832-0004 Speed Button 832-0002 Instruction Button- Set of 2- Red/Green 832-0003 Reversible Button 832-0016 Inverter Display 832-0001 Without Inverter Display...
- Page 22 Y Grinder OIPB-I02003 Owner’s Manual 03.P750Y Head Flange Assembly Item No. Part Number Description Qty. 35004 P650/750 Tooling Plate 35832-0062 Lower Flange 35832-0005 Rubber Mount 35832-0060 Spring 35832-0061 Upper Flange 10955 HHCS, M12-1.25 x 40mm 12930 Washer, 7/16” 35201 FHSCS, M10-1.5 x 25mm 20366 Washer, 18mm ID x 50mm OD 35832-0071...
- Page 23 Y Grinder OIPB-I02003 Owner’s Manual Wiring Diagram P550,P650 1PHASE...
- Page 24 Y Grinder OIPB-I02003 Owner’s Manual Wiring Diagram P750 3PHASE...
-
Page 25: Warranty
Y Grinder OIPB-I02003 Owner’s Manual 9. Warranty Innovatech warrants to the original buyer, for a period of one (1) year or 300 operating hours (whichever comes first) from the date of delivery, that the Equipment is free from defects in materials and workmanship and that the Equipment conforms to the operating specifications supplied with the Equipment. -
Page 26: Declaration Of Conformity
Y Grinder OIPB-I02003 Owner’s Manual DECLARATION OF CONFORMITY CERTIFICAT DE CONFORMITÉ / GELIJKVORMIGHEIDS CERTIFICAAT / DECLARACIÓN DE CONFORMIDAD / DECLARAÇÃO DE CONFORMIDADE / DICHIARAZIONE DI CONFORMITA Innovatech Products 4701 Allmond Ave Louisville, Kentucky, USA 40209 Tel: (425) 405-9100 Toll Free: (800) 267-6682 Declare under our sole responsibility that the product to which this declaration Fax: (425) 405-9108... - Page 27 Y Grinder OIPB-I02003 Owner’s Manual Technical Characteristics: Caractéristiques techniques: Technisch gegevens: Características Técnicas: Caracteristicas Técnicas: Qualitàs di tecnico: Model Modéle MachineSerial Number Engine Serial Number Weight Type Numéro de Série machine Numéro de Série moteur Masse Modelo Serienummer machine Serienummer motor Gewicht Modelo Máquina número de série...
