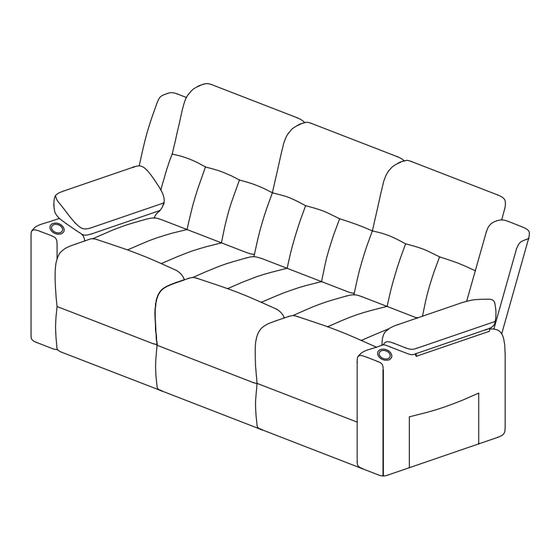

SOFA
Assembly Instruction
SKU:1063040003B/1063040004B/1063040005B
/1063040006B
NOTE:
The production with FOUR
PACKAGES,come with FOUR
TRACKINGS , may not be
delivered at the same time.
Any question please feel free
to contact us:
support@merluxyhome.com
TEL:901-347-2181
We will provide further
assistance within 24 hours.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Merluxy 1063040003B
Summary of Contents for Merluxy 1063040003B
- Page 1 SOFA Assembly Instruction SKU:1063040003B/1063040004B/1063040005B /1063040006B NOTE: Any question please feel free to contact us: support@merluxyhome.com The production with FOUR TEL:901-347-2181 PACKAGES,come with FOUR TRACKINGS , may not be We will provide further delivered at the same time. assistance within 24 hours.
- Page 2 Safety and care advice Important-Please read these instructions fully before starting assembly Thanks for your purchase. Before the assembly please follow the instructions to check if all the spare parts and screws are intact. Considering the size and weight of the sofa,we Please do not throw away any of the packaging or the recommend two adults to assemble the sofa,on a instruction until you have checked all the components...
- Page 3 BOX1 BOX2 Left position Left position Armrest(L) Functional Seat Frame(L) Back Frame (L) Backrest Cover (L) Armrest Pad(L) Right position Wing(L) Armrest(R) Washer Bolts 6*30 Allen Key Latch...
-
Page 4: Intermediate Position
BOX3 BOX4 intermediate position Right position Functional Seat Frame Functional Seat Frame(R) Back Frame (R) Back Frame Armrest Pad(R) Backrest Cover Wing(R) Right position Washer 6*30 Bolts Backrest Cover(R) Allen Key Latch... -
Page 5: Hardware Parts
Assembly Instruction of Sofa Hardware parts M6*18 M6*30 Allen Key Washer Bolts Structural accessories Latch Main structure accessories A-1 1pc A-3 1pc A-4 1pc Functional Seat Frame(L) Back Frame(L) Armrest(L) Armrest Pad(L) A-5 1pc A-6 1pc Backrest Cover(L) Wing(L) - Page 6 Assembly Instruction of Sofa Step 1 Step 2 Step 1 Step 2 Step 3 Insert A-4 into A-5 before sticking Velcro Step 1 Step 2 Move the fabric on the velcro for Zipper it up fixing Move the fabric on the velcro for Zipper it up fixing...
- Page 7 Assembly Instruction of Sofa Step 6 Step 5 Move the fabric on the velcro for fixing Step 8 Step 7 Pull the loop up...
- Page 8 Assembly Instruction of Sofa Main structure accessories B-1 1pc B-2 1pc B-3 1pc Functional Seat Frame Back Frame Backrest Cover...
- Page 9 Assembly Instruction of Sofa Step 1 Step 2 Insert B-2 into B-3 before sticking Velcro Take out of B-3 and C-5 from the bottom of B-1 Move the fabric on the velcro for fixing Zipper it up Step 3 Step 4 Move the fabric on the velcro for fixing...
- Page 10 Assembly Instruction of Sofa Hardware parts M6*18 M6*30 Allen Key Washer Bolts Structural accessories Latch Main structure accessories C-4 1pc C-1 1pc C-3 1pc Functional Seat Frame(R) Armrest Pad(R) Back Frame (R) Armrest(R) C-5 1pc C-6 1pc Backrest Cover (R) Wing(R)
- Page 11 Assembly Instruction of Sofa Step 1 Step 2 Insert C-4 into C-5 before sticking Velcro Step 1 Step 2 Zipper it up Zipper it up Move the fabric on the velcro for Move the fabric on fixing the velcro for fixing Step 3 Step 4...
- Page 12 Assembly Instruction of Sofa Step 6 Step 5 Move the fabric on the velcro for fixing Step 7 Pull the loop up...
- Page 13 Assembly Instruction of Sofa Assemble from right to left. Step 2 Step 1...
- Page 14 Assembly Instruction of Sofa...
