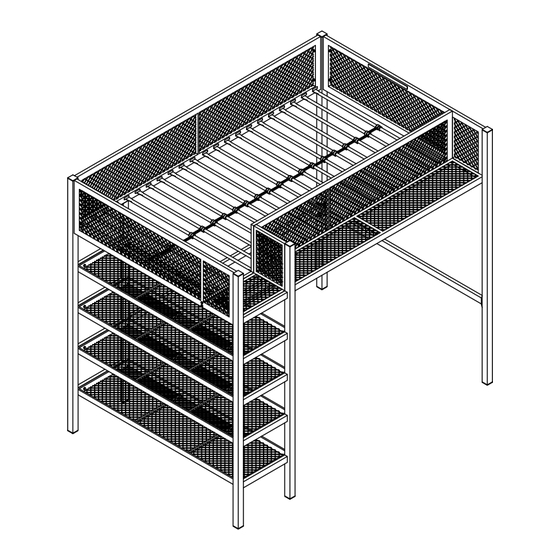

Metal loft bed
Hide thumbs

Advertisement

Table of Contents

Weight Limit:
200 Lb / 91 Kg for bed
50 Lb / 23 Kg for shelves
J.Z. - 2019/4/4
2014 Dorel Home Products All Rights Reserved
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4189129WE
Metal Loft Bed
Twin
Lot Number
B344189129WE00
White
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4189129WE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DHP 4189129WE

Summary of Contents for DHP 4189129WE

  • Page 1 Metal Loft Bed Twin White Weight Limit: Thank you for purchasing from DHP! 200 Lb / 91 Kg for bed 50 Lb / 23 Kg for shelves DO NOT RETURN TO THE STORE ! If parts are missing or damaged, we will gladly ship your replacement parts free of charge.

  • Page 2: Warranty Information

    Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of Work in a spacious area and near where the unit will be used, preferably on a original purchase.
  • Page 3 Parts Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Ladder Post Post Post Ladder Panel Check Box to identify the parts and ensure that T977730 T977710 T977720...
  • Page 4 Parts Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Connector Bar Connector Bar Slats Check Box to identify the parts and ensure that T977830 T977820 T922100...

  • Page 5: Hardware Pack

    Hardware Pack Hardware Pack #: T4189429WE-00 5/16" X 3/4" 1/4" X 1" X 16 1/4" X 1 5/16" X 12 1/4" X 2 3/16" 5/16" X 2 1/4" X 12 Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
  • Page 6 Step 1 1.1 Attach I to A with 1.2 Attach I to B with Label on I should be oriented towards upside and inside.
  • Page 7 Step 2 2.1 Attach E to B/C with 2.2 Attach E to B with The slot of slats should be located in the inside of the bed and at the bottom of guardrail.
  • Page 8 Step 3 Perspective is rotated from this step. 3.1 Attach I1 to C with 3.2 Attach I1 to D with Label on I should be oriented towards upside and inside.
  • Page 9 Step 4 4.1 Attach F to I with 4.2 Attach F to I1 with...
  • Page 10 Step 5 5.1 Attach K to A with 5.2 Attach K to F/I1 with Please orient the shelf with the mesh recessed on underside.
  • Page 11 Step 6 6.1 Attach S to A/F with 6.2 Attach S to K with...
  • Page 12 Step 7 Attach T to B/C and J to C/D with...
  • Page 13 Step 8 Please orient the shelf with the Attach H x 4 to A/B with mesh recessed on top side. X 16...
  • Page 14 Step 9 9.1 Insert O into E and F as illustrated. 9.2 Lock O into place with Y.
  • Page 15 Step 10 10.1 Press W onto the middle of O as illustrated. 10.2 Press Q onto W alternating left and right as illustrated. 10.2 10.1...

  • Page 16: Helpful Hints

    Do not step on the mesh location. Your DHP furniture can be disassembled and reassembled to move. Clean the product with a soft damp cloth. DO NOT use harsh chemicals or abrasive cleaners.
  • Page 17 Do not use substitute parts. Contact the manufacturer or dealer for replacement parts. Replacement parts, including additional guardrails, may be obtained from DHP by contacting customer service at 1800-267-1739. Use of a night light may provide added safety precaution for a child using the upper bunk.
  • Page 18 Trabaje en un rea espaciosa y cerca de donde su producto ser utilizado, preferiblemente sobre una alfombra o utilice el cart n del empaque para proteger su DHP garantiza que este producto est libre de defectos de f brica en la mano de obra piso y su producto.
  • Page 19 Partes Instrucciones Paso 1 Piezas de reemplazo, visite www.dhpfurniture.com/spa/replacement-parts 1.1 Una I con A con 1.2 Una I con B con Todo se incluye en 1 caja grande! Paso 2 Hay 1 caja(s) interna(s) que incluyen los componentes necesarios para 2.1 Una E con B/C con completar este ensamblaje.
  • Page 20 Estante: 50 lbs / 23 kgs. Mueva sus muebles nuevos con cuidado, con dos personas levantando y llevando el aparato a su nueva ubicaci n. Sus muebles DHP se pueden desmontar y volver a ensamblar en caso de Precauc on mudanza.

  • Page 21: Avant De Commencer L'assemblage

    Travailler dans un endroit spacieux et pr s du lieu o l'unit sera utilis e, pr f rablement sur un tapis, ou sur un morceau de l'emballage pour prot ger le DHP garantit que ce produit est exempt de tout vice de mat riaux et de fabrication et plancher et le produit.
  • Page 22 Pi ces Instructions tape 1 Pi ces de rechange, visitez www.dhpfurniture/fre/replacement-parts 1.1 Attacher avec Tout dans 1 grosse bo te! 1.2 Attacher avec tape 2 Il y a des bo tes int rieures qui contiennent les composants pour completer 2.1 Attacher avec l'assemblage.

  • Page 23: Conseils Utiles

    Interdire d'avoir plus d'une personne sur le lit du haut. Utilisez toujours l' chelle pour monter ou descendre au lit du haut. Ne substituez pas de pi ces. Communiquez avec DHP pour obtenir des pi ces de rechange. Les pi ces de rechange, y compris les garde-corps suppl mentaires, peuvent tre obtenues aupr s de DHP en contactant le service client le au 1800-267-1739.
