© 2024
Order #XXXXX
Table Top
Black
Bolt
Post
Base
Bolt
Base
MOD-1472 Charging Conference Table
Steps:
1) Connect bases to posts, using bolts.
2) Route cord from table top through post and base.
3) Connect table top to posts with fixed brackets, using black bolts.
Post
Bolt
UNDERSIDE VIEW
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

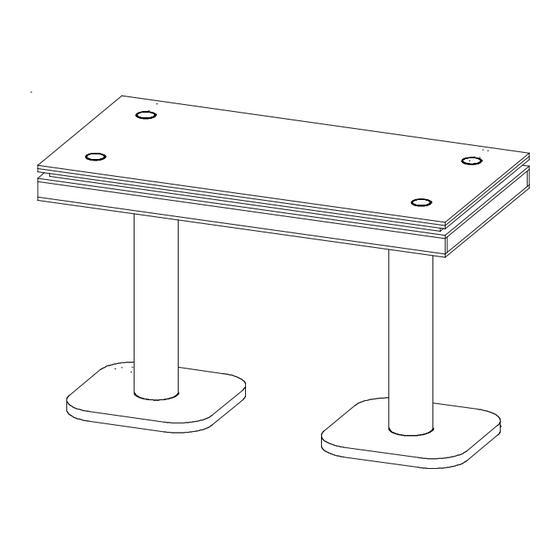

Completed Assembly
Advertisement
Related Manuals for InCharg MOD-1472
Summary of Contents for InCharg MOD-1472
- Page 1 © 2024 Order #XXXXX MOD-1472 Charging Conference Table Steps: Table Top 1) Connect bases to posts, using bolts. 2) Route cord from table top through post and base. 3) Connect table top to posts with fixed brackets, using black bolts.
- Page 2 © 2024 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
- Page 3 © 2024 Order #XXXXX Crate Packing Retain all packing materials. DO NOT DISCARD. CRATE PACKING MOD-1472 Crate 1 of 1...
