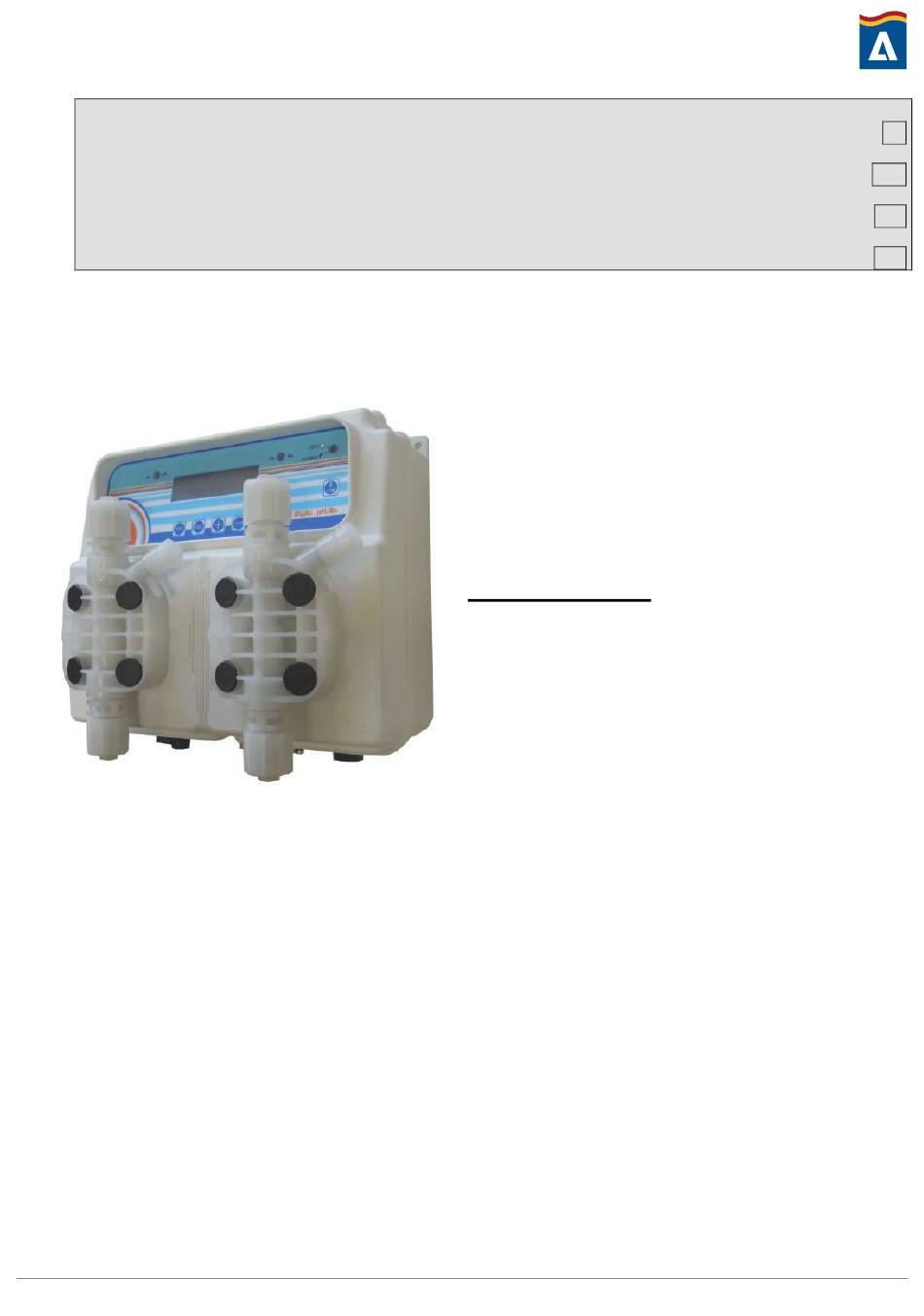

- Page 1 MANUALE DI PROGRAMMAZIONE IT PROGRAMMING INSTRUCTIONS UK MANUEL DE RÉGLAGE FR MANUAL DE REGULATIÓN ME –DUAL- PH/CL atecpool.com...
-
Page 2: Frontal Panel Description
G - Level probe connector (3 and 4 contacts) for CL pump. H - Flow sensor connector (3 and 4 contacts). I - Alarm output connector (3 and 4 contacts); NORMALLY OPEN OPTIONAL L - Level probe connector (3 and 4 contacts) for pH pump. atecpool.com... -
Page 3: Language Selection
Push and quickly release CAL button and then pressing + and – buttons select the language choice “Language Selection”. Push CAL to enter the language submenu and select “ English” by pressing + or - . Push CAL to confirm the choice and ESC to go back to measuring. DELAY START atecpool.com... - Page 4 WHAT IS IT? The password is a number (from 0 to 255) that allows to block the “Operation Type “ programming. (submenu: “pH Operation Type” and “Cl Operation Type” ). All other settings are possible including pH and Cl probe calibrations. atecpool.com...
- Page 5 During the programming if you do not push any button (+,-, CAL) for more than 60 seconds, DUAL will leave the programming keeping the data stored until that moment. !!! After setting the desidered Operation Programming push ESC to go back to working mode. atecpool.com...
- Page 6 Flowrate % = Flowrate % of maximum dosage The number of injections made by the pump per minute is the “pH Flowrate” percentuage chosen. ( Flowrate 100% = 150imp/min) Example: 80% the pump ‘s injections per minute are 120, that is: 150imp/min*0.8=120 imp/min. atecpool.com...
- Page 7 The adjustment must be made starting from a low flow rate that will have to increase gradually until reaching the optimum flow, according to the observations made on site the days following the installation of the device. atecpool.com...
-
Page 8: Ph Electrode Calibration
When the counting reaches the value memorized in Time alarm, the system goes in Time Alarm state 1) The dosing stops 2) Green led On blinks 3) the display shows:“Tal” and the measure on the second line. (See figure here above). atecpool.com... -
Page 9: Flowrate Visualization
ESC button. You can change the visualization pushing again ESC. (See the figure above) THE CALIBRATIONS AND VISUALISATIONS OF CL ARE EXACTLY THE SAME OF PH ONES. FOR THIS REASON HERE BELOW THERE IS AN OVERALL VIEW OF THE MENU TO FOLLOW. atecpool.com... - Page 10 A AMPEROMETRIC CHLORINE PROBE CALIBRATION Attention, It will be necessary to do a comparative free chlorine test (for example a DPD1 photometric test) atecpool.com...
-
Page 11: Gain Calibration
DPD1 tester. Push CAL to confirm. If the display shows the message “Calibration Impossible” the probe calibration is not saved. Read the following paragraph named “MESSAGES FROM THE PUMP”. If no error message appears the calibration has been performed. A POTENTIOSTATIC CHLORINE PROBE CALIBRATION atecpool.com... - Page 12 DPD1 tester. Push CAL to confirm. If the display shows the message “Calibration Impossible” the probe calibration is not saved. Read the paragraph named “MESSAGES FROM THE PUMP”. If no error message appears the calibration has been performed. MESSAGES FROM THE PUMP atecpool.com...
- Page 13 – to do the OFFSET calibration of the probe. If it is necessary you can modify the value shown in the second row of the display by buttons + or – till 0.00ppM reading. Push confirm. atecpool.com...
