Summary of Contents for TURBO RACING TX P59

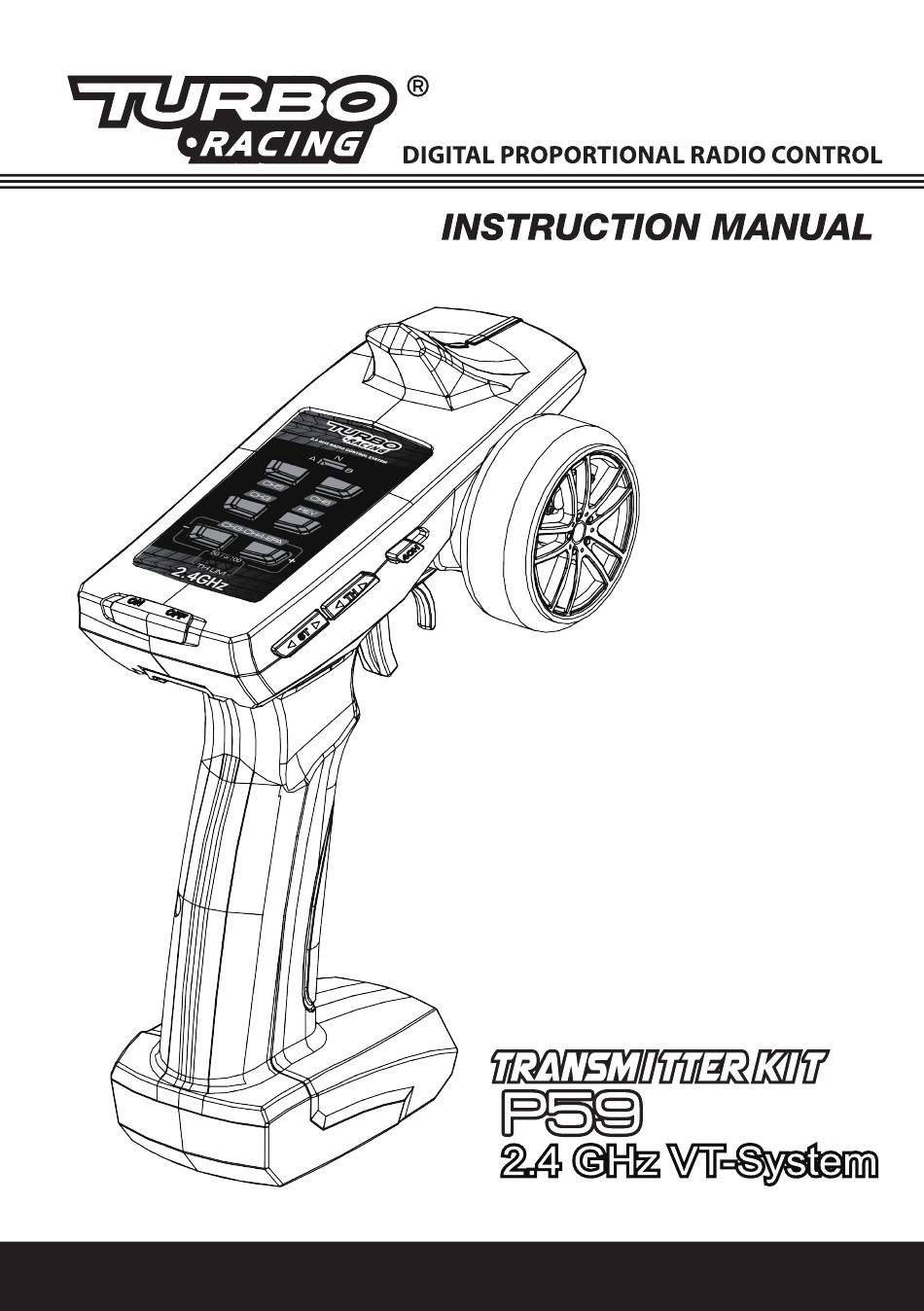

- Page 1 www.turboracinghobby.com...
- Page 2 Introduction Thank you for choosing our company's products! If this is your first time using this remote controller, please read this manual carefully before using it and operate it follow the instructions strictly. You can also check the manual if you encounter problems during the operation.
- Page 3 RADIO SPECIFICATIONS 4 x AA 155.10 193.70 81.30 RECEIVER SPECIFICATIONS Receiver Gyro RX RX41 RX49 4.8 - 10.0V Receiver RX47 4.8 - 10.0V 36x26x14mm www.turboracinghobby.com...
- Page 4 7. CH3-EPA+/- Please put CH4 in the middle of before you press the CH3 EPA+/-,then press EPA+/-, you can adjust the angle of ST 8. CH4-EPA+/- Please put the CH4 switch on left or right, then press the EPA+/- and adjust the angle Battery compartment: Houses [4] AA batteries 17 18 10.
-
Page 5: Battery Installation
1. Turn off the transmitter, press CH5, CH6 button together and hold it, do not release. 2. Then turn on the transmitter. The buzzer will beep twice. Release the CH5, CH6 button. 3. Channel 5 Channel 6 unlinkage successfully. Disassemble Handle & Install 1.Press the button 2.take away the handle 3.press the button, install the handle... - Page 6 (RX47) Connection User group mode A/N/B, factory default N mode. We have added three user group modes with switch adjustment, but now this feature is only available for remote control with user group mode. 伺服 (CH6) User group mode Antenna Switch 伺服...
- Page 7 Connection(RX41) • Channel 1: Controlled by the wheel, connect to a servo Electric powered model for steering. • Channel 2: Controlled by the trigger, connect to the ESC or a servo for throttle/brake. • Channel 3: Controlled by the adjustment knob (0-100%) for optional use.
- Page 8 Connection(RX49) Electric powered model • Channel 1: Controlled by the wheel, connect to a servo for steering. • Channel 2: Controlled by the trigger, connect to the ESC or a servo for throttle/brake. • Channel 3: Controlled by the adjustment knob (0-100%) for optional use.
-
Page 9: Operation
Operation Fail safe function setting Please turn on the TX, then pull the TH trigger anywhere you want to and hold it, press the SW button of the receiver about 2sec,the LED should start flashing for 5sec,then release SW button and TH trigger, turn off the TX. - Page 10 Packanging content Pemrks Model 4 channel 2.4GHz transmitter (P32) 6 channel 2.4GHz receiver (RX47) Manual 4 channel 2.4GHz Gyro receiver Optional (RX49) 4 channel2.4GHz receiver Optional (RX41) www.turboracinghobby.com...
