Summary of Contents for TURBO RACING TX

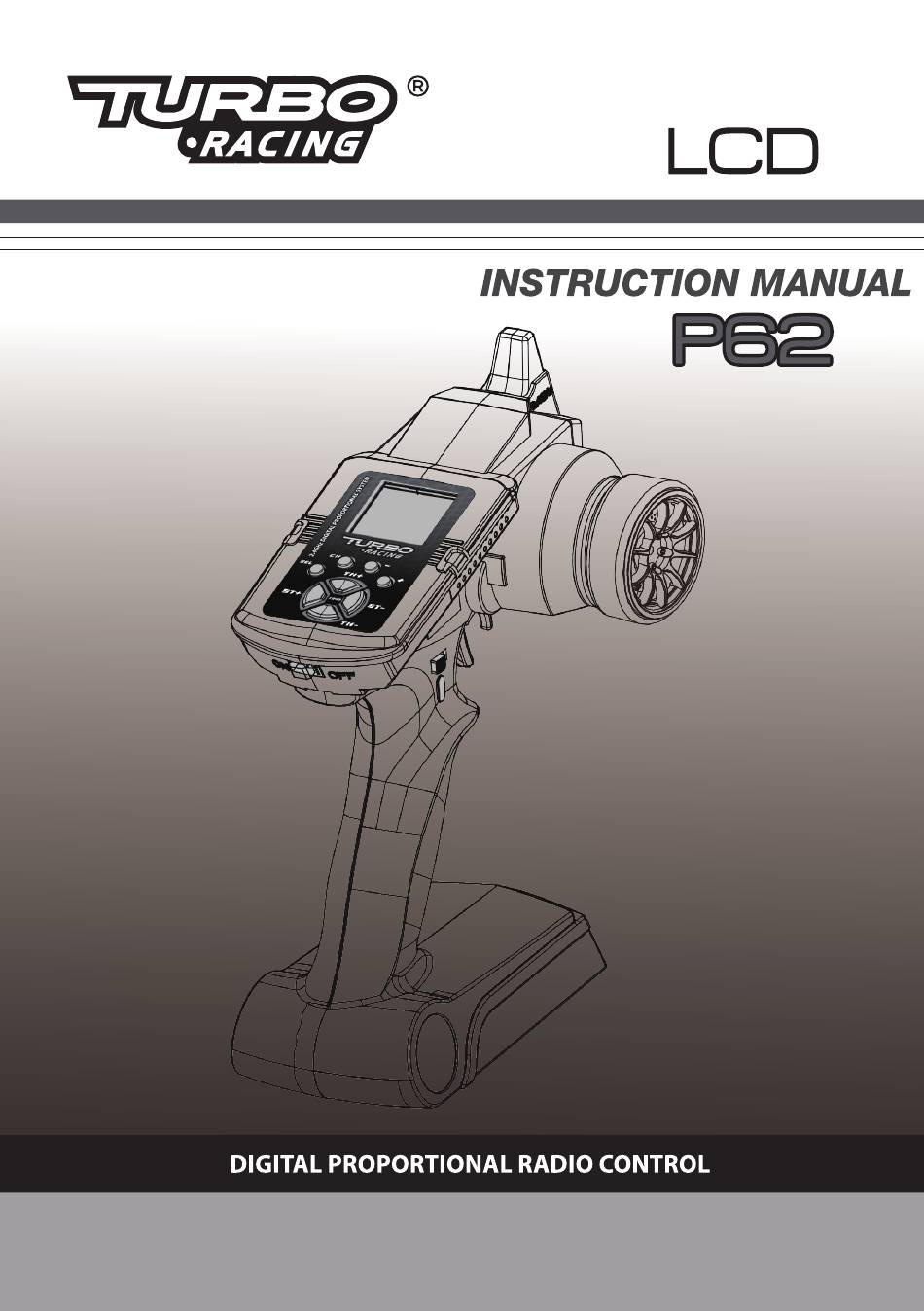

- Page 1 www.turboracinghobby.com...
- Page 2 Introduction Thank you for choosing our company's products! If this is your first time using this remote controller, please read this manual carefully before using it and operate it follow the instructions strictly. You can also check the manual if you encounter problems during the operation.
- Page 3 RADIO SPECIFICATIONS AA x4 179.00 219.30 114.80 RECEIVER SPECIFICATIONS Receiver RX41 4.8 - 10.0V Battery Installation Battery 4x AA www.turboracinghobby.com...

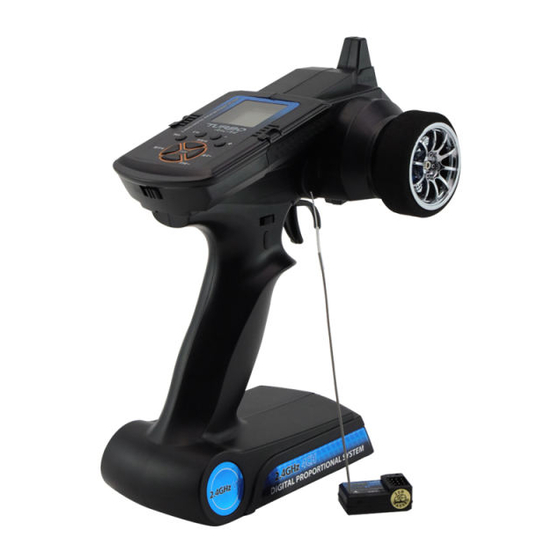

- Page 4 Functions 1. Radio Functions Antenna LCD Display Steering Wheel Throttle Trigger Power switch Hand Grip TH Trim+ ST Trim- ST Trim+ TH Trim- Battery compartment 2. Receiver Functions Positive Pole Negative Pole Signal Channel 4 Channel 3 Channel 2 Channel 1 BING www.turboracinghobby.com...
- Page 5 Connection(RX41) • Channel 1: Controlled by the wheel, connect to a servo Electric powered model for steering. • Channel 2: Controlled by the trigger, connect to the ESC or a servo for throttle/brake. • Channel 3: Controlled by the adjustment knob (0-100%) for optional use.
- Page 6 SVC: D/R: D/R-ST D/R-TH...
- Page 7 Fail safe function setting Please turn on the TX, then pull the TH trigger anywhere you want to and hold it, press the SW button of the receiver about 2sec,the LED should start flashing for 5sec,then release SW button and TH trigger, turn off the TX.
