SWEEX SC016 - QUICK_START_GUIDE Manual page 2

Center / Bass For 5.1 and 7.1 configurations, connect the center / bass channel to this output.
Back In 7.1 configurations, connect the rear speakers to this output. This output is not used for 5.1!

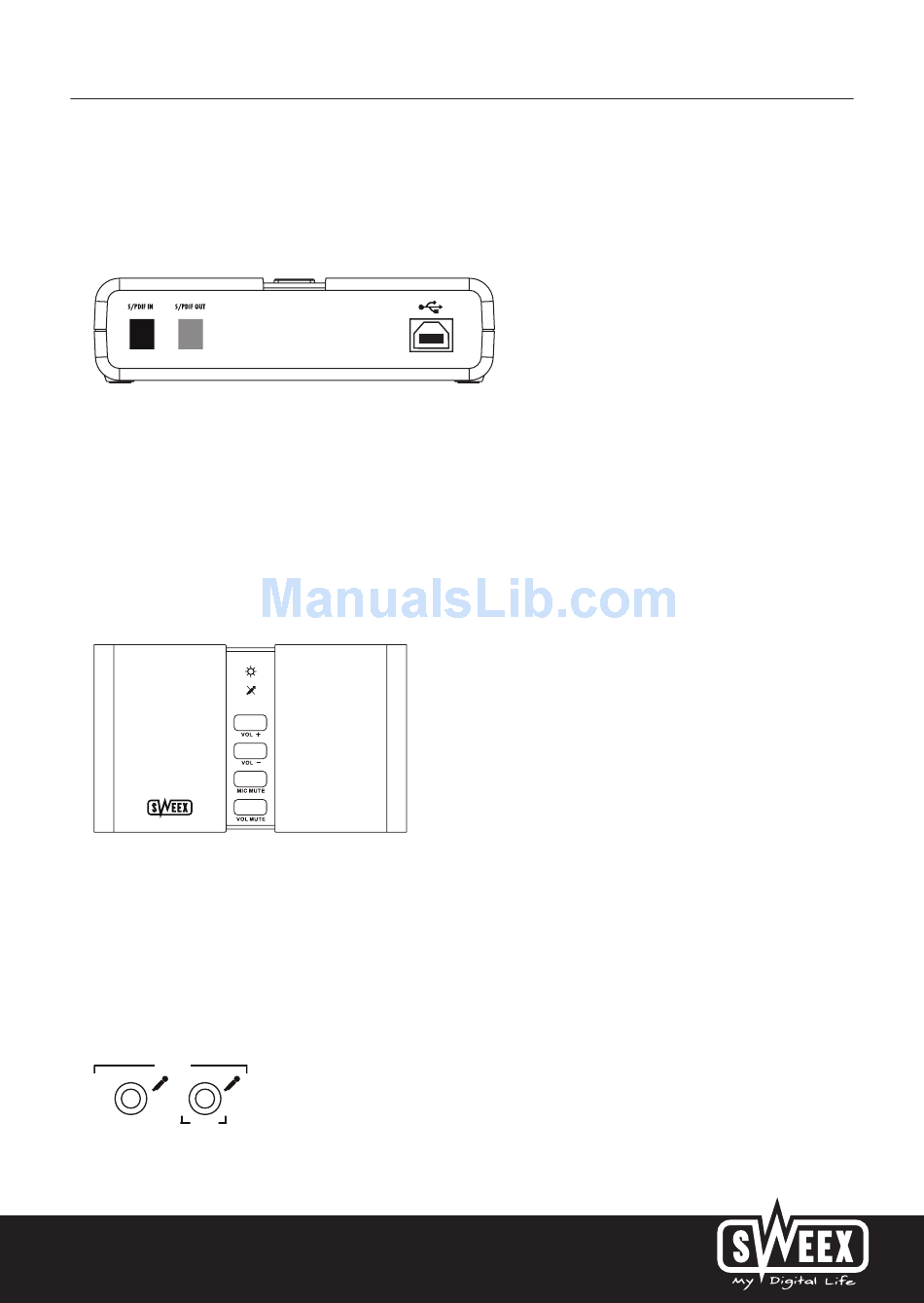

Back:
S/PDIF IN You can connect a S/PDIF source to this input for recording. Please note that it is not possible to use
the soundcard as receiver, you cannot connect your DVD player, Xbox® or other device to the card
and play it's sound back on the speakers
S/PDIF OUT This is the S/PDIF output, during operation, you will see a red light shine through. If you have
trouble getting 5.1 / 7.1 surround sound from the S/PDIF OUT, please refer to the troubleshooting
section of this manual.
USB Connect the USB port of your soundcard to your computer using the included cable.
Top:
Power LED This light indicates that the card receives power from the computer.
Mic mute LED This light indicates that the microphone inputs are muted
Volume up Press this button to increase volume
Volume down Press this button to decrease volume
Mic mute This button mutes / unmutes the microphone inputs
Vol mute This button mutes / unmutes all outputs
Side:
STEREO
2 1
R L
MONO
Mic 2 This is the secondary microphone input, in stereo it is mapped to the left channel.
Mic 1 This is the primary microphone input, used for mono recording and the right channel in stereo.
