English version
Introduction
• Do not expose the Sweex 7.1 external USB sound card to extreme temperatures. Do not place the device in direct
sunlight or in the direct vicinity of heating elements.
• Do not use Sweex 7.1 external USB sound card in extremely moist or dusty surroundings.
• Protect the device against powerful shocks and falls – they may damage the internal electronics.
• Never attempt to open the device yourself, there are no serviceable parts inside. Opening the device will cause the
warranty to lapse.
Package contents
In this package you will find:
• 7.1 USB Sound Card
• USB A – B cable (100 cm)
• CD with software, drivers and this manual
If you find that any of the package contents are missing, please return the package to the sales point where it was bought.

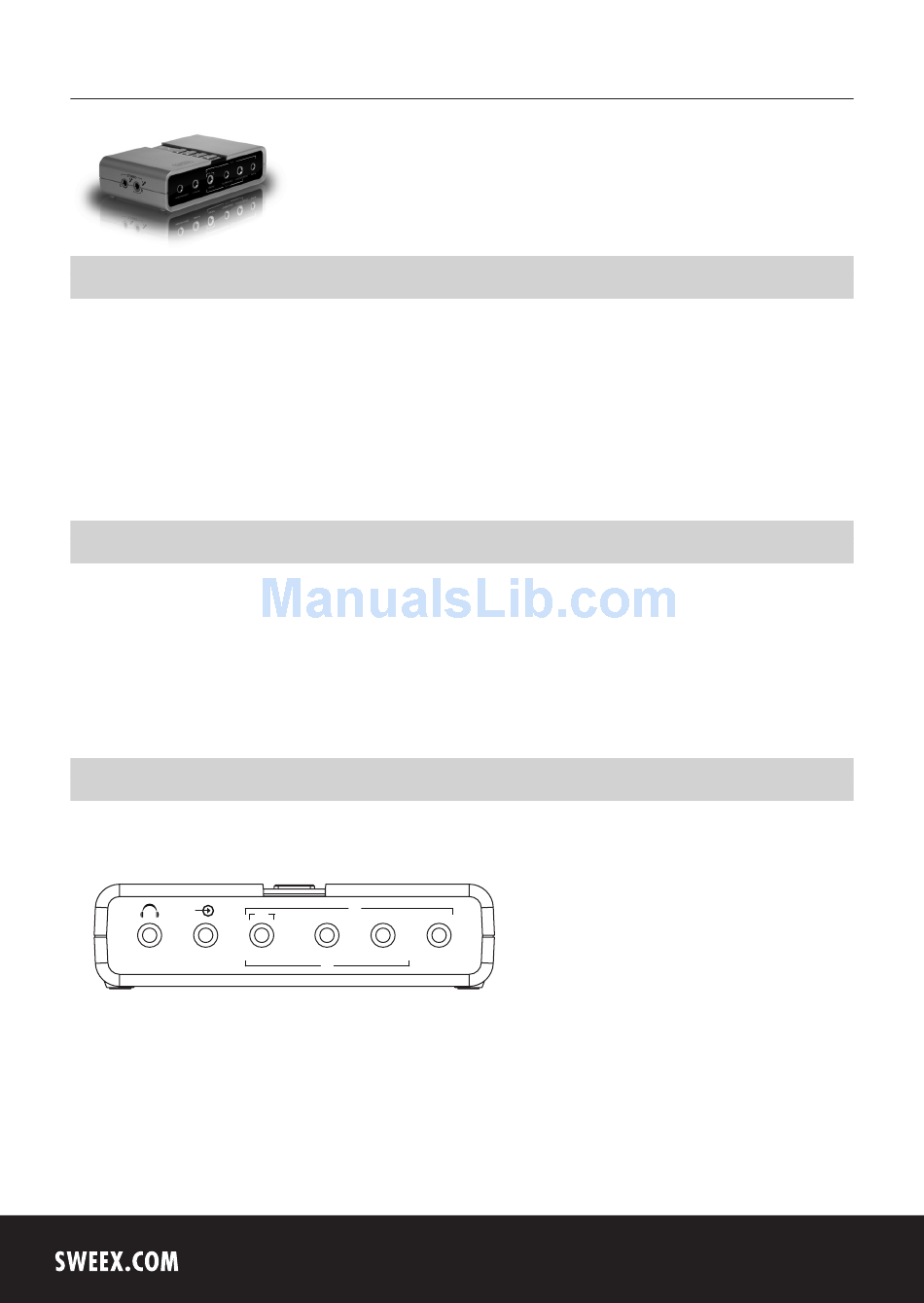

Connections
On the sound card you will find the following connections:
Front:
HEADPHONES
LINE-IN
Headphones
Connect your headphones to this output
Line-IN
This input is for recording from stereo line-level sources
Front
Connect your 2.0 or 2.1 speaker set to this output. In surround sound configurations, connect the
front speakers to this output.
Surround
In 5.1 speaker configurations, connect the rear speakers to this output. For 7.1, connect the side
speakers to this output.
SC016 Sweex 7.1 external USB sound card
S P E A K E R S
7.1
2.1
FRONT
SURROUND
CENTER / BASS
5.1
BACK
Advertisement
Table of Contents
Related Manuals for SWEEX SC016 - QUICK_START_GUIDE
Summary of Contents for SWEEX SC016 - QUICK_START_GUIDE
-
Page 1: Package Contents
• USB A – B cable (100 cm) • CD with software, drivers and this manual If you find that any of the package contents are missing, please return the package to the sales point where it was bought. Connections... - Page 2 Back: S/PDIF IN You can connect a S/PDIF source to this input for recording. Please note that it is not possible to use the soundcard as receiver, you cannot connect your DVD player, Xbox® or other device to the card and play it’s sound back on the speakers...
-
Page 3: Software Installation
Connect the sound card to an USB port of your computer. Windows will automatically recognise the device and display the following message: Windows XP Note: The card is not yet ready to use! You still need to install the drivers and software, the drivers and software included with Windows XP will not work. Vista You can safely ignore this message. - Page 4 The sound card will automatically adapt it’s settings to the speakers you have connected (headphones / 2.0 or 2.1 / 5.1 / 7.1), in most cases you will not need to adjust any settings. If you notice that the card does not detect all...
-
Page 5: Troubleshooting
> In this case the center / bass channels may be swapped to fix, open the sound card’s software, you will see a small icon: next to your speaker settings in the Analog Output section. Click it, check the “Swap center / bass output” checkbox and click OK. - Page 6 • For this Sweex product a three year warranty period applies, beginning from of the date of purchase. • In case of defect, return the product to your reseller with failure description, proof of purchase and all accessories. • Warranty will be void in case of opened products, physical damage, misuse, modification, repair by unauthorised persons and using the product for other purposes than its intended use.
