Summary of Contents for LEXIN SMART PUMP P5
- Page 1 TO USE ？ SMART PUMP P5 User Guide V 1.0...
-
Page 2: Product Information
LX SMART PUMP P5 USER GUIDE Catalog Product Information Product Packaging Function Introduction Basic Operation Attentive Troubleshooting... -
Page 3: Product Packaging
LX SMART PUMP P5 USER GUIDE Product Information Product Model: P5 Smart Air Pump Pressure: 2~150PSI / 0.1~10.3BAR Battery Capacity: 3.7V/5000mAh Working Temperature: -10 － 45℃ USB-C Input: 5V/2A Product Net Weight: 500G USB-A Output: 5V/2A Product Size: 162.5*68*38MM Battery Power: 18.5Wh/7.4V Product Packaging ·... -
Page 4: Function Introduction

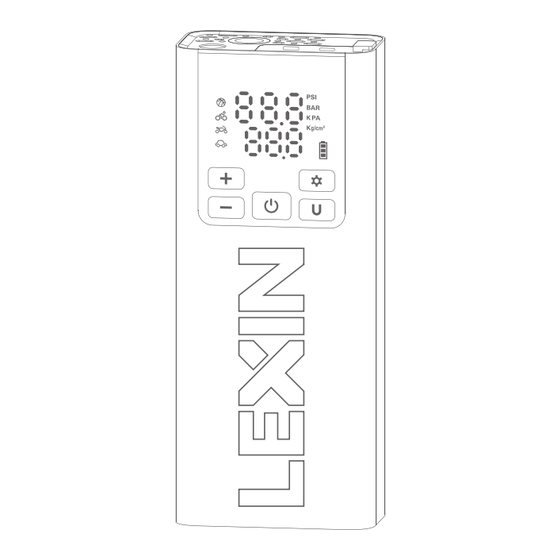

LX SMART PUMP P5 USER GUIDE Function Introduction Tracheal Interface USB-C Input Port LED Light USB-A Output Port Real-time Air Pressure Air Pressure Unit Display of Use Scene Battery Indicator Preset Air Pressure Mode Setting /LED Light Preset + Preset —... -
Page 5: Basic Operation
LX SMART PUMP P5 USER GUIDE Basic Operation Power On/Off Power On: Press and hold the power button for 3 seconds to turn on the air pump. Power Off: Press and hold the power button for 3 seconds to turn off... -
Page 6: Charging Method
LX SMART PUMP P5 USER GUIDE Charging Method USB-C charging input 5V/2A, please use a charging cable and connect it with the power adapter to charge the air pump. Battery indicator when charging: FLashe green light: Charging Keep green light on: Fully charged... - Page 7 LX SMART PUMP P5 USER GUIDE Pressure Reset After power on, the trachea is not connected to the inflatable object. When the measured pressure value is not 0.0, press the button at the same time for 2 seconds, and it will return to normal after all lights of the display screen are on.
- Page 8 LX SMART PUMP P5 USER GUIDE Motorcycle Tires The pressure range of motorcycle tires is marked on the side of the tire. The inflation pressure is related to the load weight, for more detailed air pressure recommendations, please refer to the manual of the relevant vehicle.
- Page 9 LX SMART PUMP P5 USER GUIDE Ball Valves Ball valves are needed when inflating balls such as basketballs and soccer balls. Inflation: After connect the ball valve with the schrader valves of the air trachea, insert the ball valve into the gas-filled pore on the ball to inflate.
- Page 10 LX SMART PUMP P5 USER GUIDE Product Category Product Type Pressure Range Road Bike 100~120PSI Bike Balance Bike 40~60PSI Wheelchair 30~45PSI Motorcycle/ Motorcycle/ 1.8~3.0BAR Electric Motorcycle Electric Motorcycle Motor Vehicle Cars 2.2~2.8BAR Kids Toy Ball 3~6PSI Basketball 7~9PSI Ball Football...
-
Page 11: Troubleshooting
LX SMART PUMP P5 USER GUIDE Troubleshooting Problems Exclusion Approach 1. Check whether the power is sufficient. 2. Check whether the air tube leak gas. Inflate too slow 3. Check whether the connections at both ends of the trachea are tightened. - Page 12 Lexin Electronics Inc. 1(800) 380 - 8248 www.lexin-moto.com Backed by 2-Year Warranty For technical support : tech@lexinmotorcycle.com @lexinmoto...
