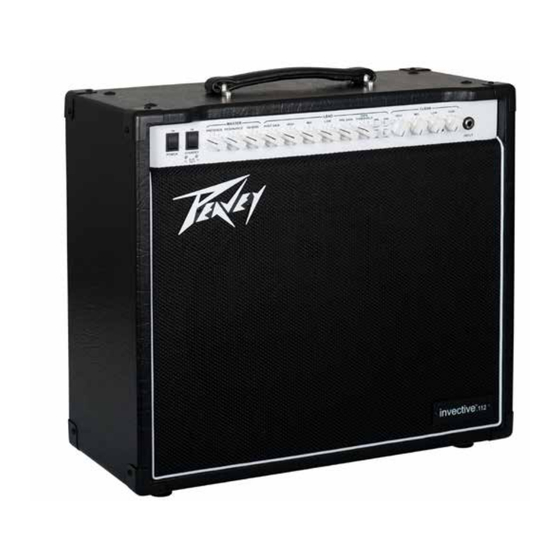

- Page 1 Peavey invective .112 ® ® 20W Tube Guitar Amplifier Operating Manual www.peavey.com...
- Page 3 ® Congratulations on the purchase of your new invective .112 tube guitar amplifier from Peavey! Although small, this amp has an all- tube preamp and power amp to authentically produce the much loved tones of the Invective 120-- albeit at lower power levels. The major advantage is the sheer size and weight (or lack thereof).
-
Page 4: Channel Switch
ELECTRIQUE-NE PAS OUVRIR invective DEFEAT INPUT .112 A PRODUCT OF PEAVEY ELECTRONICS CORP. DESIGNED AND ENGINEERED IN U.S.A. GRND THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. LIFT Standard 1/4” jack for connection to the output of your guitar or last pedal if using effects before the amp. -
Page 5: Standby Switch
Front Panel cont. POST-GAIN controls This controls the output level of the LEAD channel. Used to set the volume as well as to balance the sound between the two channels. REVERB Determines the overall reverb level. Fully counterclockwise will be completely "dry" with no reverb, low settings will produce subtle reverb and high settings will produce lush ambience. - Page 6 Front Panel cont. POWER switch To apply power to the unit, connect the line cord and flip the switch to the ON position. Three of the four front panel LED’s should illuminate, indicating power is being supplied. It’s best that the STANDBY switch (12) is set to STANDBY when amp is first switched on.
-
Page 7: Voltage Selector Switch
IS SUBJECT TO THE FOLLOWING TWO CONDITIONS (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE A PRODUCT OF PEAVEY ELECTRONICS CORP. GRND THAT MAY CAUSE UNDESIRED OPERATION. DESIGNED AND ENGINEERED IN U.S.A. -
Page 8: Headphone Output
MIC SIMULATED DIRECT INTERFACE - MSDI™ Peavey’s exclusive MSDI™ simulates the sound of a microphone placed approximately 3” from a loudspeaker cone, allowing the user to send an accurate good quality signal to the mixing console, without any acoustic spill from other instruments on stage. - Page 9 If the effects loop is used, then it will automatically be on. However, a footswitch can also be used to bypass the effects loop-- see below. FOOTSWITCH JACKS Provides for connection of one or two Peavey Multi-purpose 2-button Footswitch w/LEDs (#03620960). One such footswitch is included with the amplifier. Top Jack (CHNL/TIGHT): “1”...
- Page 10 ® Invective 20 112 All-Tube Guitar Amplifier SPECIFICATIONS Rated Power: 20 W(rms) into 8 or 16Ω A second footswitch can be used for turning Reverb/Boost+ Gate. Other Misc Specifications Power Consumption: (Domestic) 90 W, 50/60 Hz, 120 VAC Signal to Noise Ratio: Tube Complement: 2 x EL84, 3 x Better than 74dB on all models 12AX7/ECC83...
- Page 12 Warranty registration and information for U.S. customers available online at www.peavey.com/warranty or use the QR tag below Features and speci cations subject to change without notice. Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278 Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005...
