Kogan KADPFR10WBA User Manual

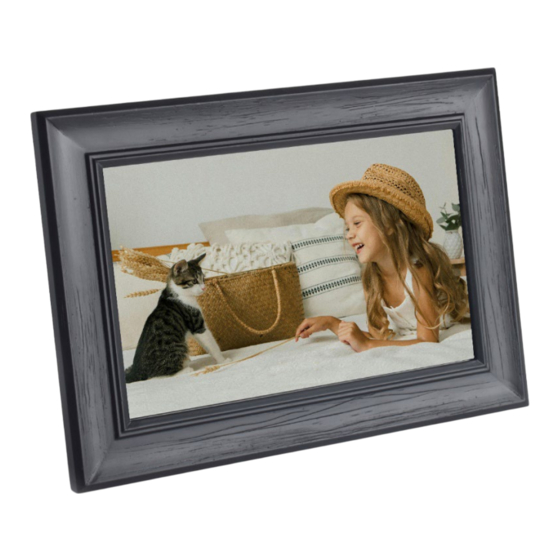

Touch screen wireless digital photo frame 10.1", black
Hide thumbs

Advertisement

Quick Links

Download this manual
TOUCH SCREEN WIRELESS
DIGITAL PHOTO FRAME
(10.1", BLACK)
KADPFR10WBA

Advertisement

loading
Need help?

Need help?

Do you have a question about the KADPFR10WBA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kogan KADPFR10WBA

Summary of Contents for Kogan KADPFR10WBA

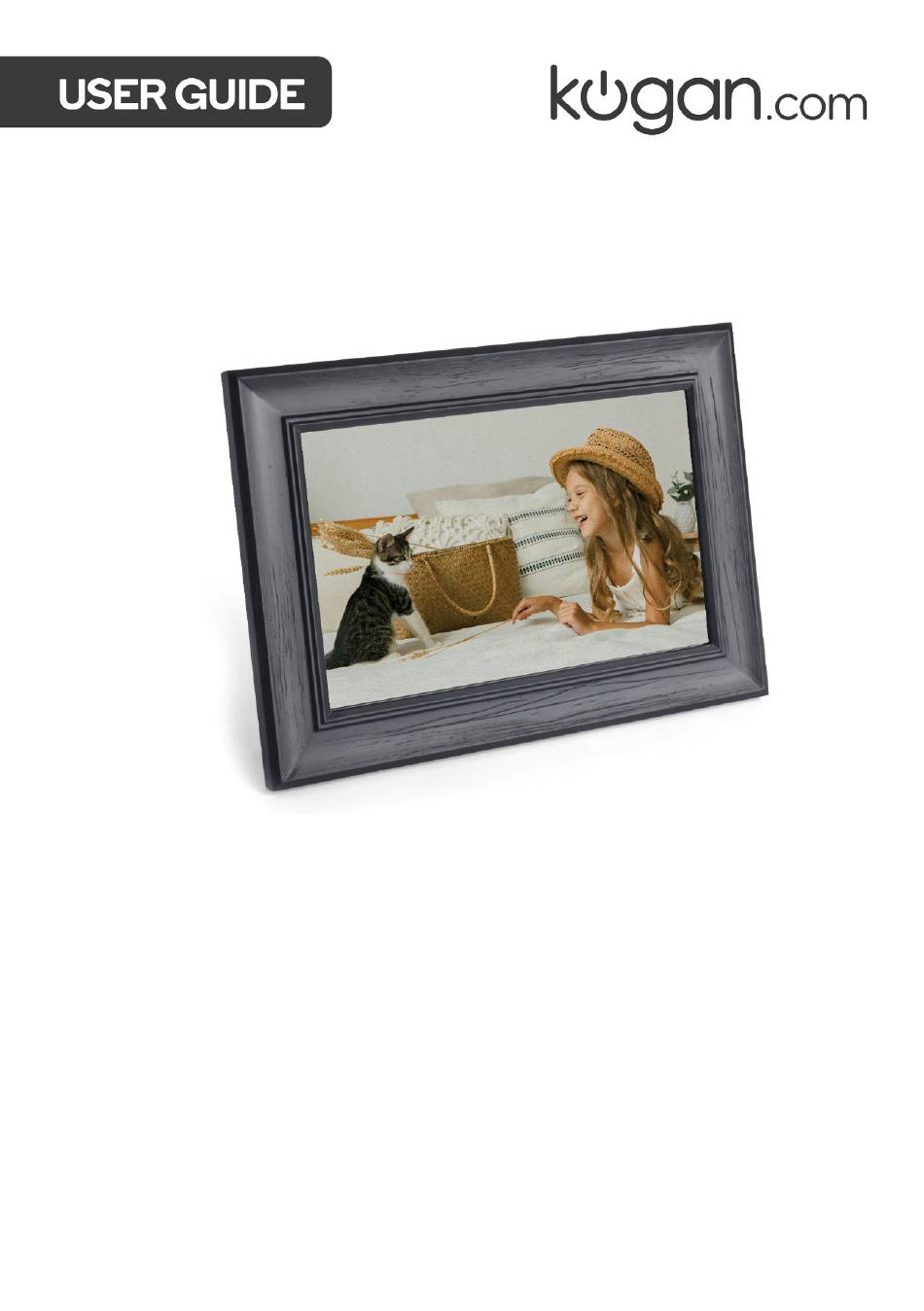

  • Page 1 TOUCH SCREEN WIRELESS DIGITAL PHOTO FRAME (10.1", BLACK) KADPFR10WBA...

  • Page 3: Safety And Warnings

    • If this product or its power cord shows any sign of damage, cease use immediately and contact help.Kogan.com for support. • This product must be placed on a flat stable surface and not subjected to vibrations.
  • Page 4 • OVERVIEW • Power button USB-A port Speakers MicroSD card slot Mounting hole (x2) Power input Kickstand USB-C port 3.5mm audio port Power Button Press and hold power button 3 seconds to turn the photo frame on/off USB-C & USB-A You can copy photos from the unit to the USB stick.
  • Page 5 ASSEMBLY Installing the Kickstand Lay the frame face down on a flat surface and attach the kickstand to the rear of the photo frame. Kickstand Wall Mounting The rear of the photo frame has two mounting holes which can be used to mount the frame to a wall using a screw (not supplied).

  • Page 6: Operation

    OPERATION Connecting to Power Connect the power adapter to the power input on the frame and then plug it into an electrical outlet. Press and hold the power button on the rear of the frame until the frame turns on. Initial Setup When using this digital photo frame for the first time, you will need to set up the following: Select your desired language.
  • Page 7 Launch the mobile APP. You can choose to create a new account and use the account to scan the QR code on the photo frame or input frame device number to pair the digital photo frame. After the pairing is successful, you can send photos, music and videos from your smart phone to the digital photo frame.
  • Page 8 Main Menu The main menu provides access to various functions, including albums, music, videos, calendars, weather, and settings. Navigate through these options by tapping the corresponding icons. Album In the Albums section, you can view photos that have been uploaded by users or imported locally.
  • Page 9 Music Tap the music icon on the main interface to access the music player. This supports music from SD cards, USB drives, or cloud storage. Controls: • Play Modes: Switch between different play modes, including play, pause, next, and previous tracks. •...
  • Page 10 Calendar Access the calendar by clicking the calendar icon on the main interface. Navigate between months using the left and right arrows. Weather Once connected to the internet, the photo frame will automatically display a three-day weather forecast for your city.
  • Page 11 Settings Customize your digital photo frame using the settings interface. User Account Add a new user by scanning and downloading the “BWJBSW Smart Frame” app. Use the app to pair the photo frame to your account, allowing for easy photo, video, and music uploads.
  • Page 12 Alarm Set and manage alarms through the alarm settings. Add new alarm times using the + symbol. Time Zone • Automatic Date and Time: Toggle automatic settings. • Set Date/Time: Manually set the date and time. • Select Time Zone: Choose the appropriate time zone. •...
  • Page 13 Mailbox Send photos to the email displayed on the page for easy uploads. Storage View local and cloud storage space information.
  • Page 14 About • Device Information: View or revise the device name, number, software version, MAC address. • System Update: Check for updates or restore factory settings. Note that restoring will clear all data and settings. Ensure your digital photo frame is set up and customized to your preferences by navigating through these options and utilizing the available features for an optimal experience.

  • Page 15: Specifications

    SPECIFICATIONS Size 287 x 206 x 48mm Weight 712.2g Material Plastic + wooden Quad Core-A50 1.7GHz Memory 32GB Touch screen Glass and plastic Resolution 800x1280 Aspect ratio 16:10 Display 10inch IPS Speaker 8Ω2W x2 DC-4.0/USB-A/MINI USB/SD Input/Output Card/3.5mm earphone SD/SDHC/MMC Up64GB U-disk up to Extended type 64GB Battery...
  • Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
