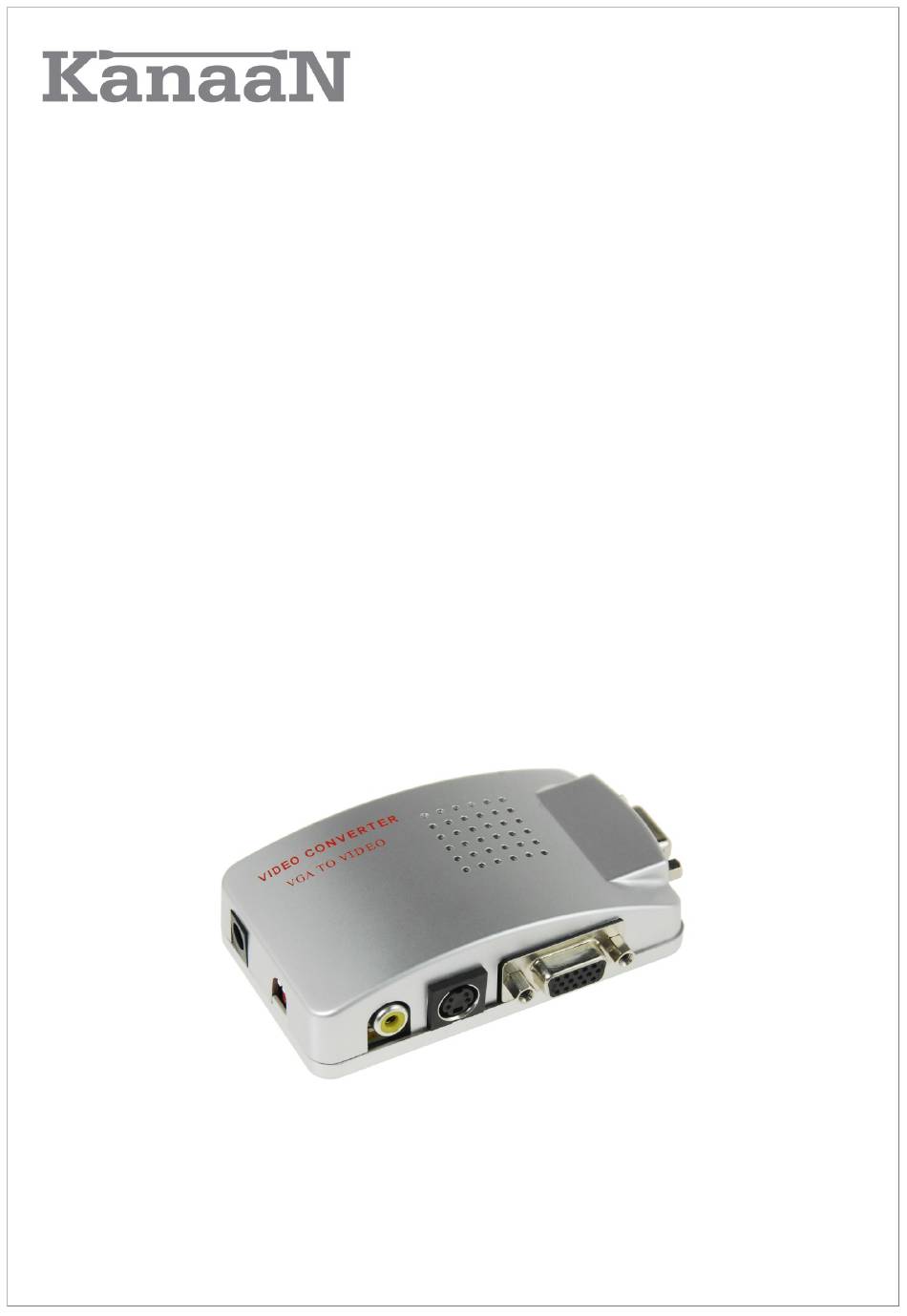

- Page 1 User's Manual Video Converter Product number: KN39753...
- Page 2 To discover more about LEICKE products, or if you have any questions about this product, visit our website www.leicke.com (production & wholesale) or www.leicke-distributor.de...
-
Page 3: Package Contents
PACKAGE CONTENTS Before attempting to use this device, please check the packaging and make sure the following items are contained in the package: Name Number of Pieces Note Video Converter SCART adapter Switch on "In" when using it S-video cable 1.2 m Composite video cable 1.4 m... -
Page 4: Technical Details
TECHNICAL DETAILS Signal Input/Output Input VGA (looped) supports: 640x480@60/72/75/85Hz, 800x600@60/75Hz, 1024x768@60/75Hz 1280x1024 @60Hz Output Composite video, S-video, VGA Connectors Input connector VGA, 15 pin SubD (w) Output connector Composite cinch RCA, S-video, VGA Bit Rate 24 bit depth (True Color) Size and Weight (L x W x H) 60 x 65 x 20 mm... -
Page 5: Panel Description
PANEL DESCRIPTION Please study the panel drawings below and become familiar with the signal input(s), output(s) and power connector. (1) DC 5 V > USB interface (2) system adjuster > adjust PAL / NTSC system (3) video-out > connect to TV or VCR devices (4) S-video-out >... - Page 6 KEYS Name Explanation (1), (2), (3), (4) arrow keys To adjust AV picture position use the four arrow keys (up, down, left or right). (5) Menu Press once and OSD menu appears; press and hold for 3 sec. to reset. (6) Zoom Press once to enlarge picture, press again to reset picture size.
-
Page 7: Connection And Operation
CONNECTION AND OPERATION ATTENTION: To avoid damages to the video/audio system by inrush current, please switch the amplifier/TV off before installing the converter! Step 1: Connect the VGA-out with the corresponding interface at the converter (see explanation at converter's bottom). Depending on the connecting possibilities you may connect your TV via Composite (Cinch) or S-video. - Page 8 Press the menu button for more than 3 seconds to reset the The converter has frozen converter. If the problems cannot be solved, please don't hesitate to contact us. Our customer's support will be glad to help you under info@leicke-distributor.de.
-
Page 9: Safety Notes
During operation the converter may become very warm. Therefore, it is necessary that the converter is not covered and stands alone. Declaration of Conformity Declaration of Conformity with regard to the EU Directive LVD 2005/95/EG, EMV 2004/108/EG ErP 2009/125/EG RoHS 2011/65 EG. See also at www.leicke.com. - Page 10 CONTACT If you have any questions, please feel free to contact us. PRODUCTION & WHOLESALE DISTRIBUTION LEICKE GmbH LEICKE Distributor (LEICKE GmbH) Dohnanyistr. 28 Dohnanyistr. 28 04103 Leipzig 04103 Leipzig Germany Germany Web: www.leicke-distributor.de Web: www.leicke.com Mail: info@leicke.com Mail: info@leicke-distributor.de...
