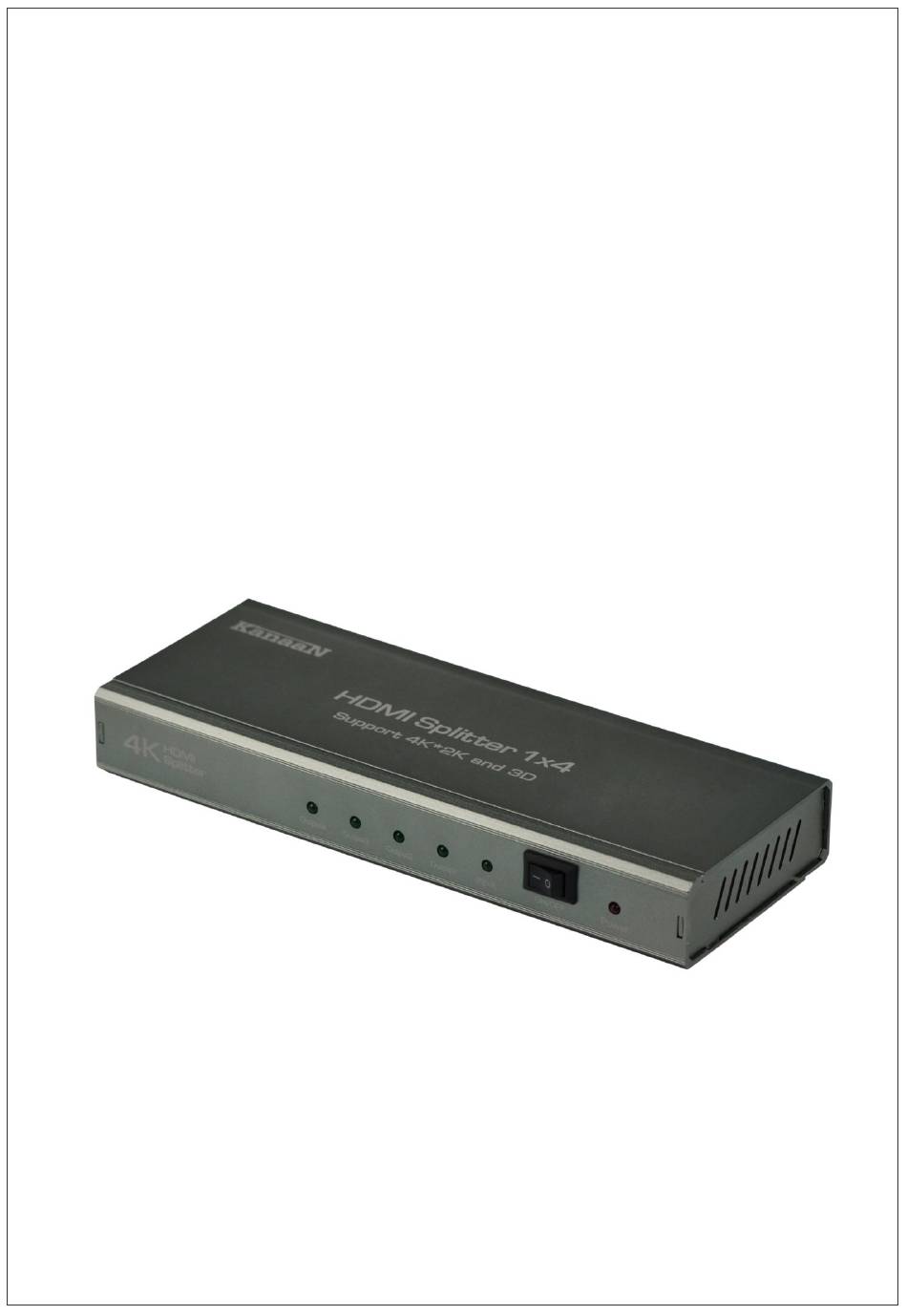

- Page 1 User's Manual HDMI 4K*2K Splitter 1x4 Product number: KN40547...
- Page 2 That way, we get to know you and your demands on our products and services better and thus allow for positive enhancements. To discover more about LEICKE products, or if you have any questions about this product, visit our website www.leicke.com. Dear customer, with our devices we offer solutions for audio, space or security problems, data control, information distribution, conference presentations and school or company environment.
- Page 3 TECHNICAL DETAILS ≤ 15m/25m ( HDMI AWG26 ) Maximum cable length input/output HDMI resolution 4k*2k / 1080p /1080i /720p / 576p / 576i / 480p / 480i @24/25/60 Hz HDMI version HDMI version 1.4 Colour depth 24/30/36/48 bit Band width up to 340MHz Supported audio formats DTS-HD/Dolby-TrueHD/LPCM...
- Page 4 Connections and Keys Figure 1: Back Panel Figure 2: Front Panel 1. Input power supply 2. HDMI input (source) 3. HDMI output 4. LED HDMI output active (connection ok) 5. LED input active (HDMI signal ok) 6. On/Off switch 7. LED power supply...
- Page 5 The splitter needs a short time to set the new device, so device is connected. short interruptions are normal. The same goes for the switching on or off of connected devices. Our customer's support will be glad to help you under info@leicke.com.
- Page 6 SAFETY NOTES For your own safety and for long enjoyment of our product, please follow the following safety instructions: Please use device as described in the manual. To avoid damages to the video system by inrush current, please switch the amplifier/TV off before installing the converter.
- Page 7 FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 8 CONTACT If you have any questions, please feel free to contact us. PRODUCTION & WHOLESALE LEICKE GmbH Dohnanyistr. 28 04103 Leipzig Germany Web: www.leicke.com Mail: info@leicke.com...
