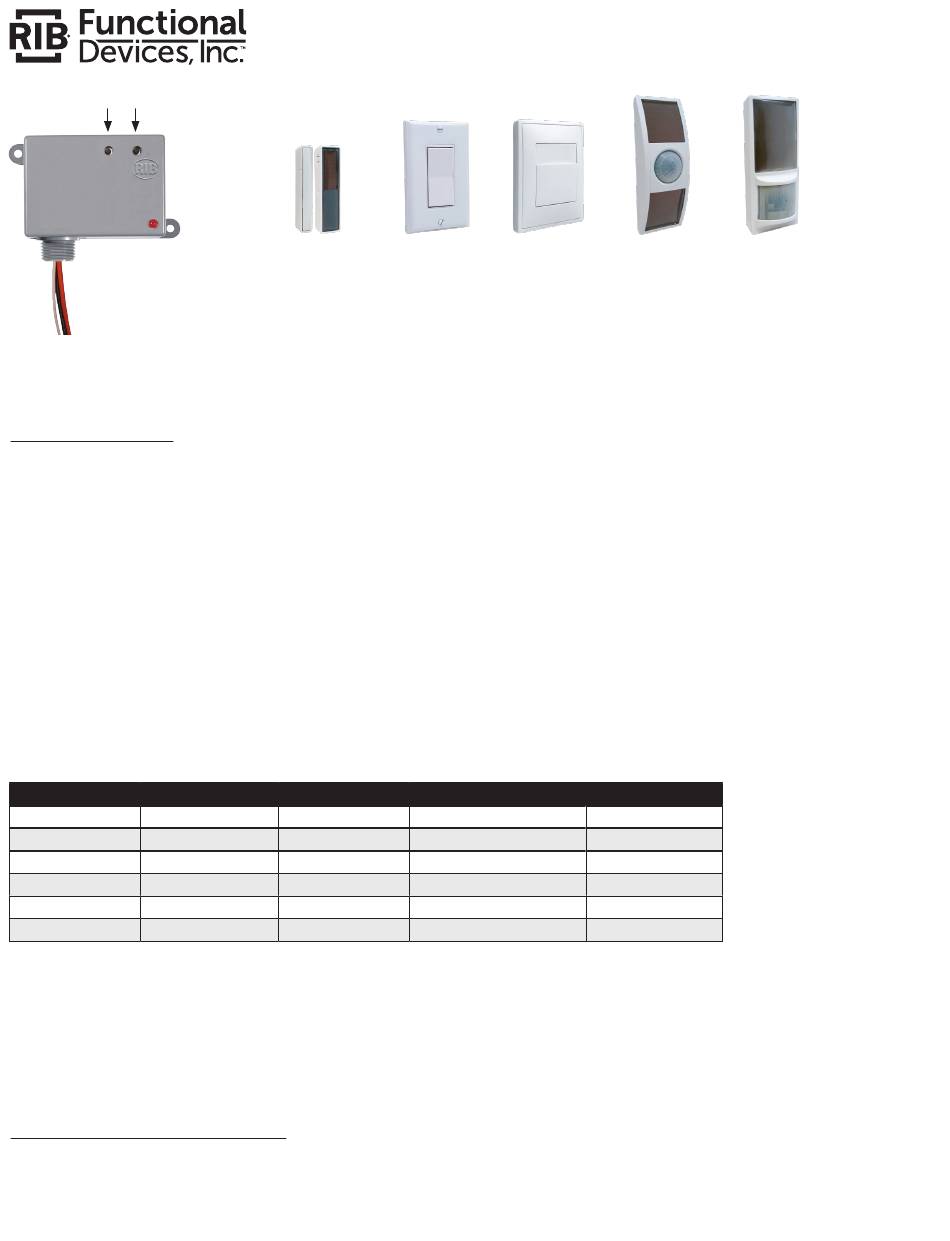

LRN CLR
RIBW21BAO-EN3
Getting Started
• Plan where you will mount each receiver and transmitter.
• Avoid transmitting along a length of wall, sharp angles and large obstructions.
• Avoid mounting inside a metal enclosure.
• Typical range is 100' line of sight.
• Link devices to each other before installing. See linking instructions (per application) on following pages.
• All RIBs must be powered during Link.
• PHC Gateway Controller can link with a RIB and be Bi-directional.
• Relay state at power-up can be set to ON, OFF or LAST STATE (default).
• Each Relay can be Linked to up to 30 transmitters of any combination.
902 MHz Model
Power Input (Vac)
RIBW21BAO-EN3
120-277 Vac
WDWS-EN3
None
WWS-EN3
None
WKC-EN3
None
WVSCM-EN3
None
WVSWM-EN3
None
Functional Devices, Inc.'s EnOcean
Compatible Device from other Manufacturers
PHC Gateway Controller
EEP A5-38-08
Light Level Sensor
EEP A5-06-02
393277
902 MHz Wireless Relay Application Manual
Bulletin B2488
WDWS-EN3
Contact Rating (A)
20
NA
NA
NA
NA
NA
®
Manufacturer ID is 0x055.
0x02 (Dimming Profile)
WWS-EN3
WKC-EN3
Transmission Source
Status Change/Heartbeat
Contact Closure
Button Press
Insert/Remove Card
Occupancy Detected
Occupancy Detected
WVSCM-EN3
WVSWM-EN3
EEP
A5-11-01
D5-00-01
F6-02-02
F6-04-01
A5-07-01
A5-07-01
page 1
Advertisement
Related Manuals for RIB Functional Devices RIBW21BAO-EN3
Summary of Contents for RIB Functional Devices RIBW21BAO-EN3
- Page 1 • Link devices to each other before installing. See linking instructions (per application) on following pages. • All RIBs must be powered during Link. • PHC Gateway Controller can link with a RIB and be Bi-directional. • Relay state at power-up can be set to ON, OFF or LAST STATE (default).
- Page 2 2. Get RIB in Learn mode by pressing the LRN button for ½ second. (LED will blink). 3. Transmit Link telegram from Central Command Gateway • LED on RIB will stay ON for 4 seconds to acknowledge and then transmit a Link telegram Note: To clear memory, hold CLR button for 3 seconds.
- Page 3 • Relay activates when Rocker ON is pressed. Relay deactivates when Rocker OFF is pressed or 30 minutes after last detection of occupancy. • It may take up to 2 minutes for the RIB to respond to the Occupancy / Vacancy Sensor immediately following Link.
-
Page 4: Optional Modes
2. Press and hold LRN button on RIB for ½ second. LED will flash slowly. 3. Press and hold LRN button on RIB for 3 seconds until LED pattern changes to 3. Press and hold LRN button on RIB for 3 seconds until LED pattern changes to FLASH, FLASH, FLASH, OFF (2 flashes). -
Page 5: Delay Mode
2. Press and hold LRN button on RIB for ½ second. LED will flash slowly. 3. Press and hold LRN button on RIB for 3 seconds until LED pattern changes to 3. Press and hold LRN button on RIB for 3 seconds until LED pattern changes to FLASH, FLASH, FLASH, OFF (2 flashes). - Page 6 1. Charge the WDWS-EN3 per Instructions provided with unit. 2. Apply power to RIB. 3. Press and hold LRN button on RIB for ½ second. LED will blink slowly. 4. Press and release Link button on WDWS-EN3 to transmit Teach telegram.
