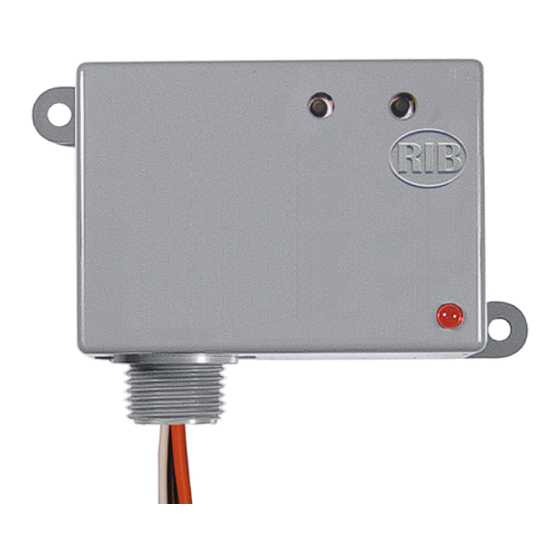

RIB RIBW***B-EN3 Series Applications Manual

LRN CLR
RIBWxxxB-EN3
Getting Started
• Plan where you will mount each receiver and transmitter.
• Avoid transmitting along a length of wall, sharp angles and large obstructions.
• Avoid mounting inside a metal enclosure.
• Typical range is 100' line of sight.
• Link devices to each other before installing. See linking instructions (per application) on following pages.
• All RIBs must be powered during Link.
• RIBWxxxB-EN3 is both a transmitter and a receiver.
• RIBWxxC-EN3 is only a receiver.
• Linking a RIB with another RIB puts the pair in Bi-directional mode.
• PHC Gateway Controller can also link with a RIB and be Bi-directional.
• Relay state at power-up can be set to ON, OFF or LAST STATE (default).
(Exception: RIBW24B-EN3 will not save last state when powered from 24Vdc).
• Each Relay can be Linked to up to 30 transmitters of any combination.
902 MHz Model Power Input (Vac)
RIBW24B-EN3 24 ac/dc
RIBW01B-EN3 120
RIBW208B-EN3 208
RIBW240B-EN3 240
RIBW277B-EN3 277
RIBW01C-EN3 120
RIBW02C-EN3 208-277
WDWS-EN3 None
WWS2-EN3 None
WKC-EN3 None
WVSCM-EN3 None
WVSWM-EN3 None
Functional Devices, Inc.'s EnOcean
Compatible Device from other Manufacturers
PHC Gateway Controller EEP A5-38-08
393231L
902 MHz Wireless Relays Application Manual
Bulletin B1867
RIBWxxC-EN3
Contact Rating (A)
20
20
20
20
20
5
5
NA
NA
NA
NA
NA
® Manufacturer ID is 0x055.
WDWS-EN3 WWS2-EN3
Transmission Source EEP
Dry-Contact A5-30-02
Dry-Contact A5-30-02
Dry-Contact A5-30-02
Dry-Contact A5-30-02
Dry-Contact A5-30-02
NA A5-30-02
NA A5-30-02
Contact Closure D5-00-01
Button Press F6-02-02
Insert/Remove Card F6-04-01
Occupancy Detected A5-07-01
Occupancy Detected A5-07-01
WKC-EN3 WVSCM-EN3 WVSWM-EN3
