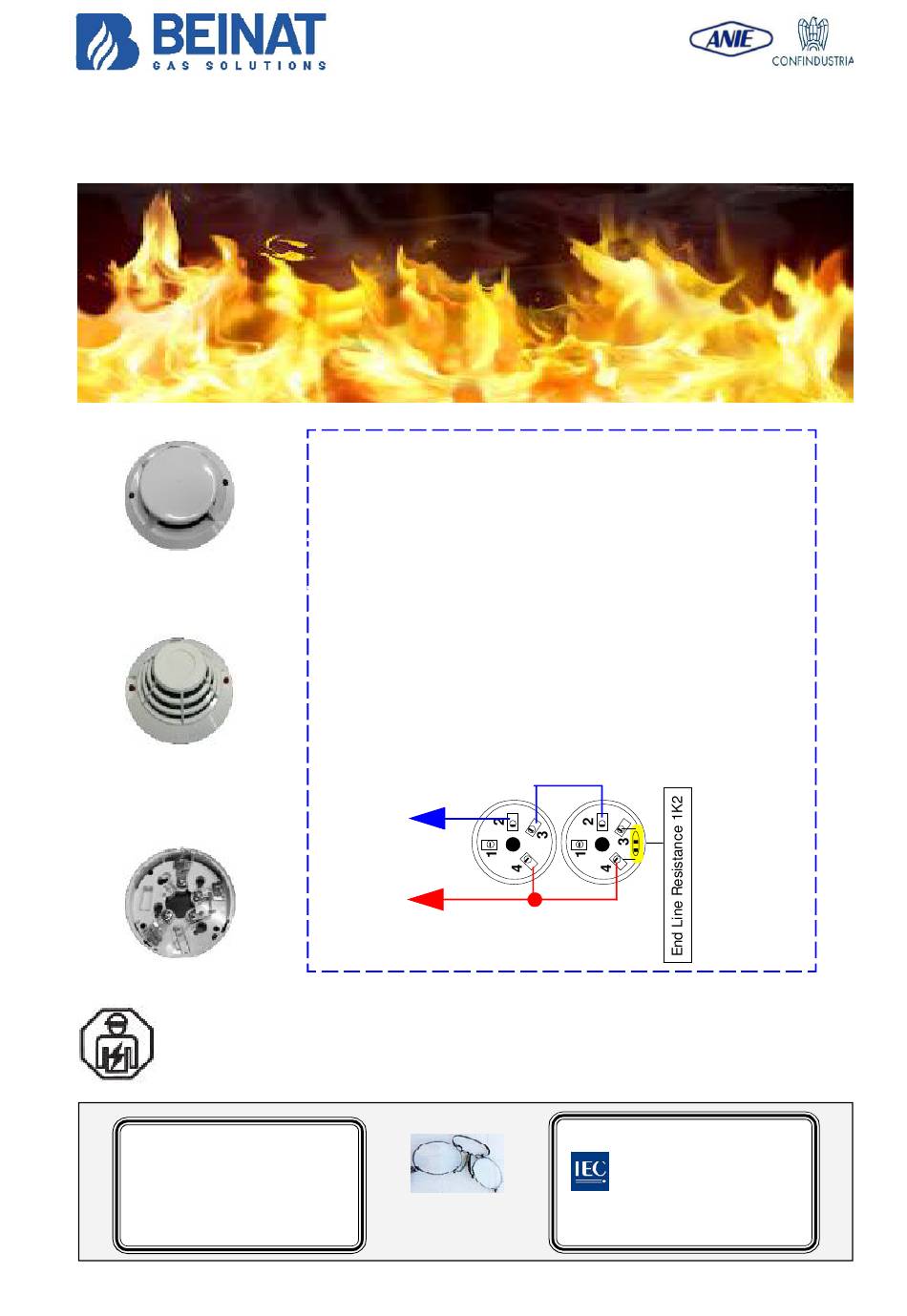

BEINAT RF500 Manual

These sensors mean the detection control unit can detect a fire by sensing the presence of smoke, white from paper
or black from rubber, immediate or cumulative temperature, according to the selection. Installation is very easy with
a bayonet system.
Smoke
Temperature
Socket
Important: Assembly / maintenance of the appliance must be carried out by qualified personnel and in
accordance with applicable laws and regulations.
The manufacturer assumes no responsibility for the use of products that have to comply with particular
environmental and / or installation standards.

Installation
and user guide
Fire Probes Technical Specifications
Power Supply
Power Demand when idle
Power Demand During Alarms
Protected area a 5 mt
Protected area a 4 mt
Protected area a 3 mt
Installation Socket
Installation Socket with Relay
Working Humidity
Degrre protection
Size
RF500 Optical Smoke Sensor
RF570 70 °C Fixed Temperature Sensor
RF540 Temperature increase Sensor
ZF300 Universal Socket
ZF350 Universal Socket with relay
V-
V +
INSTALL IN SAFE
AREA, NO ATEX
Belonging
Fire Prevention
12/24V dc +/-10%
9,77mA
12,20mA
110 mq
120 mq
130 mq
ZF200
ZF350
0-90% non condensed
IP20
105x90x48 6 modules
CONFORMITY
to
EN 54-2
