WoMaster WS101LL-10M Quick Installation Manual

Quick Installation Guide
WS101LL-10M
Outdoor LIQUID LEVEL SENSOR
www.womaster.eu
・Overview
The WS101LL-10M series is an integrated outdoor sensor unit with
high precision and high stability. The product is made of imported
diffused silicon chip, low power ADI professional chip and
microprocessor technology. The monitored data is output through
RS-485 interface by Modbus protocol. The WS101LL sensor unit
accepts 24VDC power input voltage
Model Description
High Integrated Outdoor Liquid Sensor , Modbus RTU
WS101LL-10M
protocol, 2-wire RS-485 ,24VDC,10m
・Package Checklist
WS101LL-10M
✓
1 x Device
✓
1 x QIG
Optional Accessory (for detailed information please refer to the
Datasheet)
・WS101LL-10M Installation

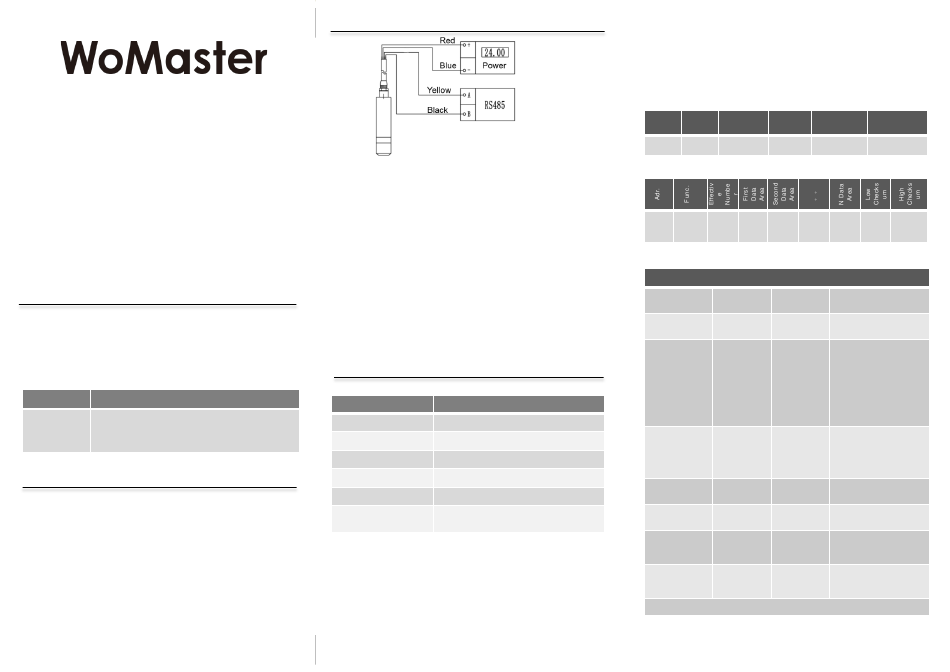

RS485 Connection
1) Connect the 485 cable to the Modbus Host device. Notice the color code
for RS485-A (Yellow) and RS485-B (Black) connect the yellow wire to
RS485-A, and connect the black wire to RS485-B. It will malfunction if
RS485-A/B exchanged.
2) Make sure there is not Modbus ID address conflicted on the same RS-
485 Bus. ( Default: Baud Rate:9600,N,8,1 ; Modbus Slave ID:1)
*Note: RS485A line and RS485B line are strictly forbidden to contact with
the power supply line, otherwise the communication of the electrode will
be permanently damaged.
Power Input Connection
1) Connect the power cable to the device. Brown cable is the positive pole
of the power supply and black cable is the negative pole of the power
supply.
2) Connect the power wires to suitable DC Switching type power supply.
The power input is 24VDC.
・Protocol
• Basic Parameter
Parameter Description
Protocol Modbus RTU 2-wires RS-485
Data Bits 8 bit
Parity Bit No
Stop Bit 1
Error Detection Code CRC
Baud Rate 1200/2400/4800/9600/19200/38400/57600/
115200bps, default setting is 9600bps
• Data Format Definition
Adopt Modbus-RTU communication protocol, the format is as follows:
Initial structure ≥ 4 bytes of time
Address code = 1 byte
Function code = 1 byte
Data area = N bytes
Error check = 16-bit CRC code
End structure ≥ 4 bytes of time
Address code: the starting address of the transmitter, which is unique in
the communication network,(Factory default 0x01).
Function code:for the function indication of the transmitter, this transmitter
only uses the function code 0x03 (read register data).
Data area: Data area is specific communication data.pay attention to the
high byte of 16 bit data is front。
CRC code: Two-byte check code.
• Inquiry Frame
Adr. Func. Register Length
Start Adr. Checksum
1 byte 1 byte 2 byte 2 byte
• Response Frame
。。
1 1 1 2 2
byte byte byte byte byte
• Device Stack List
Modbus Register Information
Parameters Reg. Add. PLC Add.
Function (HEX / DEC) Config.Add
Device ID 0000H / 0001
Storage Add. 0000 40001
Serial Baud 0001H / 0002
Rate Add. 0001 40002
Number of 0003H / 0004
decimal places 0003 40004
Measured 0004H / 0005
value output 0004 40005
000CH / 00013
Zero offset
0012 40013
000FH / 00016
Save
0015 40016
Restore factory 0010H / 00017
parameters 0016 40017
R/W: Read & Write, R/O: Read Only,W/O: Write Only
*Note:After modifying the ID,baud rate and zero offset of the device, it
must be saved to the user area.
Low High
Checksum
1 byte 1 byte
2 1 1
byte byte byte
Note
R/W , System Factory
Default ID: 1
R/W , Default: 3
0-1200
1-2400
2-4800
3-9600
4-19200
5-38400
6-57600
7-115200
R/W , Default: 2
0-####
1-###.#
2-##.##
3-#.###
R/O ,Real Value = Read
Value, unit:meter
R/W , Generally zero
W/O.
0-Save to user area
1-Save to factory area
W/O,
1-Restore factory value
