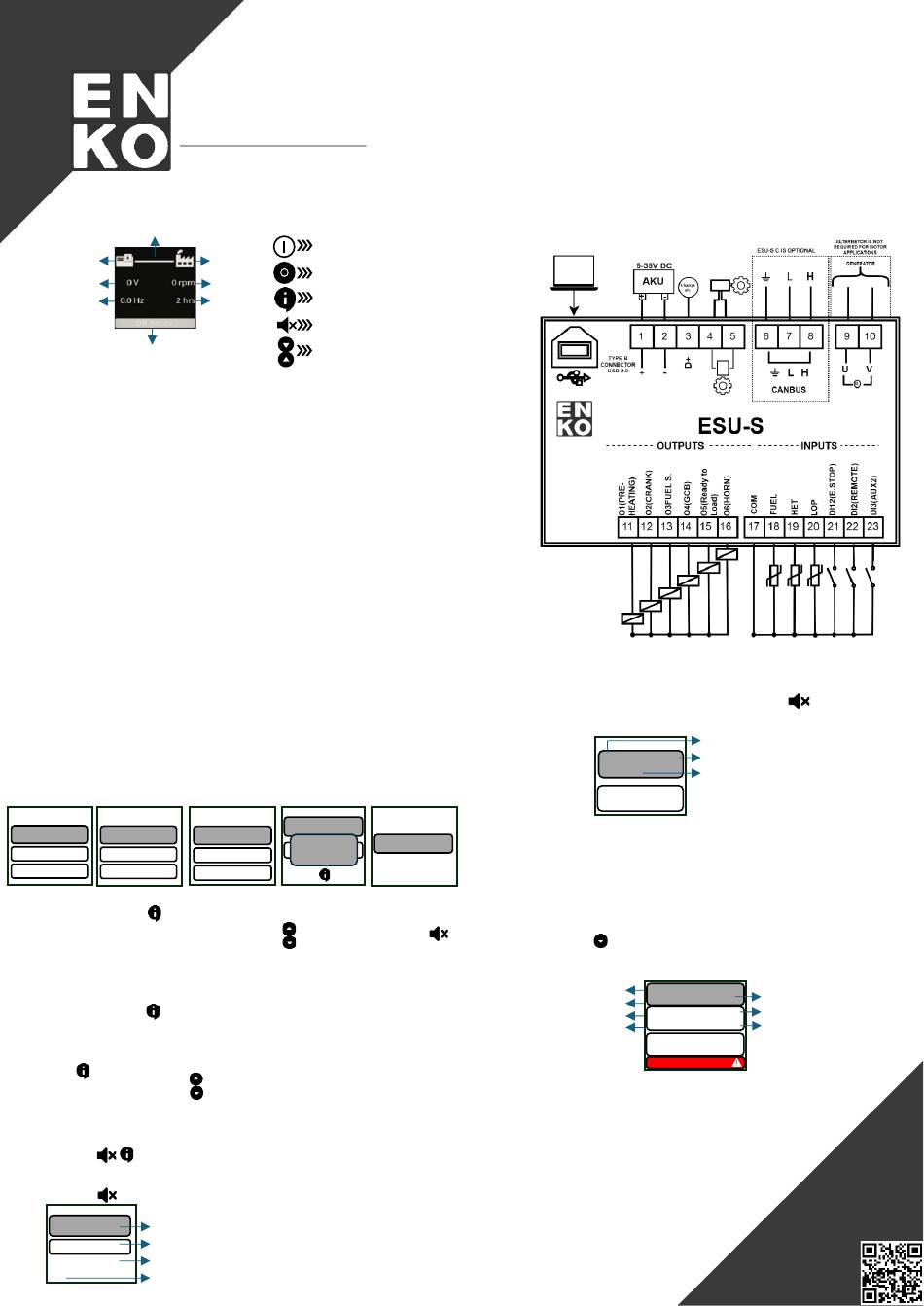

Enko ESU-S Quick Start Manual

ENKO ELEKTRONİK
ESU-S MOTOR CONTROL UNIT
MAIN MENU AND KEY IDENTIFICATION
Bara
Engine
Engine Volt
Engine Frequency
Status Information
START BUTTON: If the device is set to manual mode, the Start
Button is used to start the generator. Additionally, when the
generator is operational in these modes, pressing the Start
Button activates the generator load.
STOP BUTTON: When the Stop Button is pressed, if the
generator load is active, the generator switches to cooling
mode. If the generator load is not active, it transitions directly
to the stop state. Pressing this button puts the device in
Shutdown Mode.
AUTO BUTTON: The Auto Button is used for mode transitions
in the device when short-pressed on Monitoring Pages. It
facilitates switching between Auto Mode and Manual Mode.
Additionally, when short-pressed on Menu Pages, it functions
as the Enter Button.
EXIT BUTTON: Alarm Silence Button: When pressed briefly,
this button silences the specific alarm shown on the active
alarm page in case of any error occurrence. If not on the
active alarm page, when on Monitoring Pages, a brief press
clears all non-critical errors. Moreover, on Menu Pages, a brief
press acts as the Back Button.
MAIN MENU AND USER INTERFACE
Main Menu Main Menu
Parameters Parameters
Events
Events
Digital I/O
Digital I/O
Press the Enter button to enter the main menu. Selection
is changed using the Down and Up
button is used to exit. This allows access to sub-menus.
PARAMETER MODIFICATION
Press the Enter button from the Main Menu and select
the Parameters tab.
Enter the Parameter Number Input tab by pressing the
Enter button.
Use the Up and Down
values.
Navigate through the digits using the Right and Left
buttons, then confirm by pressing the Enter button.
To exit the menu without entering parameters, press and
hold the Exit button.
Prm . No:
Parameter number to change
0002
New parameter number
MAX
MIN 00160
Maximum value the parameter can take.
00080 00600
Minimum that the parameter can Take value.
START
Load
STOP
Rpm
ENTRY AND RIGHT
Working Hours
EXIT LEFT AND RESET
UP (ALARM AND FAULT)
DOWN
Parameters
Prm . No:
Generator 0002
SAVING...
00160
Engine
MIN MAX
Enter Param No
00080 00600
buttons. The Exit
buttons to select the desired
Service time desired to be reset up and down is selected with
the buttons. Then press the exit button
PASSWORD
* * * 0
Wrong Password
Active faults are listed on this page with a red
background color. Immediately below the list of active
faults, the fault log list begins. It opens by pressing the
Down
Active fault number
Active fault name
Fault record number
Name of the fault record

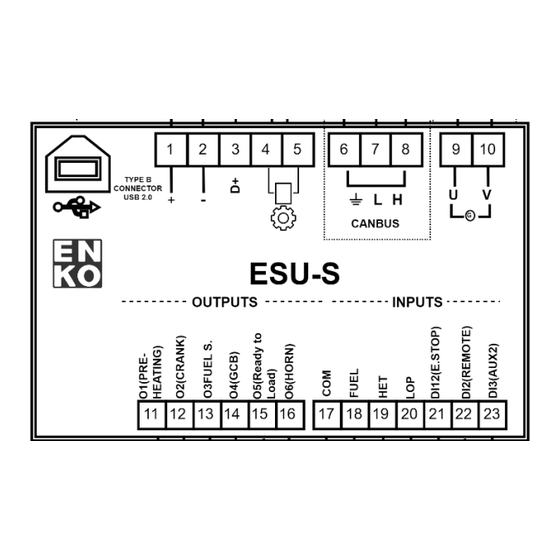

ESU-S CONNECTION DIAGRAM
SERVICE TIME RESETTING
Service Level
Maintenance
Maintenance (Remaining)
LVL0 1348 sa
Air Filter Maintenance name
1000 sa
LVL0
Fuel Change
ACTIVE FAULTS AND FAULT RECORDS
button on the main page.
Alarm01
Emergency Stop
736
Log01
Fuel Level
Log02
Cooling Water Temperature
Alarm
www.enkoelektronik.com
for 5 seconds.
Active faults have a red background
colour (Fault)
Time of fault occurrence
The background colour of the fault
records is black.
