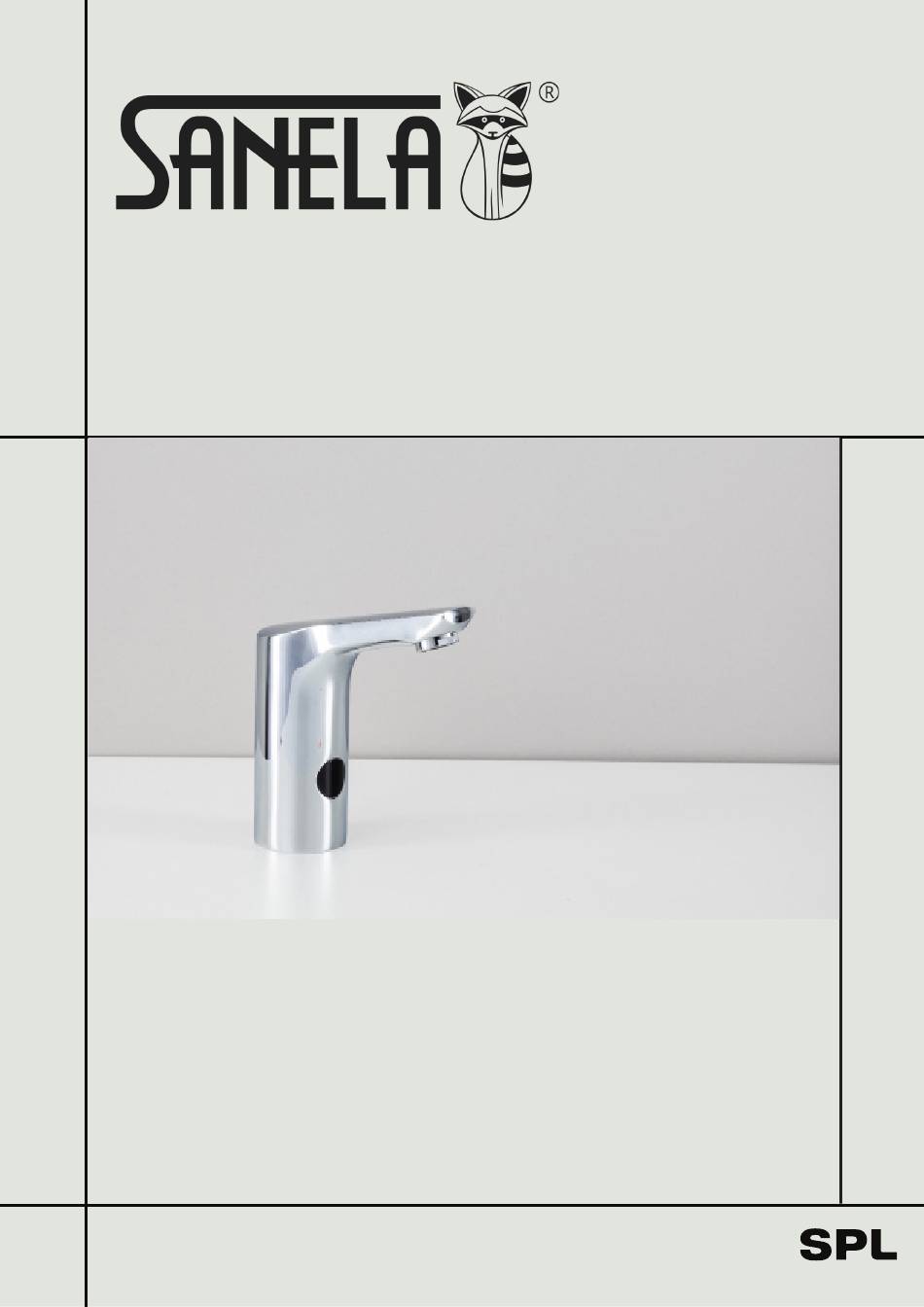

- Page 1 AUSTERE - BATTERY POWERED Installation & maintenance instructions.
-
Page 2: General Information
General Information • Designed for indoor use only. Do not expose to elements of nature. • All plumbing and electrical connections must be made in accordance with AUS / NZ standards. Warnings • Read all instructions before attempting to install this system. It is recommended a qualified &... -
Page 3: Specifications
• Install the angle valve to enable ease of future maintenance. Tempered Water • An appropriate thermostatic mixing valve (TMV3) should be installed to ensure a safe regulated water temperature. These are available from SPL – SST THERMO VALVE splwashrooms.co.nz... -
Page 4: Standard Functions
Components Faucet components o-ring 4 X AA batteries & gasket Angle valve Connection hose mounting plate Filter Solenoid valve hex nut Battery housing to solenoid valve mounting screws to battery housing Standard Functions Hands within active Hands removed from range, water flows active range, water stops SENSING RANGE Operating pressure range... -
Page 5: Faucet Installation
Faucet Installation Install 1/2” angle valve Flush lines thoroughly Fit mounting screws, o-ring and rubber gasket Pass mounting screws, hose and electrical connections through vanity. Fit filter into angle valve Fit mounting plate and hex nuts splwashrooms.co.nz... - Page 6 Fit remaining connection hose and solenoid. Note Connect faucet to solenoid valve arrow on solenoid valve for water flow direction Turn angle valve on and check all connections Remove lid of battery housing Insert 4 x AA batteries into housing ensuring correct Place batteries back in housing and close lid polarity securely...
- Page 7 Secure battery housing to the wall using the adhe- Connect battery to faucet by aligning guide lines on sive strips provided. respective cables Once the battery housing is connected, faucet will automatically adjust sensing range during first 10 seconds. The LED on sensor will continually flash, do not come in active range during this...
-
Page 8: Maintenance
Note: If you require to modify any of the factory settings please request the Sanela remote SLD03. Activation Range Time Delay Hygienic Flush Maintenance • It is recommended that the solenoid valve and all filters be inspected for foreign debris and cleaned annually (more frequently if necessary) •... -
Page 9: Troubleshooting
Troubleshooting Symptom Possible Cause Corrective Action No water flow - a. Water supply a. Ensure water at source is LED on sensor b. Water connections b. Ensure connections flashing red when c. Clean filter (angle valve c. Filter is clogged hands are within d. - Page 10 SPL (2021) Limited warrants that should any part of the sensor tap fail within the given warranty period (24 months), it will be remedied by SPL. The tap should be returned to SPL (2021) Limited for all warranty claims.
