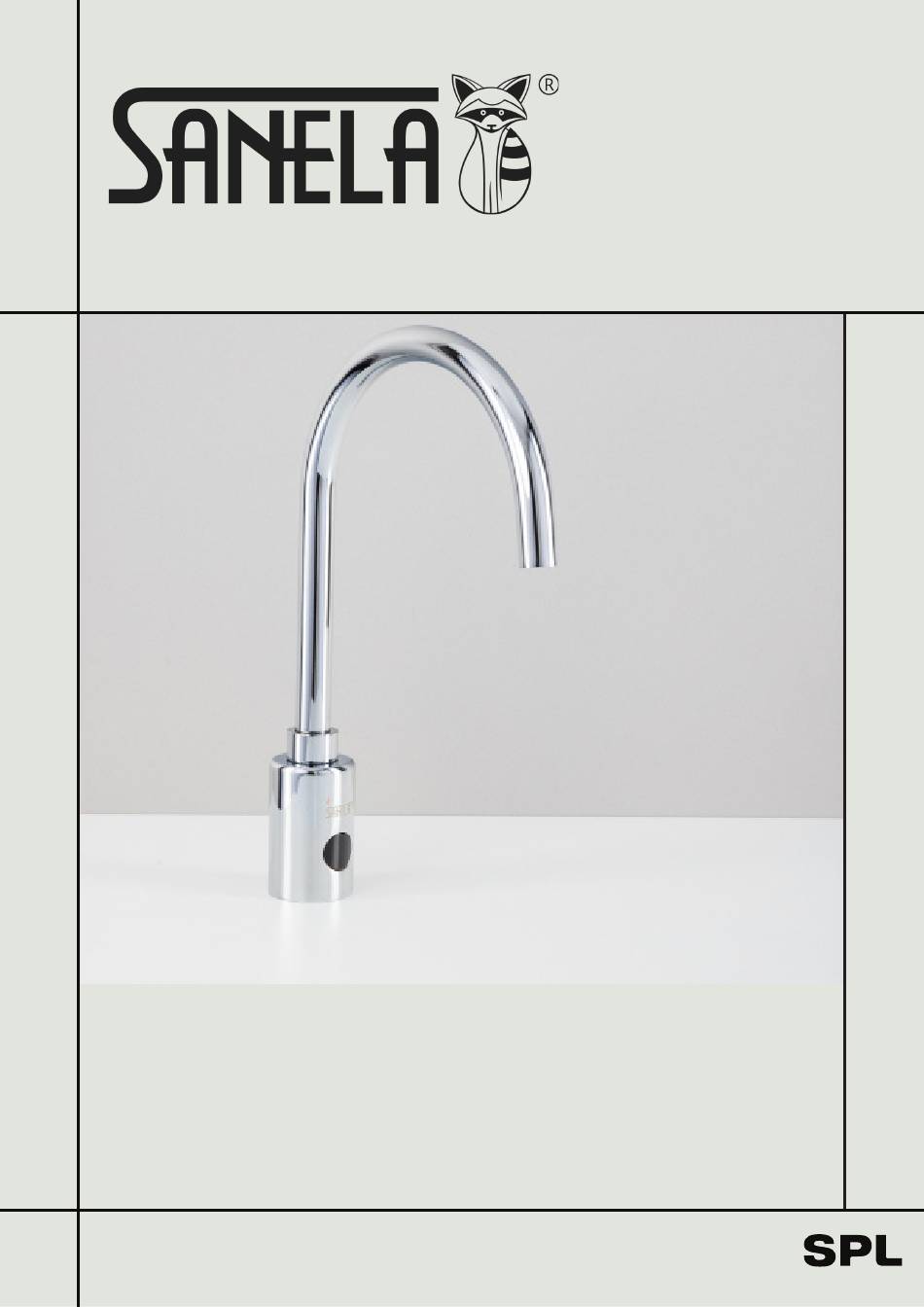

- Page 1 HUSA - MAINS POWER Installation & maintenance instructions.
-
Page 2: General Information
General Information • Designed for indoor use only. Do not expose to elements of nature. • All plumbing and electrical connection must be made in accordance with AUS / NZ standards. Warnings • Read all instructions before attempting to install this system. It is recommended a qualified &... -
Page 3: Specifications
• Install the angel valve to enable ease of future maintenance. Tempered Water • An appropriate thermostatic mixing valve (TMV3) should be installed to ensure a safe regulated water temperature. These are available from SPL – SST THERMO VALVE splwashrooms.co.nz... -
Page 4: Standard Functions
Components Faucet spout Faucet base Mounting plate Gasket Hex nut Connection hose Solenoid valve Connection hoses Washer Filter wago connectors to external to solenoid valve Angel valves (x2) power supply adapter Standard Functions Hands within active Hands removed from range, water flows active range, water stops SENSING RANGE Operating pressure range... -
Page 5: External Power Supply Installation
External Power Supply Installation Input 230V / 50 Hz Output 24 V DC IP rating IP 55 Operating 5°C - 40°C temperature Rated power 10W 230V input 24V output (to faucet) Important To be installed in accordance with all NZ electrical regulations. It must be carried out by a qualified professional. - Page 6 Drill and insert appropriate wall anchors if required Remove cover from mounting box Fix mounting box to wall Pass mains (230V) power supply into mounting box via grommet and terminate accordingly Note: Power supply should be secured via current breaker before the external supply (not included) Reinstall cover of mouting box and ensure sealed.
-
Page 7: Faucet Installation
Faucet Installation From external power supply Install 1/2” angel valve(s) Flush lines thoroughly Connect faucet, spout and base together and insert mounting bracket Fit connection hose into base of faucet Pass mounting screw, hose and electrical connections through vanity splwashrooms.co.nz... - Page 8 Fit remaining gasket, mounting plate and hex nut Fit remaining connection hose and solenoid. Note arrow on solenoid valve for water flow direction Fit filter into angel valve and connect hoses Connect faucet to solenoid valve Connect external power (24V outlet) supply to wago Turn angel valve on and check all connections connectors on faucet (Note polarity: brown to brown, white to white).
- Page 9 It is necessary, for the proper function, to keep the unit under constant voltage (don´t connect the power supply unit behind the switch into the light circuit) Do not come within active range Turn power supply on Once power turned on, faucet will automatically adjust sensing range during first 10 seconds.
-
Page 10: Maintenance
Note: If you require to modify any of the factory settings please request the Sanela remote SLD03. Activation Range Time Delay Hygienic Flush Maintenance • It is recommended that the solenoid valve and all filters be inspected for foreign debris and cleaned annually (more frequently if necessary) •... -
Page 11: Troubleshooting
Troubleshooting Symptom Possible Cause Corrective Action No water flow - a. Water supply a. Ensure water at source is LED on sensor b. Water connections b. Ensure connections flashing red when c. Clean filter (angel valve c. Filter is clogged hands are within d. - Page 12 SPL (2021) Limited warrants that should any part of the sensor tap fail within the given warranty period (24 months), it will be remedied by SPL. The tap should be returned to SPL (2021) Limited for all warranty claims.
