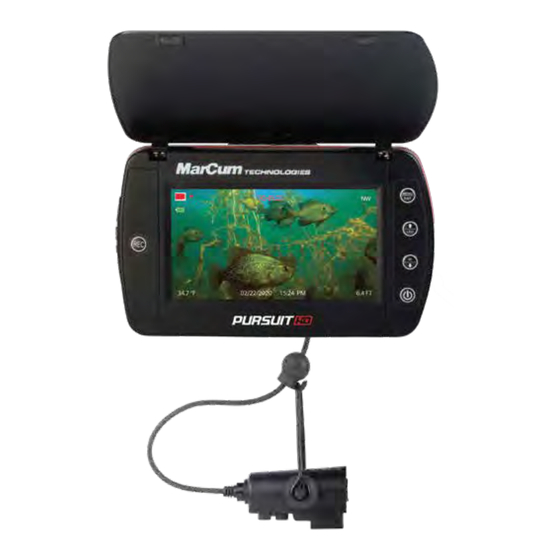

MARCUM PURSUIT HD L Quick Start Manual

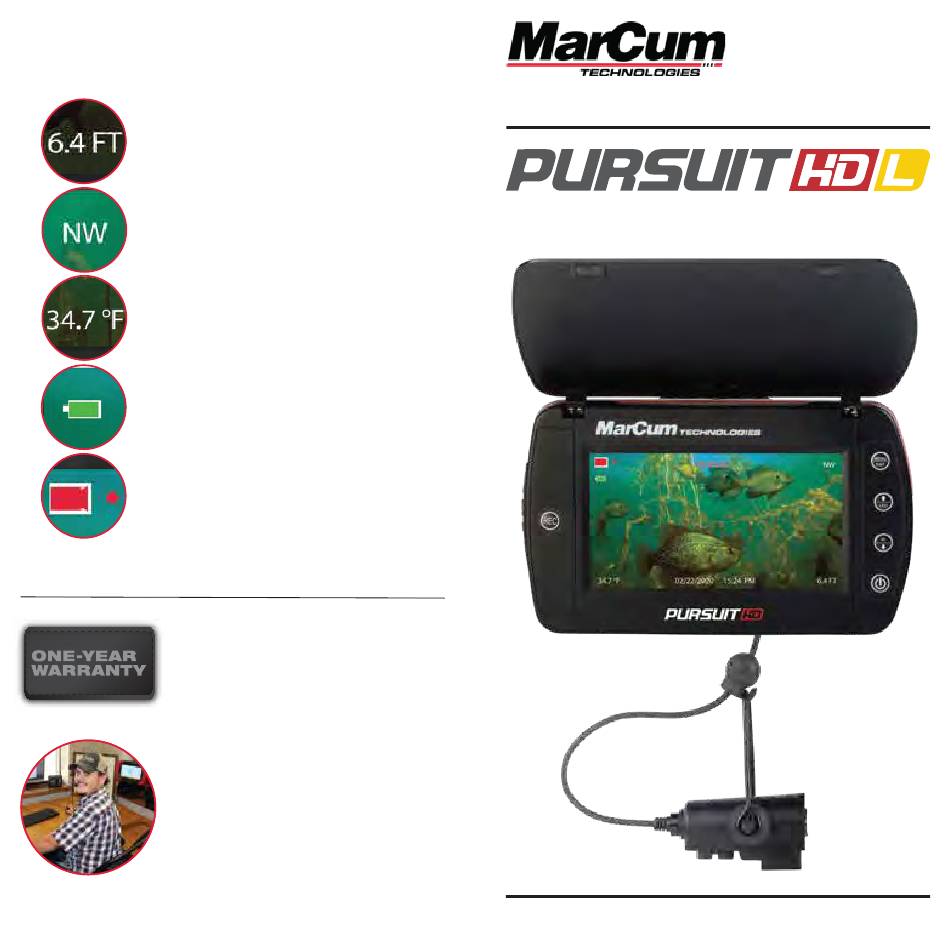

OSD - On-Screen Display
The PURSUIT HD L camera system features Five
On-Screen Displays (OSD), Depth, Camera Direction,
Temperature, Battery Indicator, and Recording Status.
Depth
A depth OSD will display in the lower right hand corner of the
screen. This feature alerts the user of the depth of the
camera. Camera depth will only show when in the water.
Outside of water it should read 0.
Camera Direction
The direction the camera is facing is displayed in the upper
right hand corner of the screen. This direction will display as
directions of the compass (N, NE, E, etc.) If the camera
direction is not accurate it can be calibrated by following the
instructions in the SYSTEM SETTING menu.
Temperature
The current temperature of the water will display in the lower
left hand corner of the screen. The units can be changed
from Fahrenheit to Celsius, or vice versa in the MONITOR
SETTING menu. The camera will not detect the air tempera-
ture correctly.
Battery Status Indicator
The PURSUIT HD L has an on-screen display of the battery
status found in the upper left side of the video image. Once
the video image starts the battery status indicator will detail
a series of green bars. Three full green bars will indicate a
full charge.
Recording Status
The PURSUIT HD L has an on-screen display found in the
upper left side of the video image. Once the REC has been
pressed the red camera icon will appear in top left corner of
the screen, indicating that the camera has begun recording.
HD Video Out Capable
The PURSUIT HD L comes with an HD Video Out adapter
cable so you can watch the action on your big screen inside
of a hard sided house.
Warranty
MarCum warranties this product to be free from
defects in materials and workmanship for one year
from the date of purchase. This warranty applies to
customers who properly complete the Online product
registration form found on the MarCum Technologies
Website:
Service
If your system is malfunctioning, check the support
section of our website. You may find that the solution
to your problem is something you can resolve yourself.
If you need to send it in, there is no need to contact our
office. Getting repairs made is as simple as going to
our website, www.MarCumTech.com clicking the
support tab and then filling out the MarCum Warranty
claim.
Manufacturer: Electronics Technologies LLC, 3943 Quebec Ave N Minneapolis, MN 55427
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Replacement of a battery
with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types); Disposal of a battery into fire or a
hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion; Leaving a battery in an extremely high temperature
surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; A battery subjected to extremely low air
pressure that may result in an explosion or the leakage of flammable liquid or gas.
