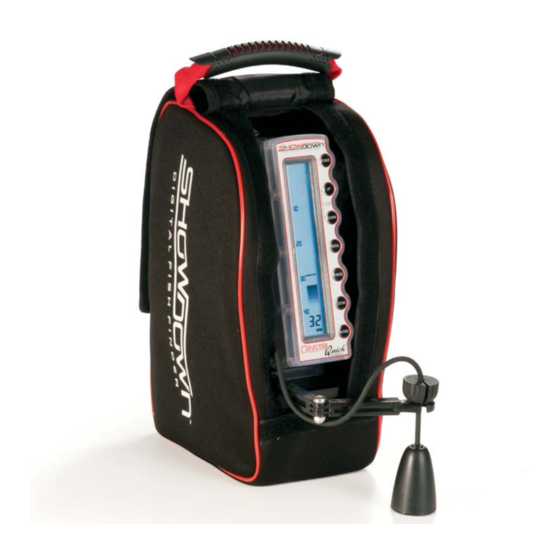

MARCUM Showdown 5.6 User Manual

Digital fish finder
Hide thumbs

Advertisement

Quick Links

Download this manual
Showdown 5.6
Digital Fish Finder
User Manual
www.marcumtech.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Showdown 5.6 and is the answer not in the manual?

Questions and answers

Summary of Contents for MARCUM Showdown 5.6

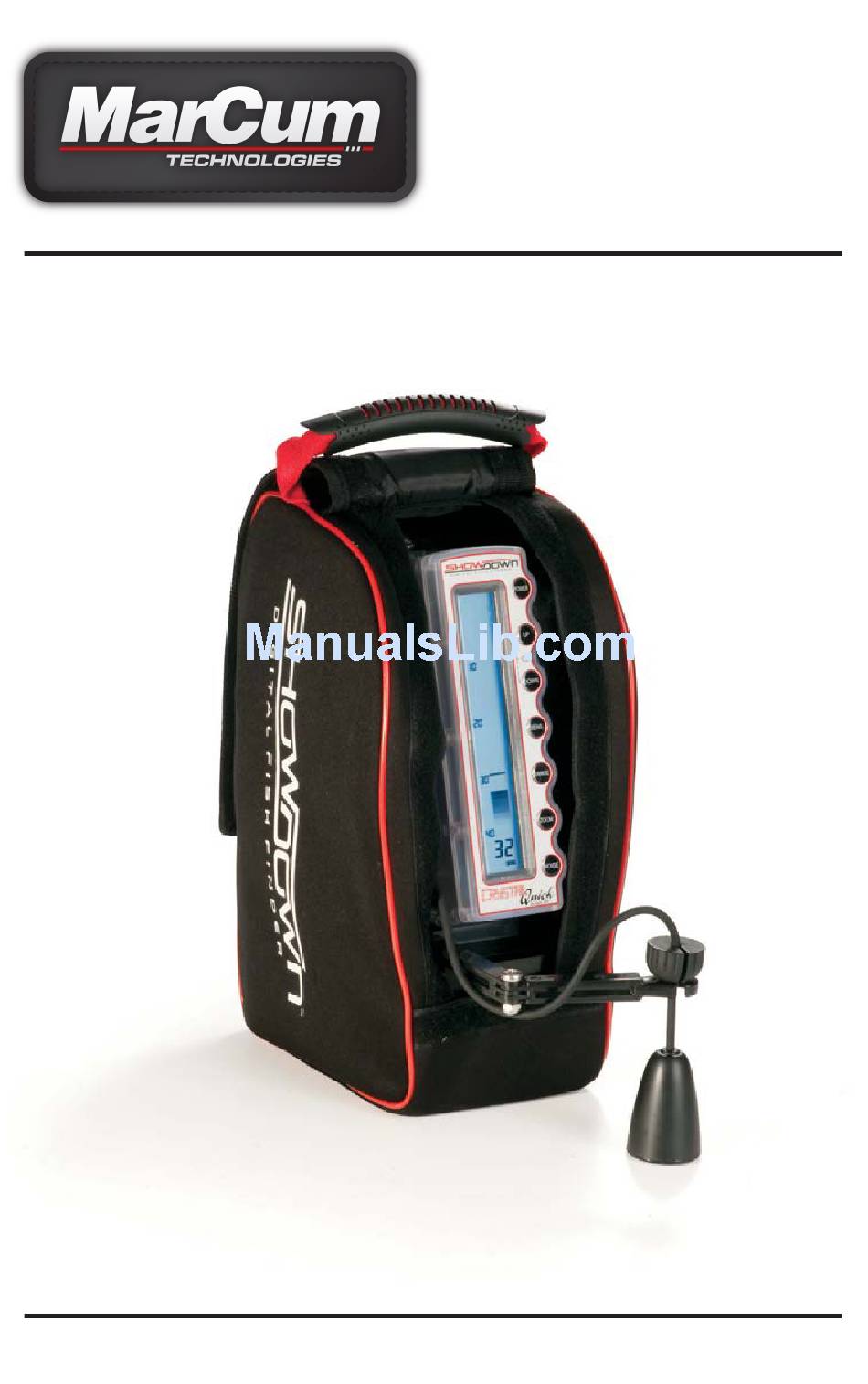

  • Page 1 Showdown 5.6 Digital Fish Finder User Manual www.marcumtech.com...
  • Page 2 Nor will you have to guess at bottom or depth itself. The ShowDown 5.6 immediately locks on to the proper depth range, while also displaying digital depth at all times. In Your Showdown 5.6 Package •...

  • Page 3: Getting Started

    (6) Route transducer cable through the adjustable transducer turning arm. Affix rubber cable stopper at the desired depth above transducer. (7) Place your Showdown 5.6 on a relatively level spot on the ice, extend the transducer arm over ice hole, place the transducer into the water, and turn the unit ON by pressing the POWER key.
  • Page 4 Charging the Battery in your Showdown Your Marcum system comes with a 3-stage battery charger. This style of charger has proven to be the most effective and easiest to use of all charging systems available. Because this is a 3-stage charger, there is no danger of overcharging your battery.

  • Page 5: Showdown 5.6 Features

    UP or DOWN keys to adjust levels. POWER ON— To turn your Showdown 5.6 POWER to ON, press and hold the POWER key for two seconds. OFF— To turn your Showdown 5.6 POWER to OFF, press and hold POWER for two seconds.
  • Page 6 You will now see the “ICE” mode indicator appear at the top of the Showdown 5.6 Dual Beam display screen. In ICE mode, an internal LCD heater is initiated. To exit ICE MODE and return Showdown 5.6 to normal operating mode, press the UP and DOWN keys simultaneously.
  • Page 7 “A” icon at the bottom of the screen. NOISE (Interference Rejection) — The unit’s Noise Rejection feature allows you to use your Showdown 5.6 in close proximity to other sonar units, trolling motors, and other electronic devices without experiencing excessive signal interference.
  • Page 8 32’ of water. It also allows you to adjust and learn various sonar settings before you get out fishing. To turn Simulator mode off, it is necessary to turn your Showdown 5.6 power OFF by holding down the POWER button again.
  • Page 9 Reading the ShowDown 5.6 sonar signals: The ShowDown 5.6 displays the water column in its natural state (vertically), rather than in a circular configuration as with traditional dial flashers. On the ShowDown, top is the surface, and bottom is the lake bottom. Bottom appears as a dark solid bar above decreasingly solid bars below.
  • Page 10 Versa Electronics www.marcumtech.com The best way to find your lure on the ShowDown 5.6 screen is to simply drop your lure down to bottom, then reel it up about a foot. You should see a single solid band appear above bottom to signify your lure. If you do not see this, adjust the sonar Sensitivity by pressing the SENS button and the UP/DOWN keys (see SENSITVITY).

  • Page 11: Battery Charger Troubleshooting

    Caring For Your ShowDown 5.6 Stow your ShowDown 5.6 properly when not in use. Turn sonar power off, and disconnect Power plug from back of unit. If possible, gently wipe excess water or moisture from the ShowDown 5.6 screen and transducer arm with a soft cloth.

  • Page 12: How To Obtain Service

    An original sales receipt dated within the warranty period is required for all warranty claims. In an effort to best serve our customers, Marcum Technologies has set a standardized battery warranty policy. Battery warranty coverage requires a proof of purchase.
  • Page 13 Marcum Technologies. It is the customer’s full responsibility to track their products sent out in the mail or other forms of delivery service. Marcum Technologies will not be liable for packages lost en route to us. Unless specified otherwise, do not include batteries or other accessories when returning the product for repair.
  • Page 14 Versa Electronics www.marcumtech.com OTHER MARCUM PRODUCTS Here are some other great systems from Marcum. These items can be pur- chased from one of our many fine retailers, or direct from us at marcumtech.com LX-5 The LX-5 incorporates the latest in sonar technology, featuring a patented...
  • Page 15 Marcum Technologies 3943 Quebec Avenue North Minneapolis, Minnesota 55427 MarCum User Manuals are available for download from www.marcumtech.com.
