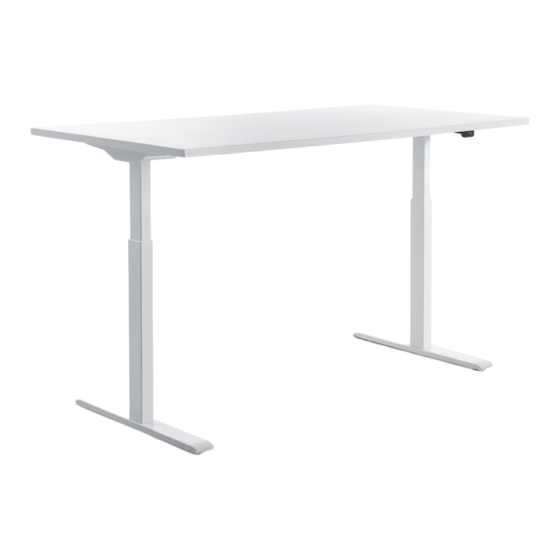

topstar Smart TTE10060GS Assembly And Operating Instructions Manual

topstar Smart TTE10060GS Assembly And Operating Instructions Manual

Sit-stand desk

Advertisement

Quick Links

Steh-Sitz Tisch SMART
[EN] Assembly and operating instructions
[DE] Montage- und Gebrauchsanleitung

Advertisement

loading
Need help?

Need help?

Do you have a question about the Smart TTE10060GS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for topstar Smart TTE10060GS

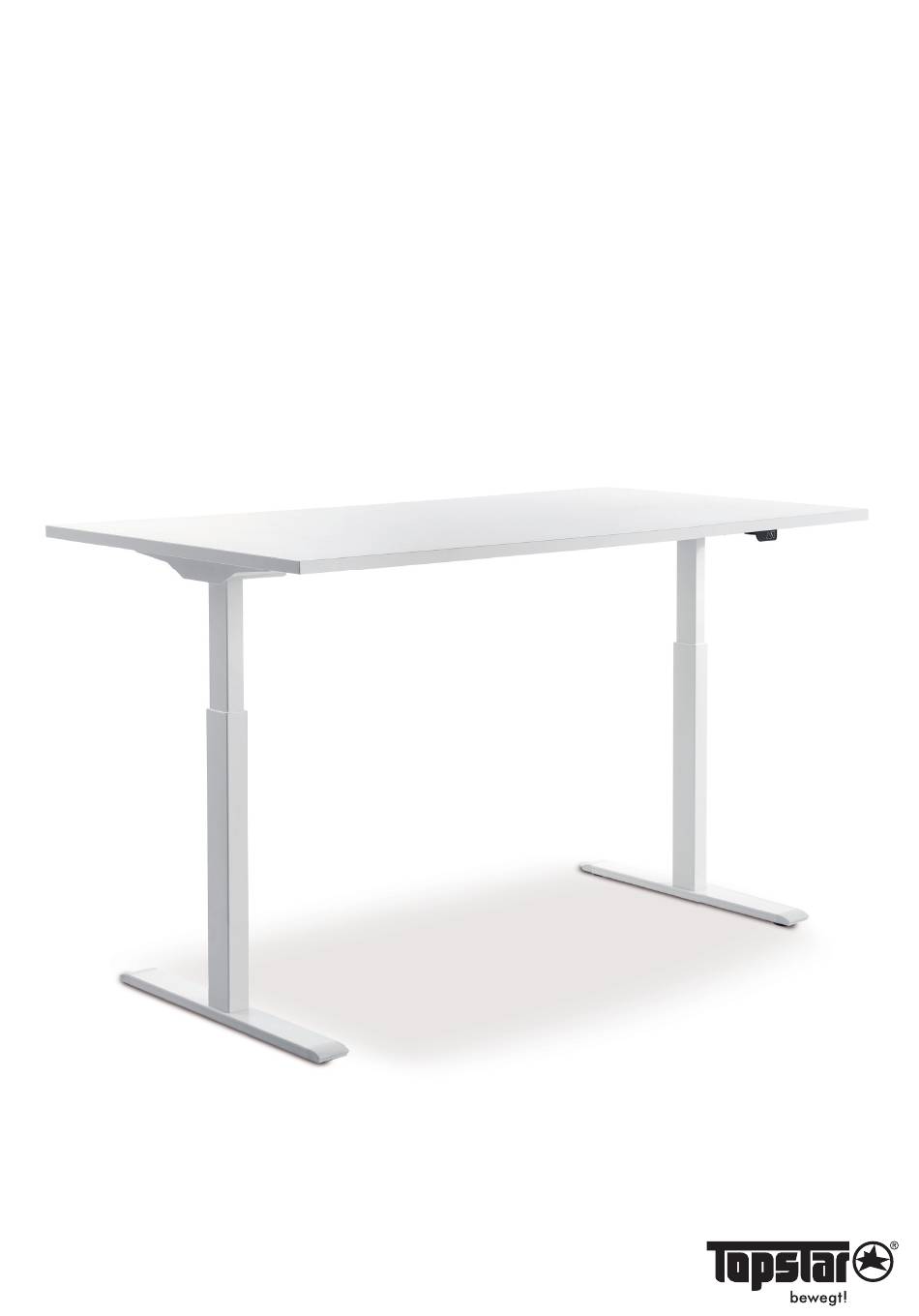

  • Page 1 Steh-Sitz Tisch SMART [EN] Assembly and operating instructions [DE] Montage- und Gebrauchsanleitung...
  • Page 2 SMART - ELEKTR. VERSTELLBARER STEH-SITZ TISCH ARTIKELNUMMER: TTE10060GS TTE10060GW TTE10060SS TTE10060SW TTE10060WS TTE10060WW TTE12060GS TTE12060GW TTE12060SS TTE12060SW TTE12060WS TTE12060WW TTE12080GB TTE12080GW TTE12080SB TTE12080SW TTE12080WB TTE12080WW TTE14060GS TTE14060GW TTE14060SS TTE14060SW TTE14060WS TTE14060WW TTE16060GS TTE16060GW TTE16060SS TTE16060SW TTE16060WS TTE16060WW TTE16080GB TTE16080GW TTE16080SB TTE16080SW TTE16080WB TTE16080WW...
  • Page 3 Our height adjustbale desk will help you be healthier and more productive at your desk. Have fun with your product! Your Topstar-Team Lieber Kunde, vielen Dank für Deinen Kauf und Dein uns entgegengebrachtes Vertrauen. Mit unserem Schreibtisch haben wir ein europäisches Qualitätsprodukt entwickelt und hergestellt.
  • Page 4 [EN] Parts List Pakage 1 [DE] Teileliste Paket 1 [EN] Parts List Pakage 2 [DE] Teileliste Paket 2 [EN] 2x side parts 1x screw box 1x control box 1x power cable 1x control switch 2x table legs incl. connecting cable 2x table feet 4x crossbars [DE] 2x Seitenteile...
  • Page 5: Before Assembly

    For the assembly of the table we recommend a cordless screwdriver. In case of damage or defects to your table, please contact your Dealer or our customer service: kundenservice@topstar.de. Please document your request with pictures and/or a short description.
  • Page 6 [EN] 1. Please arrange the individual components as shown. When mounting a 100cm table top you need two of the crossbars instead of the four shown crossbars. (See page 11) 2. Please fix the traverses to the table legs with a total of 8 screws. Pay attention to a right-angled alignment.
  • Page 7 [EN] 1. Carefully place the tabletop on a surface that is gentle to the surface. The drill holes mark the side where the table frame will be mounted. 2. Carefully lift the table frame onto the table top and center it. 3.
  • Page 8 [EN] Conntect Crossbars Connect the crossbars using the included screws. You can skip this step if you use a 100cm table top. [DE] Quertraversen verbinden Verbinde die Quertraversen mithilfe der beigelegten Schrauben. Du kannst diesen Schritt überspringen, wenn du eine 100cm Tischplatte nutzt. je 2x...
  • Page 9 [EN] Mount the table feet and screw the floor glides together. [DE] Montiere die Tischfüße und verschraube die Bodengleiter.
  • Page 10 [DE] 1. Position the control box centrally between the two crossbars and fasten it to the table top using the two screws supplied. 2. Position the control switch on the table top according to your wishes and fasten it with the two screws provided. 3.
  • Page 11 [EN] Your Desk is now ready for use. Please refer to our Quick Start Guide on page 15 and the official instructions for use and care on the following pages. [DE] Dein Schreibtisch ist jetzt einsatzbereit. Bitte beachte bei der Inbetrieb- nahme unsere Schnellanleistung auf Seite 18 und die offizielle Gebrauchsanleitung und Pflegehinweise auf den nachfolgenden Seiten.
  • Page 13 9 minutes before they can please see site 02 be switched on again. This table may only be used with the supplied control switch or Topstar-certified accessories. It is the sole responsibility of anyone installing, using, repairing or servicing this desk to read this manual carefully.
  • Page 14: China Rohs

    527-2:2016 Office furniture - Worktables - Part 2: Requirements for safety, strength and durabi- If the desk still does not work, contact Topstar lity, EN 1730 Furniture - Tables - Test methods Customer Service. for stability, strength and durability, ANSI/BIFMA X5.5-2014 - Desk products - Applicable para-...
  • Page 15 QUICK GUIDE Manual reset / first start-up Perform a reset by simultaneously holding the up and down buttons pressed for at least 8 seconds. Press and hold the buttons as the desk slowly moves to its lowest level. The reset is complete when the desk has stopped at the lowest point.
  • Page 16 83 kg. Das System kann höchstens 1 Minute lang kontinuierlich betrieben werden. Die Dieser Tisch darf nur zusammen mit dem Motoren müssen ca. 9 Minuten stillstehen, bevor mitgelieferten Bedienschalter oder von Topstar sie wieder eingeschaltet werden können. zertifizierten Zubhörprodukten verwendet werden.
  • Page 17 Festlegung von Stabilität, Stärke und Haltbarkeit, ANSI/BIFMA X5.5-2014 - Schreibtischprodukte - Funktioniert der Schreibtisch immer noch nicht, anwendbare Paragraphen wenden Sie sich bitte an den Topstar Kunden- dienst. Die Farbe/Oberfläche des Gestells ist zugelassen nach Standards: EN 12720:2009+A1:2013 Möbel Service –...
  • Page 18 SCHNELLANLEITUNG Manuelles Zurücksetzen / erste Inbetriebnahme Führen Sie einen Reset (ein Zurücksetzen) durch, indem Sie gleichzeitig die Auf- und Ab-Tasten für mindestens 8 Sekunden gepresst halten. Halten Sie die Tasten gedrückt, während sich der Schreibtisch langsam auf seine tiefste Ebene bewegt. Der Reset ist abgeschlossen, wenn der Schreibtisch am tiefs- ten Punkt angehalten hat.
