RHOX CGR-715 Operator's Manual

Serial number: _______________________________________
Purchase date: _______________________________________
INSTRUCTIONS:
Thank you for purchasing our product. Please read the entire instructions before use. The CGR-715 LiFePo4, 48V 15A
charger is an economic, high quality 100-240VAC balance charger for RHOX 16 CELL (51.2V) Lithium Iron Phosphate
batteries.
The charging program consists of 3 steps: constant current, constant voltage and float charging. The chargers provide
protection against overload, over-voltage, over-heating, short circuit and reverse polarity connections. The RHOX battery
pack's internal BMS (Battery Management System) will turn the charger ON and OFF as required.
APPROVED RHOX BATTERIES:
BAT-12100, 12.8V 100Amphr LiFePo4, 4x 12V pack for 48V (15Amp charger = 7-10 Hour from full discharge)
•
BAT-48100, 51.2V 100Amphr LiFePo4, single 48V pack (15Amp charger 7-10 Hour from full discharge)
•
BAT-48160, 51.2V 160Amphr LiFePo4, single 48V pack (15Amp charger 10-14 Hour from full discharge)
•
PLUGS:
Your charger ships with a short cord SB50 GREY quick disconnect. The Vehicle Gender specific cords for Club Car,
E-Z-GO, Yamaha, are ordered separately. Please ensure SB50 QD connectors are tight before use. Observe polarity!

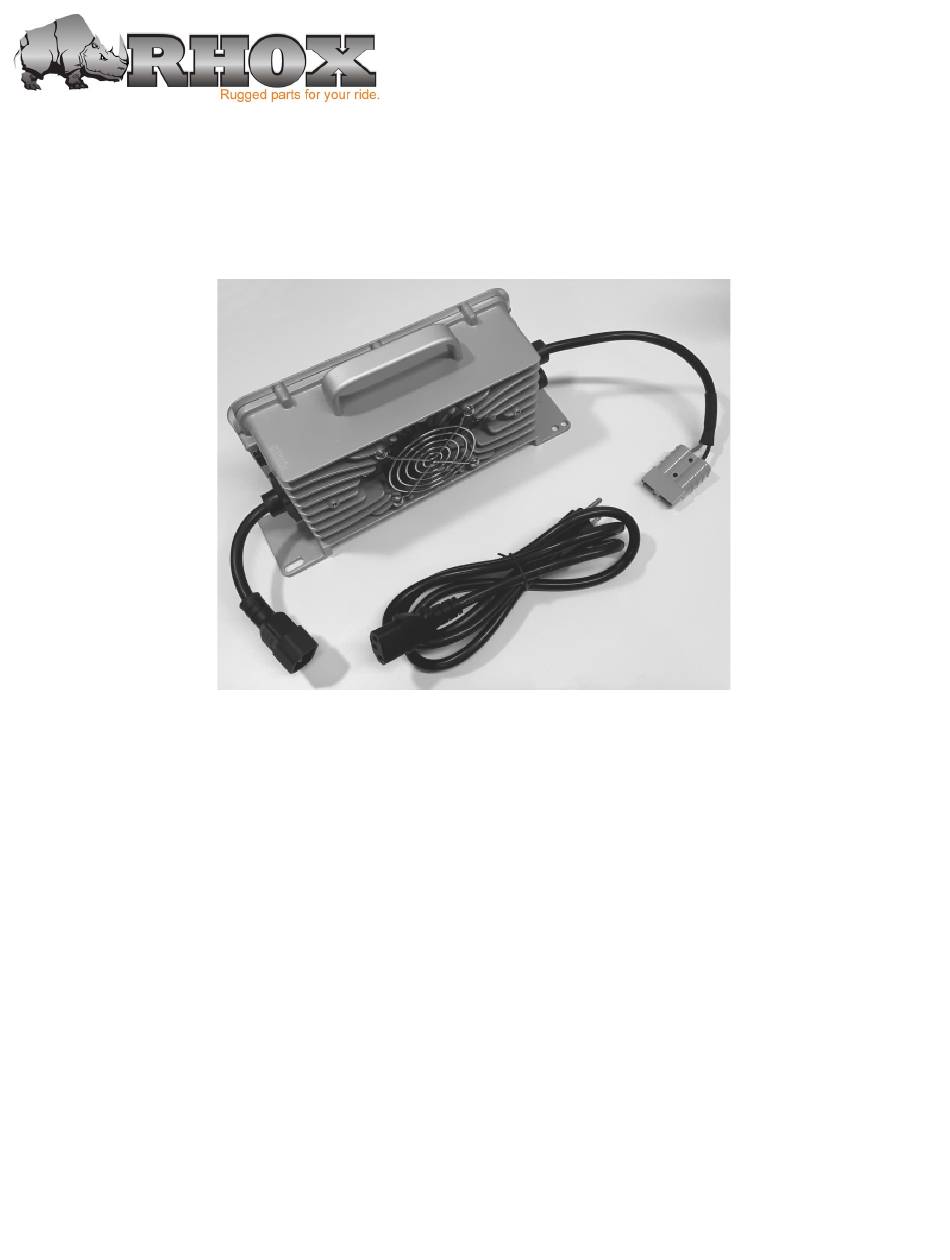

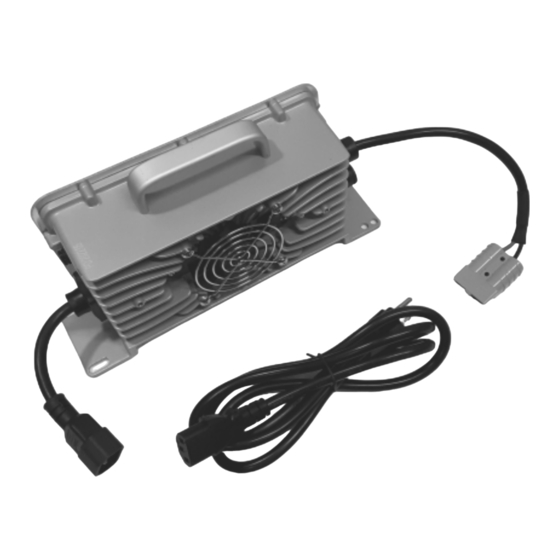

CGR-715
48V, 15A LiFePO4 Battery Charger
For Lithium Batteries
OPERATORS MANUAL
Rev082223-C 1 of 4
