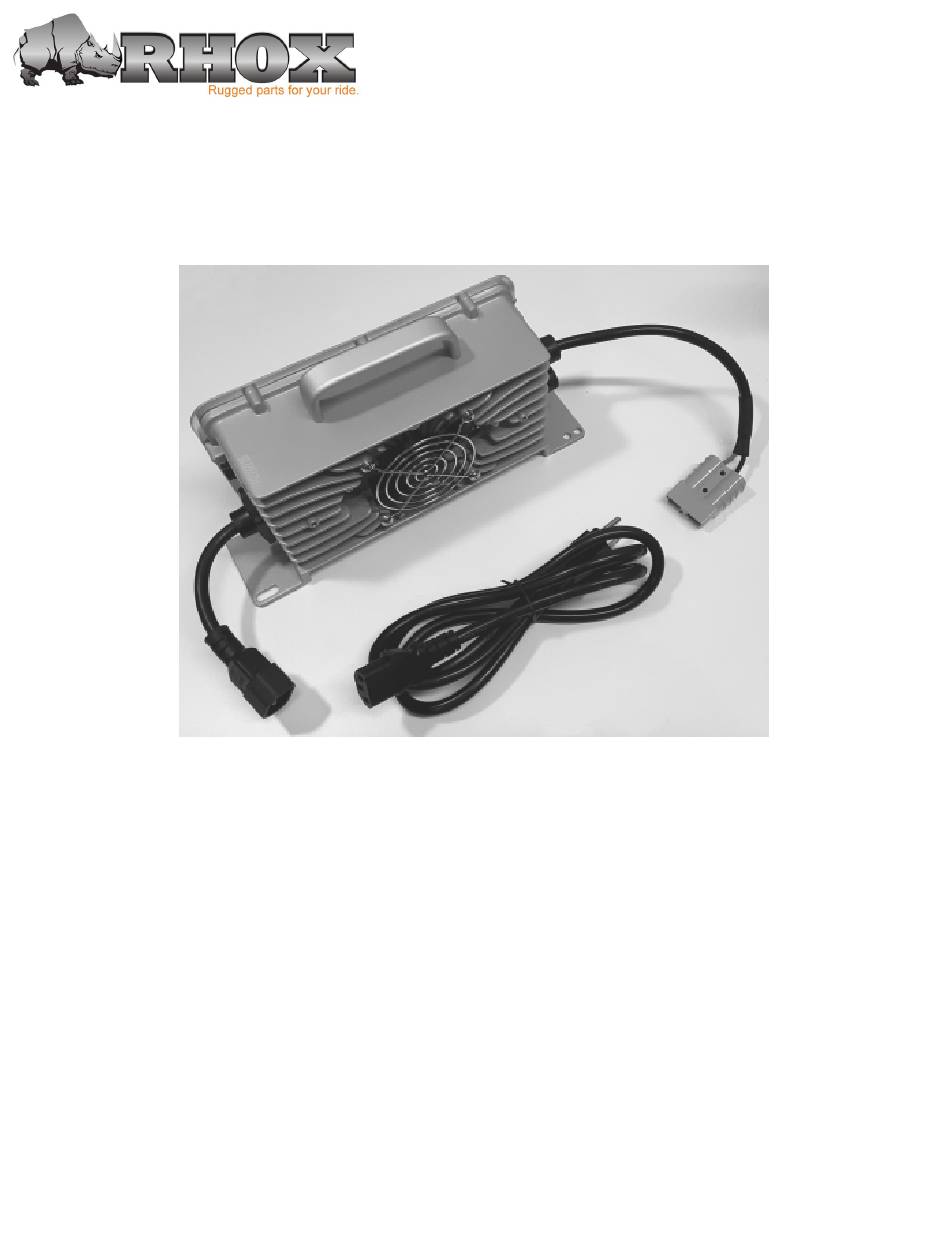

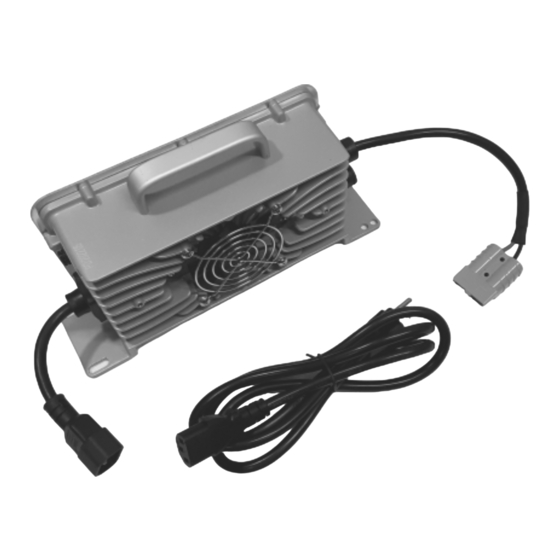

48V 15A LEAD ACID Battery Charger

Part Number: CGR-630

Description: CHGR-4815-LA (Lead Acid)

OPERATORS MANUAL

Serial number: _______________________________________

Purchase date: _______________________________________

INSTRUCTIONS:

Thank you for purchasing our product. Please read the entire instructions before use. The CGR-630 Lead Acid 48V 15A

charger is an economic, high quality 100-240V AC SMART charger for Lead Acid batteries.

The charging program consists of 5 STAGES: Pre-charge, constant current mode 1, constant current mode 2, constant

voltage, and float mode charging. The chargers provide protection against overload, over-voltage, over-heating, short

circuit and reverse polarity connections. The charger also has a 15 DAY recharge to keep your batteries topped off.

PLUGS:

Your charger ships with a short cord SB50 GREY quick disconnect. The Vehicle Gender specific cords for Club Car,

E-Z-GO, Yamaha, are ordered separately. Please ensure SB50 QD connectors are tight before use. Observe polarity!

CGR-630_Operators Manual_CHGR-4815-LA_Rev A_111423.docx

11/14/2023 4:55 PM

1 of 4

Need help?

Do you have a question about the CGR-630 and is the answer not in the manual?

Page 1 Purchase date: _______________________________________ INSTRUCTIONS: Thank you for purchasing our product. Please read the entire instructions before use. The CGR-630 Lead Acid 48V 15A charger is an economic, high quality 100-240V AC SMART charger for Lead Acid batteries. The charging program consists of 5 STAGES: Pre-charge, constant current mode 1, constant current mode 2, constant voltage, and float mode charging.
Page 2 SPECIFICATIONS: DC Output Maximum DC output voltage 58.8V Maximum DC output current Maximum DC output power 850W Nominal DC output current 15A @ 110VAC, 15A @ 220VAC Battery type Lead Acid 48V ONLY AC Input AC input voltage range 85-265VAC (With 16AWG IEC C13/C14 Connector) Nominal AC input voltage 100-240VAC Nominal AC input frequency...
Page 3 WARNING AND SAFETY NOTES: Battery manufacturers recommend NEW batteries to CHARGE THE BATTERY FIRST BEFORE DRIVING IT. It • takes 2-3 discharge/recharge cycles to balance a NEW battery. Never leave the charger unattended when it is connected to its power supply. •...
Page 4 DRIVE, CHARGE, DRIVE, REPEAT. RHOX chargers are highly efficient, very compact, and most important, Durable. CGR-630_Operators Manual_CHGR-4815-LA_Rev A_111423.docx 11/14/2023 4:55 PM 5 of 5...
