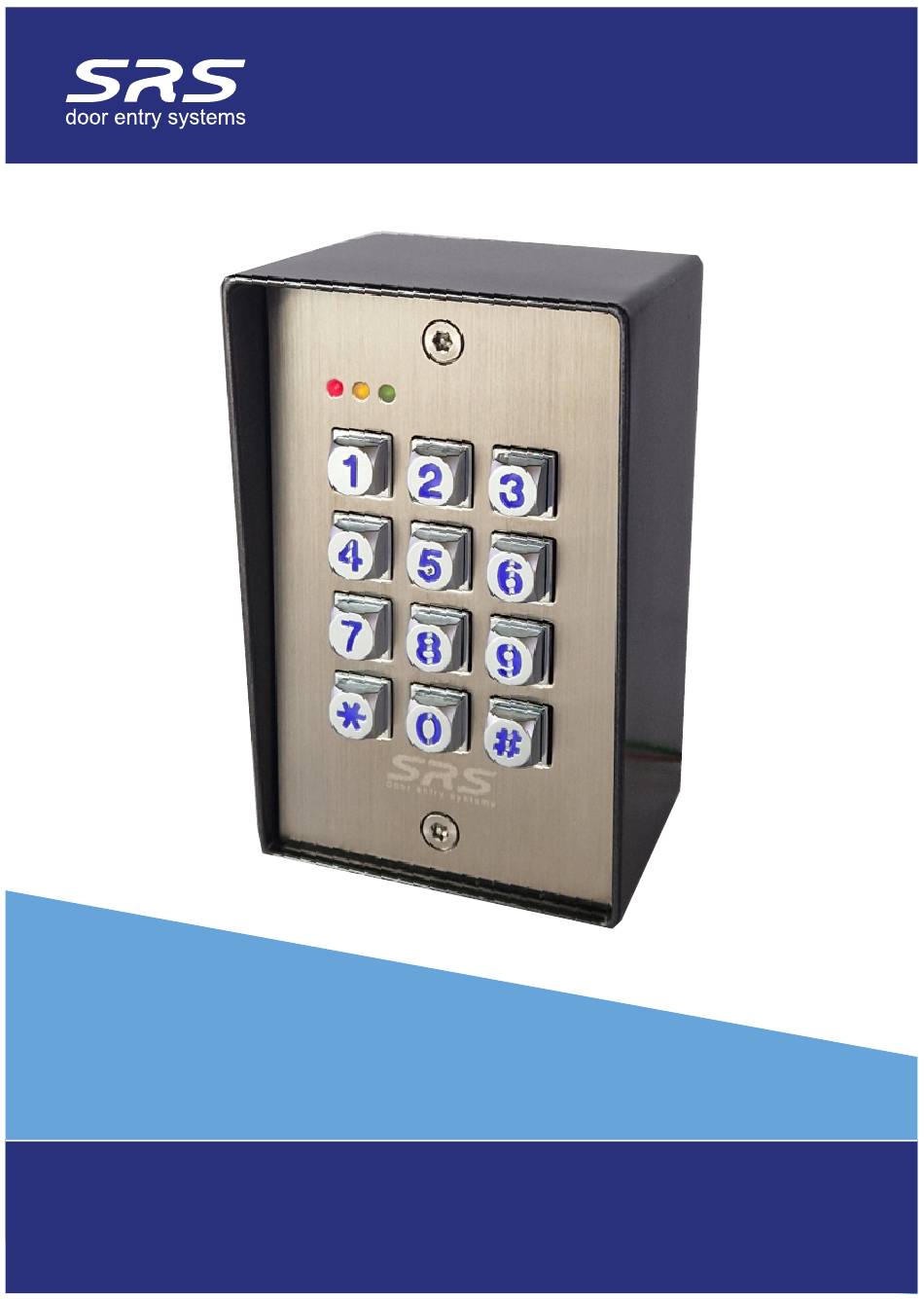

- Page 1 DC60SS Vandal Resistant Access Control Keypad Installation Guide...
- Page 3 Visual & Audible Indicators LED Indicators Each LED provides feedback on specific function of the keypad, during standard operation and programming. Amber LED This is a status and programming indicator. Green LED Output 1 indicator. It lights up while Output 1 is active. Red LED Output 2 indicator.
-
Page 4: Master Programming
Enter Programming Without Master Code Use DAP procedure to bypass existing and set new master code. 1. Disconnect the power supply. 2. Move the DAP jumper from OFF to ON. 3. Reconnect the power supply. DC60SS/DC50M/DC50SS/DC50FS AMBER Flashing, Continuous Beeps. -
Page 5: User Programming
User Programming User Code Groups Each group of user codes operate different output respectively. Programmed user code require to activate. Output User ID User PIN Code Confirm Output 1: 00 - 99 4-8 Digits Output 2: 0 - 9 4-8 Digits Add a User Code 1. - Page 6 Relay Output Programming Relay Output Mode Each output can be programmed to operate independently. You can either set, Time Delay (seconds) or Start/Stop mode where output stay engaged until next code entry. Output Time Delay Confirm Output 1: 1 - 999 sec. Start/Stop Output 2: 1 - 999 sec.
-
Page 7: System Refresh
System Refresh Erase All Data This procedure allow to completely erase all data stored in the memory, except master code. Master code is required to enter programming mode. Alternatively use direct access programming (DAP). Enter to confirm. Master Code Confirm Refresh Mode Confirm Exit...
