SRS Labs DC30 Installation Manual

installation guide

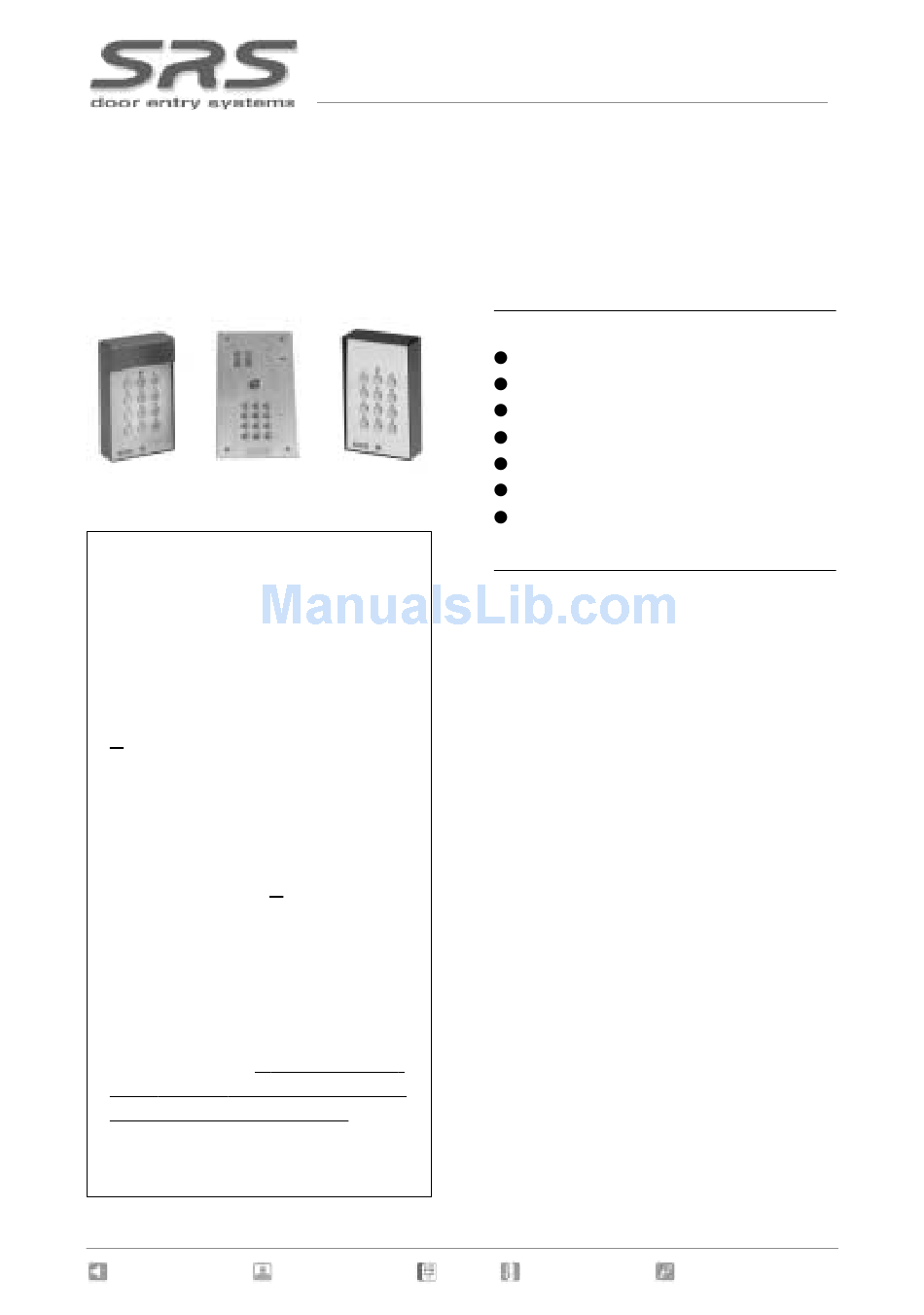

DC30, DC40 & entry panels with built in code lock
quick start guide
In most installations all that is
required is a single code for the user
to open a door. Into the keypad enter
the following
x, 1, 2, 3, 4
The unit is now in program mode. (the
sounder & LED will pulse and the lock
relay will change state)
0, 1, ?, ?, ?, ?, x
Where ?, ?, ?, ? is 4 digit number
(using numerical characters 0 - 9
only).
The user code may now be tested for
correct operation. We strongly recom-
mend changing the programmers code
(ie do not leave it set to 1234). See
setting the programmers code.
Audio Door Entry Systems Video Door Entry Systems
tel : 0208 621 6210
fax : 0208 621 6211
web : www.planetsrs.com
code lock features include:
programming concepts
All programming changes are made by first
entering the Programmers Code (This code
is only used for accessing programming
mode).
SRS code locks are capable of storing up to
30 individual codes for timed operation plus
10 codes for latching the relay.
Codes are stored in a location system
(pigeon holes) from location 01 to location
40. The codes are always related to their
location and therefore a code can be delet-
ed by code or by deleting the appropriate
location (pigeon hole).
Codes 31-40 are reserved for latch opera-
tion (toggle). Once in latch mode, any valid
latch code will restore normal condition
(relay off).
It is good practice to fill in a code User Log
to ensure that codes and their distribution is
recorded (see back page).
Keypads Access Control Systems
SRS Wholesale Limited registered in England No: 2142536
842-850 coronation road
park royal, london
nw10 7qj
30 x 4 digit codes (+ 10 latching)
Programmable lock time (01-99 secs.)
Timed exit request
Codes disable input
Non-volatile data storage ( >10 years)
25 secs. Lockout on 3 wrong codes
illuminated keypad (DC30 only)
Electric Locking & Accessories
INDC40 20041218
