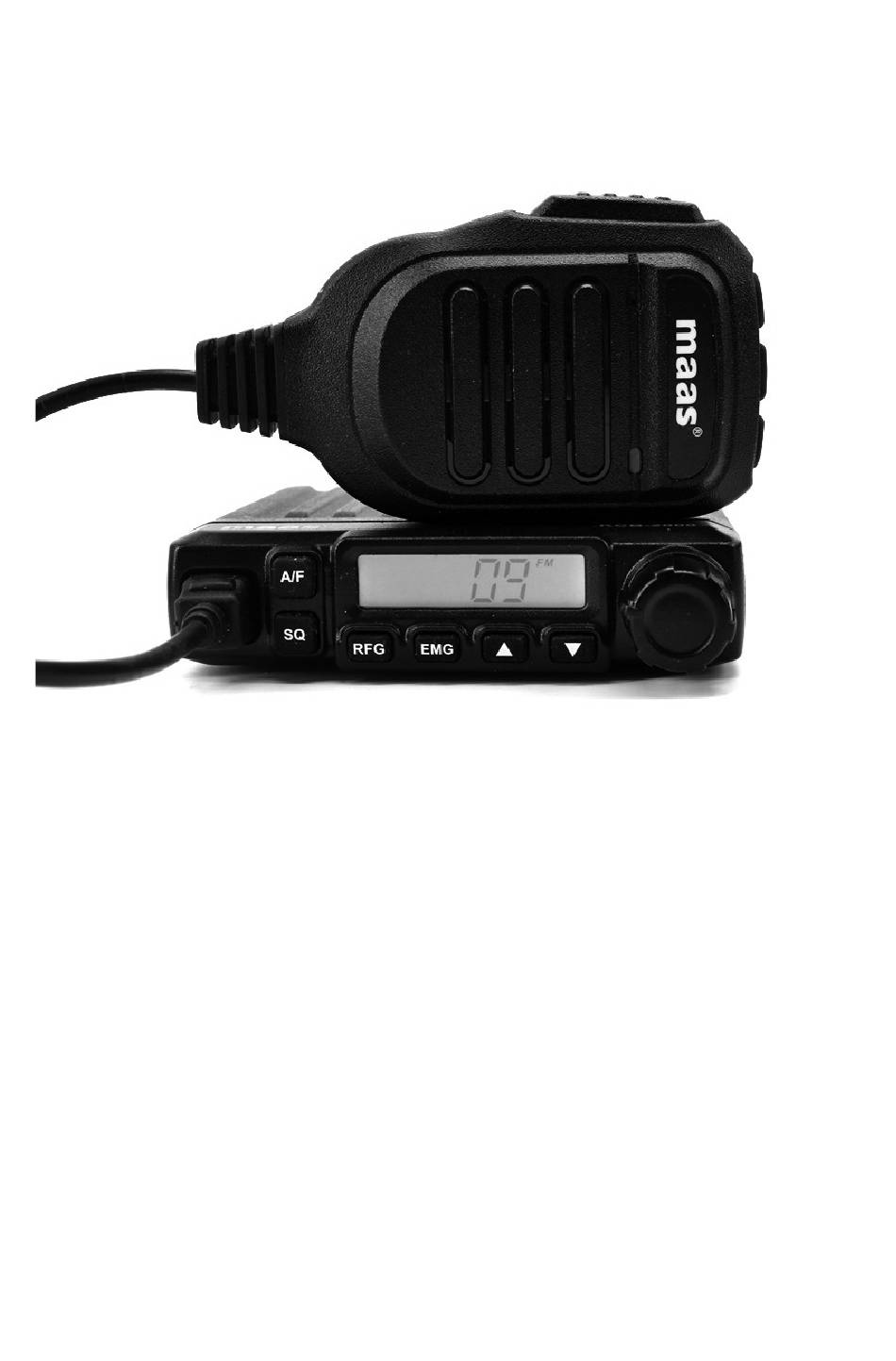

- Page 1 KCB-2000 AM/FM-CB-MOBIL RADIO EUROPEAN MULTINORM RADIO WITH VOX-MICROPHONE OPERATING MANUAL...
-
Page 2: Meaning Of The Symbols
MEANING OF THE SYMBOLS Read the operating instructions carefully Information on the procedure to follow with defective or unusable electronic equipment DC power supply Protect from moisture Earthing CE conformity Warning STORAGE, TRANSPORT AND OPERATION Storage: Class 1 (max. 85% humidity). Transport: max. -
Page 3: Notes On Operation
NOTES ON OPERATION We hereby declare that the appliance complies with the essential requirements of the Directive 2014/53/EU. Maas Electronics - Peter Maas Heppendorfer Str. 23 - 50189 Elsdorf www.maas-elektronik.com Be sure to keep these operating instructions in a safe place as they contain many instructions for use. -
Page 4: Notes On Installation
1. INTRODUCTION Thank you for purchasing a KCB-2000 CB radio. To get the most out of your new CB radio, we recommend that you read these operating instructions carefully. The KCB-2000 is a small, easy-to-use CB radio preferably for use in vehicles, with good performance parameters. -
Page 5: Front Panel
4. KNOB, FEYS AND CONNECTORS Front panel Nr. Name Function (short push) Funktion (long push) Micropnone jack A/F key Mode Search LC-Display Volume control with On/Off switch Channel down Channel up Key for CH9/CH19 RF amplification Squelch setting Automatic squelch Rear panel Nr. -
Page 6: Setting The Volume
5. FUNCTIONS 5.1 Switching on and off 1. Turn the volume control clockwise to switch on the radio. The display briefly shows the country standard and then the channel number. 2. To switch the radio off again, turn the volume control counterclockwise until it clicks into place. -
Page 7: Switching The Operating Mode
LED on the microphone lights up green. 2. speak into the microphone without pressing the PTT. The KCB-2000 switches to transmit by voice. After you stop speaking, the radio switches back to re- ceive after an adjustable hold time. -
Page 8: Search Run
5.10 Key lock 1. Press the [EMG] button for longer than 2 sec. to lock the keys. LC appears in the display. 2. Press the [EMG] button again for longer than 2 sec. to unlock the buttons. OF is shown in the display. 5.11 Search run 1. -
Page 9: Specifications
SPECIFICATIONS General Modes AM/FM Frequency range 26,565 ..27,405 MHz Supply voltage 13,2 V Dimensions (mm) 120 (B) × 110 (T) × 27 (H) Weight 320 g Frequency control PLL Synthesizer Operating temperature –20 °C … +60 °C Transmit max. 1,8 A @ 4 W RF power Current Receive maximum volume... -
Page 10: Failure Recovery
FAILURE RECOVERY The radio is not transmitting at full power T his may be caused by the operating voltage being too low. This should be checked first. Another source of error is the antenna. This must have an impedance of 50 and be suitable for CB frequencies. - Page 12 Owner Peter Maas Heppendorfer Straße 23 50189 Elsdorf-Berrendorf Tel. (0 22 74) 93 87-0 © Copyright by Maas Elektronik 2021 Fax (0 22 74) 93 87-31 Changes, errors, mistakes excepted. info@maas-elektronik.com Removal of the copyright notice is prohibited.
