Summary of Contents for Maas KCB-3000

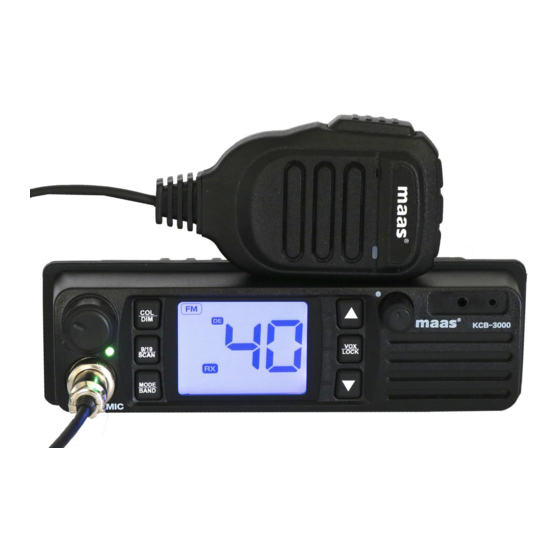

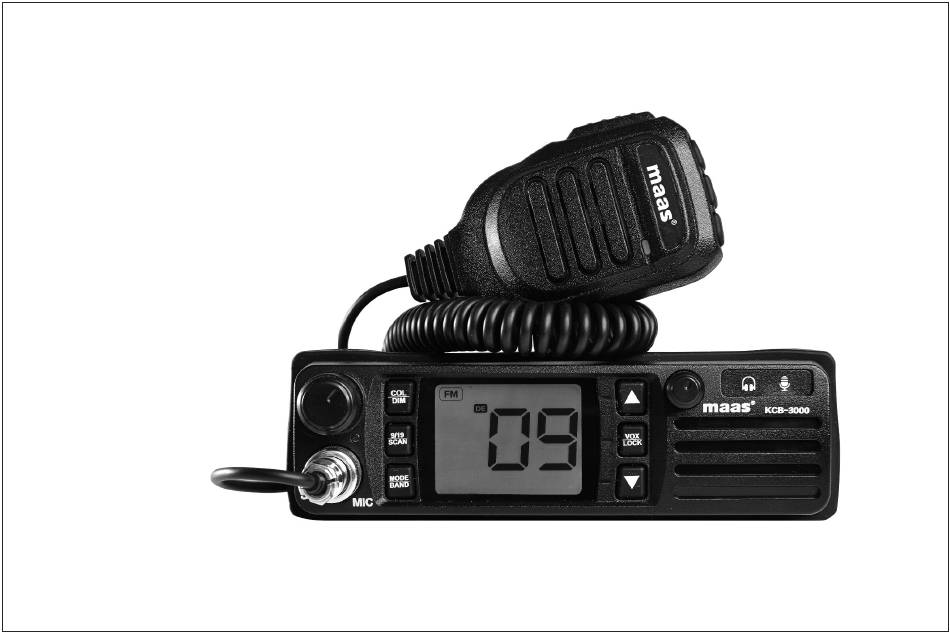

- Page 1 CB-Mobil-Radio KCB-3000 European Multi Standard Radio with VOX Microphone Instruction Manual...
- Page 2 M IN FE TURES ND IMPORT NT NOTES From 2020, CB radios may only be used while dri- Multi standard CB Radio ving if a hands-free system is available. Violati- Large LC-Display ons of this regulation will now be treated as the VOX handheld microphone as standard unauthorized use of a cell phone by a driver! accessoire...
-
Page 3: Table Of Contents
T BLE OF CONTENTS Main features Using the handheld microphone Important note VOX function Preparations Adjusting VOX Sensivity Installation of a CB antenna Selecting VOX delay period for Aerial Connection handheld microphone Installation in the car Hands-free transmission with Power source Satndard switch earphone microphone [VOX] External speaker jack... -
Page 4: Installation Of A Cb Antenna
PREP R TIONS FOR OPER TION There are other possibilities to fix the antenna onto the Installation of a CB antenna car without having to drill a hole into the bodywork of The antenna is one of the most critical parts in your your car, e.g. -
Page 5: Installation In The Car
SWR ratio which can be Power source measured by a SWR meter, e.g. Maas KCB-3000. After Before connecting the unit to a suitable power source the measurement the SWR meter should be removed via the fused DC power cable, the device must be swit- from the antenna line. -
Page 6: External Speaker Jack
PREP R TIONS FOR OPER TION / KNOBS ND KEYS 8 - Loadspeaker External speaker jack 9 - DOWN-Key The KCB-3000 mobile is equipped with a 3.5 mm so- 10 - MODE/BAND-Key cket at the rear panel to connect an external speaker 11 - Socker for handheld microphone of 4-8 ohm impedance. - Page 7 KNOBS ND KEYS...
-
Page 8: On/Off
OPER TION On/Off Squelch To switch on/off the radio turn the volume switch [VOL] The radio is equipped with an automatic (ASQ) and a clockwise / counterclockwise over the threshold. manual squelch (SQ). Both can be adjusted. The strong background noise, which occurs always on free chan- Channel selection nels, can be suppressed by the squelch function, which Use the channel selector keys and at the microphone... -
Page 9: Keylock
Press the COL key shortly to switch between seven Modulation selection [MODE] LCD background colors. The background color can be For the Maas KCB-300 the modulation modes AM and deactivated. FM are available. The selected modulation type is indi- LCD Brightness [DIM] cated by an AM/FM symbol. -
Page 10: Using The Handheld Microphone
VOX operation. For a trouble-free microphone [VOX] VOX operation it is recommended to connect only The KCB-3000 has a built-in VOX that can be used one microphone with an earphone microphone with a Kenwood plug. To connect the earphone microphone, first remove... -
Page 11: Satndard Switch Earphone Microphone [Vox]
OPER TION / ST ND RDS (B NDS) dance with the law when driving a vehicle. To deacti- vate the VOX, briefly press the [VOX/LOCK] button again. Note: The VOX settings are only made on the VOX mi- crophone and are applied to the earphone or loud- speaker microphone. - Page 12 IMPORT NT NOTES Safety Instructions Conformity Drivers must obey traffic rules regarding the use of The CB mobile transceiver TEAM FX-CBmobile com- transceivers in a vehicle. The unit radiates RF energy in plies to the European directive RED 2014/53/EU and transmit mode.
-
Page 13: Device Pass
DEVICE P SS FOR KCB-3000... -
Page 14: Persönal Notes
RECOMM NDED CCESSORIES... - Page 15 NOTES...
- Page 16 When disposing of this radio equipment, Fone ++49 (22 74) 93 87-0 the regulations for handling electronic waste Fax ++49( 22 74) 93 87-31 © Copyright by Maas Elektronik 2020 must be observed. Electronic devices do not info@maas-elektronik.com Changes, errors, mistakes reserved.
