Thinkcar TTE 780 Operation And Service Manual

Gearbox oil exchange
Hide thumbs
Table of Contents

Advertisement

Quick Links

THINKCAR

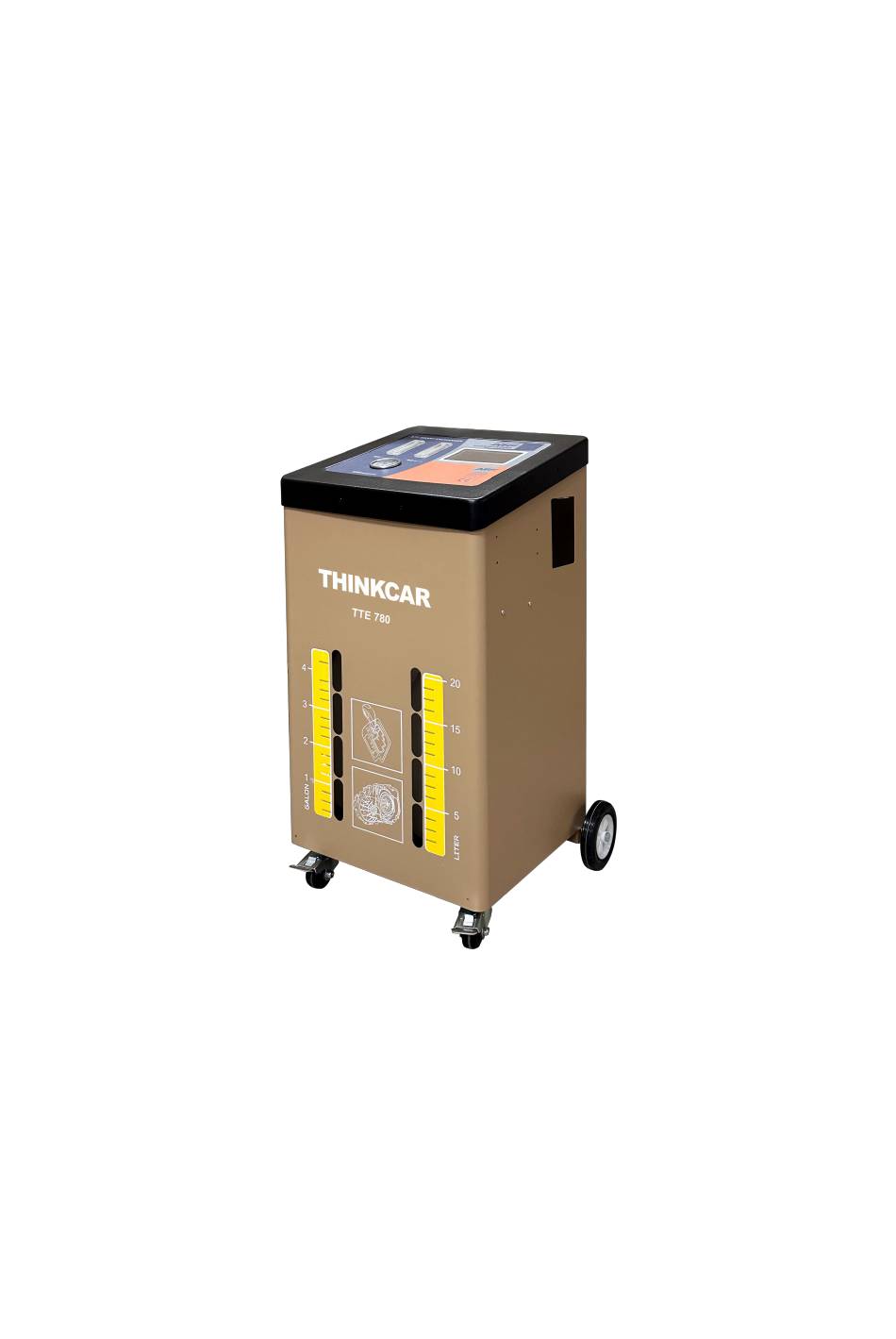

THINKCAR Gearbox oil exchange
machine TTE 780
Operation Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTE 780 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thinkcar TTE 780

Summary of Contents for Thinkcar TTE 780

  • Page 1 THINKCAR THINKCAR Gearbox oil exchange machine TTE 780 Operation Service Manual...
  • Page 2 Thinkcar assumes no responsibility for the consequences of using it as a guide for the operation of other equipment. Thinkcar and its affiliates shall not be liable for any costs and expenses incurred as a result of damage to or loss of the equipment due to accidents, abuse or misuse of the equipment, unauthorized alterations or repairs to the equipment, or failure to comply with Thinkcar's operation and maintenance requirements, whether by the user or a third party.

  • Page 3: Table Of Contents

    Contents 1. Type and basic parameters of the equipment ......... 4 1.1 Model Description ............4 1.2 Use ................ 4 1.3 Technical parameter ............4 1.4 Environment Requirements ........... 4 2. Operation instruction .............. 5 2.1 Start the machine ............6 2.2 Function Operation ............

  • Page 4: Type And Basic Parameters Of The Equipment

    TTE 780：Automatic transmission cleaning oil changer. 1.2 Use The TTE 780 helps to quickly and easily drain the old transmission fluid and then refill it with new transmission fluid to ensure the proper operation of the transmission. 1.3 Technical parameter...

  • Page 5: Operation Instruction

    TTE 780 2. Operation instruction Note the meaning of the matter Important safety instructions Before using this equipment, please read this manual carefully for correct operation.  Do not smoke near the equipment while it is in use.  Do not use the device near heat and fire sources.

  • Page 6: Start The Machine

    TTE 780 2.1 Start the machine Turn on the machine's power switch and the following screen appears on the display. Starting…… Main Menu 2.2 Function Operation 2.2.1 Intelligent oil change automatic transmission oil 1、Enter the setting oil change interface directly from the intelligent oil change interface.
  • Page 7 TTE 780 Press Smart to enter the car brand selection interface. Enter the oil change data interface by selecting the brand and model of the car.
  • Page 8 TTE 780 Click the recommended replacement button to enter the intelligent oil change interface...

  • Page 9: Cycle Cleaning Automatic Transmission Function

    TTE 780 After entering this interface, you can perform intelligent oil change operation! 2.2.2 Cycle cleaning automatic transmission function 1、Adding detergent 2、Clean Select Clean button to enter the cleaning operation interface...

  • Page 10: One-Click Return To Zero Function

    TTE 780 2.2.3 One-click return to zero function 1、Function：If the new/ old fuel tank is empty, but the system still shows a certain amount other than “0.00”. Use this function to recalibrate the system. 2、Calibration: Follow the prompts after entering the calibration interface.

  • Page 11: Recycling Old Oil Function

    TTE 780 2.2.4 Recycling old oil function When the transmission oil is too much, to reduce the amount of oil, you can do this function. Click Recovery button to enter the recycling old oil settings.

  • Page 12: Add New Oil Function

    TTE 780 In this interface, set the amount of oil you need to reduce, start the engine, and press “Run”. ① In the recycling oil interface: Dynamically display the current parameters in real time. To pause the work, press “Stop” to pause.

  • Page 13: Emptying The New/Old Fuel Tank Function

    TTE 780 Click "Charge" to enter the new oil setting. Set the required amount of replenishment on this interface before adding new oil, and press “Run”. Note: The set oil quantity cannot exceed the new oil quantity. Do not start the engine if it is exceeded.
  • Page 14 TTE 780 Click “Emptying” to enter the Emptying the New/Old Fuel Tank function interface 1、 Emptying the new fuel tank When the oil change or cleaning of the automatic transmission is completed, the oil in the new fuel tank should be discharged to protect the weighing system components.

  • Page 15: System Setting Function

    TTE 780 2、Emptying the old fuel tank When the oil change or cleaning of the automatic transmission is completed, the oil in the old fuel tank should be discharged to protect the weighing system components. Confirm that the oil drain valve of the oil changer unit is open, and the oil pipe of the equipment should not be connected to the gearbox interface of the car.
  • Page 16 TTE 780 1、Click “Information” to Enter local information and output port test function. 2、 Enter passcode 8888，Enter the weighing system calibration function. ①When the measurement error of the new and old fuel tank exceeds 15%, the system should be calibrated by the symmetrical system. The calibration must use the calibration weights of the new and old fuel tanks.
  • Page 17 TTE 780...

  • Page 18: Printing Function

    TTE 780 2.2.8 Printing Function Click “Print” to use this function This machine is equipped with a 58mm embedded micro printer.
  • Page 19 This warranty applies only to customers and dealers who have purchased Thinkcar products through the normal course of business. For a period of one year from the date of delivery, Thinkcar Inc. warrants its electronic products against damage caused by defects in material or workmanship. Damage to this equipment or...
  • Page 20 Statement: Thinkcar reserves the right to change product design and specifications without prior notice. The appearance and color of the actual product may differ from that shown in the manual, please refer to the actual product. We have tried our best to make all the descriptions in the...
