Page 1: Table Of Contents
(Click on any section to jump) Pa爀琀 1 - OverView Specs Ove爀瘀iew Dimensions Package FC & ESC Connection Pa爀琀 2 - SpeedyBee F405 V4 Flight Controller Layout FC’s Peripheral Connection App & FC Con昀椀guration FC Firmware Update Speci昀椀cations Pa爀琀 3 - SpeedyBee BLS 60A 4-in-1 ESC Layout Connection with Motors &... -
Page 2: Pa爀琀 1 - Overview Specs Ove爀瘀Iew
Pa爀琀 1 - OverView Specs Ove爀瘀iew 1/14 SpeedyBee F405 V4 BLS 60A 30x30 Stack Product Name SpeedyBee F405 V4 Flight Controller Flight Controller SpeedyBee BLS 60A 4-in-1 ESC Suppo爀琀ed. For FC & ESC parameter settings Bluetooth NOT Suppo爀琀ed Wireless FC Firmware Flashing Wireless Blackbox NOT Suppo爀琀ed... -
Page 3: Dimensions
Dimensions 2/14 1.6mm 44mm 1.6mm 39.4mm 30.5mm 7.8mm 30.5mm 16.1mm Impo爀琀ant Stack Installation Note When installing your stack, adhere to the standardmounting method. The orientation of the gyro andmotor sequence can be adjusted through settingsIf you opt for an inve爀琀ed manner, be extra carefulabout the space between the frame, the FC, andthe ESC. -
Page 4: Package
Package 3/14 SpeedyBee F405 V4 60A 30x30 Stack SpeedyBee F405 V4 Flight Controller x 1 SpeedyBee BLS 60A 4-in-1 ESC x 1 35V 1000uF Low ESR Capacitor x 1 M3 Nylon Nut x 5 M3 silicone O Ring x 5 M3*8mm Silicone Grommets(for FC) x 1 M3*8.1mm Silicone Grommets(for ESC) x 1... -
Page 5: Fc & Esc Connection
FC & ESC Connection 4/14 Use the 8-pin cable in the package to connect the FC and the ESC. Or solder 8 wires directly to the 8 pads on each end. Method 1 - Using 8-pin cable Use any end of the 8-pin JST cable to connect the FC to the ESC. F405 V4 Flight Controller BLS 60A 4-in-1 ESC Method 2 - Direct soldering... -
Page 6: Layout

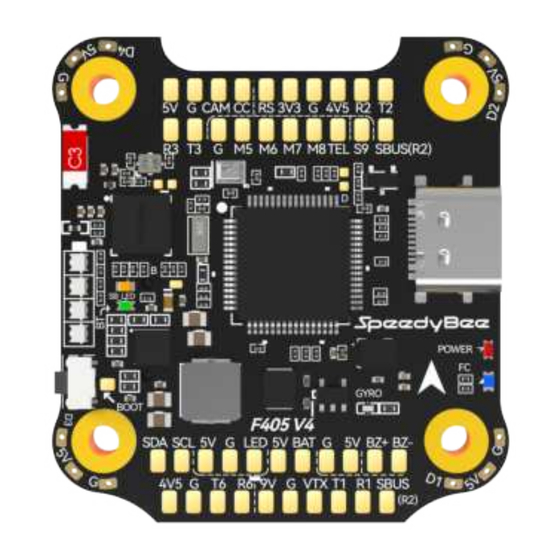

Pa爀琀 2 - F405 V4 Flight Controller Layout 5/14 For Second 4-in-1 ESC Receiver FPV Cam Barometer Extra PWM output Antenna MCU: F405 Bluetooth Chip Orange LED USB TYPC-C Po爀琀 4-level LED batte爀礀 indicator Red LED Green LED Blue LED BOOT Button 5V 3A BEC Gyro(ICM42688P) - Page 7 LED strips connected to LED1-LED4 pads on the corners. Sho爀琀-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by the Beta昀氀ight 昀椀rmware.
-
Page 8: Fc's Peripheral Connection
FC’s Peripheral Connection 6/14 Spektrum ELRS Receiver Receiver PPM Receiver SBUS Receiver 5-36V 5-36V SBUS 5-36V Video Video Video G/TX Cross昀椀re Nano Rx Menu M/RX Menu CH2 RX CH1 TX SIGNAL SERVO LED Strip Buzzer Analog VTX DJI Air Unit... - Page 9 Motor 4 Motor 2 Motor 3 Motor 1 1000uF Low ESR Capacitor XT60 Power Cable Note1: In order to prevent the stack from being burnt out by voltage spikes on powering up, it is strongly recommended to use the Low ESR capacitor in the package.
- Page 10 Cable Connection vs DJI O3 Air Unit Use 6-pin cable comes with the O3 Air Unit Cable Connection vs RunCam Link/ Caddx Vista Air Unit Use 6-pin cable comes with the F405 V4 stack (See the accesso爀礀 No.11 in the package section) SBUS 7.4-26.4V Cable Connection vs DJI Air Unit V1...
- Page 11 Impo爀琀ance notice for SBUS receiver When using an SBUS receiver, the SBUS signal wire of the receiver must be connected to the SBUS pad on the front side of the 昀氀ight controller (this pad internally uses UART2). If you are also using the DJI Air Unit(O3/Link/Vista/Air Unit V1), you will need to disconnect the SBUS signal wire from the Air Unit harness.
-
Page 12: App & Fc Con昀椀Guration
App & FC Con昀椀guration 7/14 Get the SpeedyBee App Search ‘SpeedyBee’ on Google Play or App Store. Or download the Android .apk 昀椀le on our website: https://www.speedybee.com/download. FC Con昀椀guration... -
Page 13: Fc Firmware Update
FC Firmware Update 8/14 SpeedyBee F405 V4 昀氀ight controller does not suppo爀琀 wireless 昀椀rmware 昀氀ashing, so please 昀氀ash 昀椀rmware for it on your PC following the steps below: ① Connect the 昀氀ight controller to the PC with a USB cable ② Open Beta昀椀ght/ INAV con昀椀gurator on your PC. Take Beta昀氀ight con昀椀gurator as an example, go to the ‘Firmware Flashing’... -
Page 14: Speci昀椀Cations
Current Sensor Input Suppo爀琀ed. For SpeedyBee BLS 60A ESC, please set scale = 400 and O昀昀set = 0. Power Input 3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side) -
Page 15: Pa爀琀 3 - Speedybee Bls 60A 4-In-1 Esc
Pa爀琀 3 - SpeedyBee BLS 60A 4-in-1 ESC Layout 10/14 MOTOR 4 MOTOR 2 MOTOR 1 MOTOR 3 Capacitor pin Capacitor pin BAT- BAT+ hole(GND) hole(BAT+) 8pin connector(to FC) Driver Chips MCU(BB21) TVS Diode... - Page 16 Connection with the 昀氀ight controller & Motors 11/14 Motor 4 Motor 2 Motor 3 Motor 1 1000uF Low ESR Capacitor XT60 Power Cable Note1: In order to prevent the stack from being burnt out by voltage spikes on powering up, it is strongly recommended to use the Low ESR capacitor in the package.
-
Page 17: Esc Con昀椀Guration
ESC Con昀椀guration 12/14 You could use the SpeedyBee APP to con昀椀gure this ESC wirelessly for both BLHeli_S or Bluejay 昀椀rmware. Steps: You could also use PC con昀椀gurators to con昀椀gure this ESC. We recommend the ESC Con昀椀gurator. Please use Google Chrome browser and visist:... -
Page 18: Esc Firmware Update
ESC Firmware Update 13/14 This 8-bit 60A ESC can run BLHeliS or Bluejay 昀椀rmware. It is loaded with BLHeliS 昀椀rmware by default. You could also 昀氀ash it to Bluejay 昀椀rmware which can suppo爀琀 RPM 昀椀ltering and Bi-directional Dhsot. Firmware 昀氀ashing steps are as follows: ●... -
Page 19: Speci昀椀Cations
Speci昀椀cations 14/14 Product Name SpeedyBee BLS 60A 30x30 4-in-1 ESC Firmware BLHeli_S J-H-40 PC Con昀椀gurator Download Link https://esc-con昀椀gurator.com/ Continuous Current 60A * 4 Burst Current 80A(10sec) TVS Protective diode External Capacitor 1000uF Low ESR Capacitor(In the package) ESC Protocol DSHOT300/600...
