Summary of Contents for SpeedyBee F405 V3 BLS 60A 30x30 Stack

  • Page 1: Table Of Contents

    (Click on any section to jump) Part 1 - OverView Specs Overview Dimensions Package FC & ESC Connection Part 2 - SpeedyBee F405 V3 Flight Controller Layout FC’s Peripheral Connection App & FC Configuration FC Firmware Update Specifications Part 3 - SpeedyBee BLS 60A 4-in-1 ESC Layout Connection with Motors &...
  • Page 2: Part 1 - Overview Specs Overview

    Part 1 - OverView Specs Overview 1/14 Product Name SpeedyBee F405 V3 BLS 60A 30x30 Stack Flight Controller SpeedyBee F405 V3 Flight Controller SpeedyBee BLS 60A 4-in-1 ESC Bluetooth Supported. For FC & ESC parameter settings Wireless FC Firmware Flashing...
  • Page 3: Dimensions

    Dimensions 2/14 1.6mm 39.4mm 1.6mm 44mm 30.5mm 30.5mm 7.8mm 16.1mm...
  • Page 4: Package

    Package 3/14 SpeedyBee F405 V3 60A 30x30 Stack SpeedyBee F405 V3 Flight Controller x 1 SpeedyBee BLS 60A 4-in-1 ESC x 1 35V 1000uF Low ESR Capacitor x 1 M3 Nylon Nut x 5 M3 silicone O Ring x 5 M3*8mm Silicone Grommets(for FC) x 1 M3*8.1mm Silicone Grommets(for ESC) x 1...
  • Page 5: Fc & Esc Connection

    FC & ESC Connection 4/14 Use the 8-pin cable in the package to connect the FC and the ESC. Or solder 8 wires directly to the 8 pads on each end. Method 1 - Using 8-pin cable Use any end of the 8-pin JST cable to connect the FC to the ESC. F405 V3 Flight Controller BLS 60A 4-in-1 ESC Method 2 - Direct soldering...

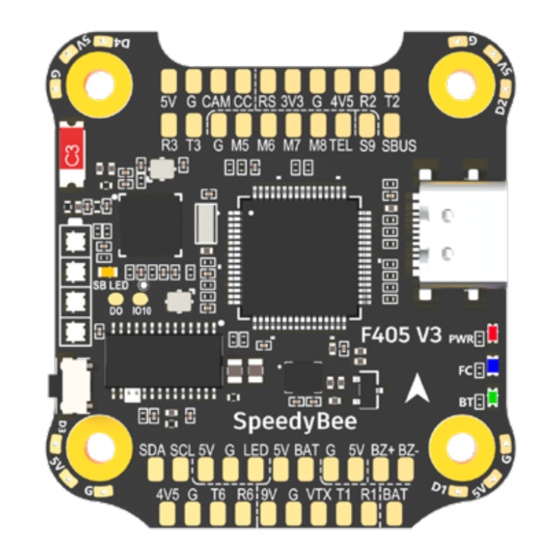

  • Page 6: Part 2 - Speedybee F405 V3 Flight Controller

    LED strips connected to LED1-LED4 pads on the corners. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by the Betaflight firmware.
  • Page 7: Fc's Peripheral Connection

    FC’s Peripheral Connection 6/14 Spektrum ELRS Receiver SRXL2 Receiver PPM Receiver SBUS Receiver SBUS 5-36V 5-36V 5-36V Video Video Video G/TX Crossfire Nano Rx Menu Menu M/RX CH2 RX CH1 TX SIGNAL SERVO LED Strip Buzzer Analog VTX DJI Air Unit Importance notice for SBUS receiver...
  • Page 8 Cable Connection vs DJI O3 Air Unit Use 6-pin cable comes with the O3 Air Unit Cable Connection vs RunCam Link/ Caddx Vista Air Unit Use 6-pin cable comes with the F405 V3 stack (See the accessory No.10 in the package section) SBUS 7.4-26.4V Cable Connection Vs DJI Air Unit V1...
  • Page 9: App & Fc Configuration

    App & FC Configuration 7/14 Get the SpeedyBee App Search ‘SpeedyBee’ on Google Play or App Store. Or download the Android .apk file on our website: https://www.speedybee.com/download. FC Configuration...
  • Page 10: Fc Firmware Update

    FC Firmware Update 8/14 SpeedyBee F405 V3 flight controller does not support wireless firmware flashing, so please flash firmware for it on your PC following the steps below: ① Connect the flight controller to the PC with a USB cable ② Open Betafight/ INAV configurator on your PC. Take Betaflight configurator as an example, go to the ‘Firmware Flashing’...
  • Page 11: Specifications

    Current Sensor Input Supported. For SpeedyBee BLS 60A ESC, please set scale = 400 and Offset = 0. 3-6S LiPo. The flight controller is powered through the G, V wires of the 8pin cable or G, V pads Power Input from the bottom side of the flight controller.
  • Page 12: Part 3 - Speedybee Bls 60A 4-In-1 Esc Layout

    Part 3 - SpeedyBee BLS 60A 4-in-1 ESC Layout 10/14 MOTOR 4 MOTOR 2 MOTOR 1 MOTOR 3 Capacitor pin Capacitor pin BAT- BAT+ hole(GND) hole(BAT+) 8pin connector(to FC) Driver Chips MCU(BB21) TVS Diode...
  • Page 13: Connection With Motors & Power Cable

    Connection with Motors & Power Cable 11/14 Motor 4 Motor 2 Motor 3 Motor 1 1000uF Low ESR Capacitor XT60 Power Cable Note1: In order to prevent the stack from being burnt out by voltage spikes on powering up, it is strongly recommended to use the Low ESR capacitor in the package.
  • Page 14: Esc Configuration

    ESC Configuration 12/14 You could use SpeedyBee app to completely configure this 8-bit ESC. T he steps are as follows: You could also use PC configurators to configure this ESC. We recommend the ESC Configurator. Please use Google Chrome browser and visist:...
  • Page 15: Esc Firmware Update

    ESC Firmware Update 13/14 This 8-bit 60A ESC can run BLHeliS or Bluejay firmware. It is loaded with BLHeliS firmware by default. You could also flash it to Bluejay firmware which can support RPM filtering and Bi-directional Dhsot. Firmware flashing steps are as follows: Remove all the propellers from your drone.
  • Page 16: Specifications

    Specifications 14/14 Product Name SpeedyBee BLS 60A 30x30 4-in-1 ESC Firmware BLHeli_S J-H-50 PC Configurator Download Link https://esc-configurator.com/ Continuous Current 60A * 4 Burst Current 80A(10sec) TVS Protective diode External Capacitor 1000uF Low ESR Capacitor(In the package) ESC Protocol DSHOT300/600...
