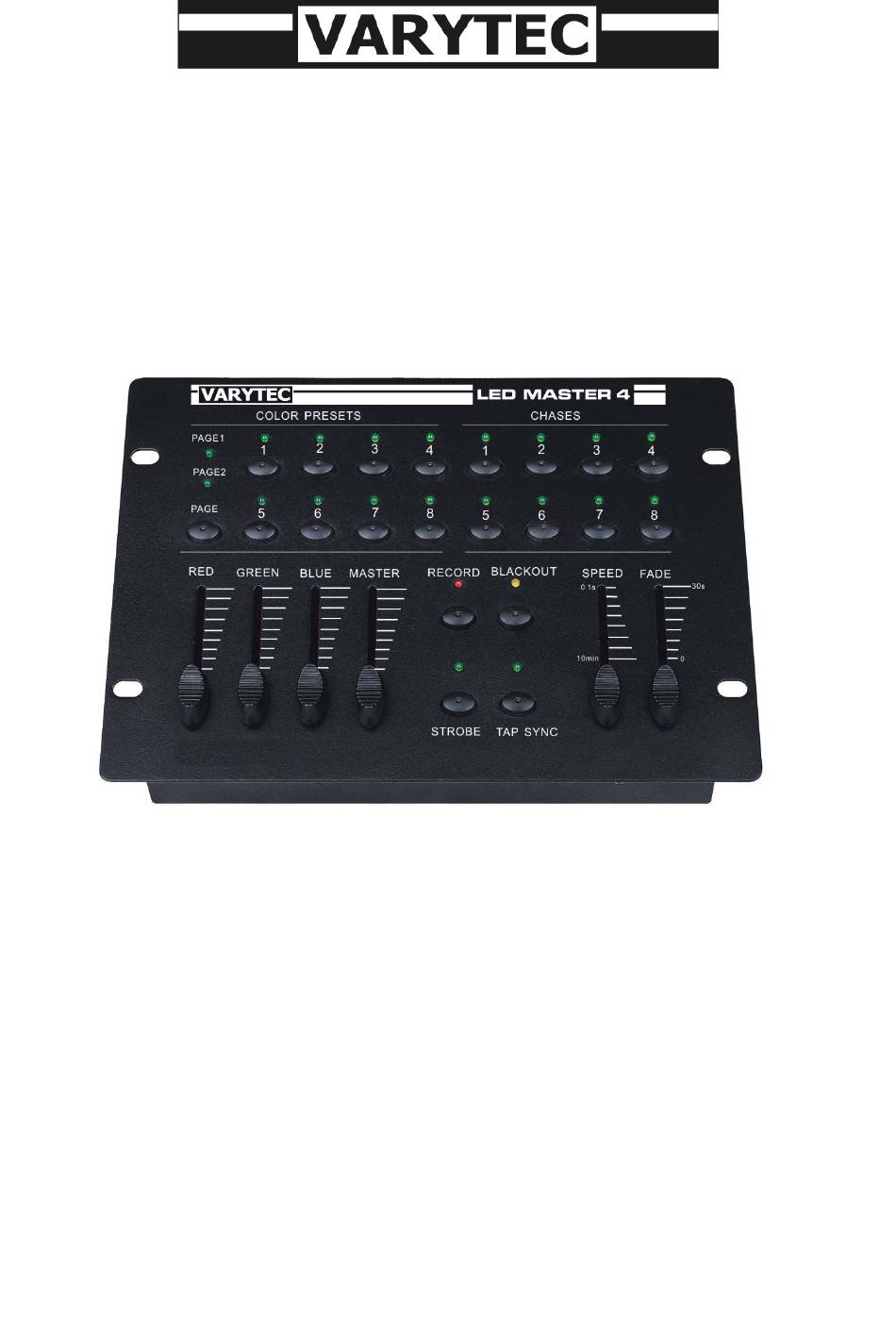

- Page 1 User’s manual LED Master 4...
-
Page 2: Table Of Contents
Table of content Safety instructions........................... 3 Functions: ............................4 Product layout ..........................4 Operating Instructions:........................5 Color Preset and Chase Playback....................5 Record mode ..........................7 Record Custom Color Presets ..................... 7 Record Custom Chases........................ 8 Strobe Function ..........................9 Factory Default Reset ...................... -
Page 3: Safety Instructions
1. Safety instructions FOR SAFE AND EFFICIENT OPERATION Be careful with heat and extreme temperatureAvoid exposing it to direct rays of the sun or near a heating appliance. Not put it in a temperature bellow 41°F /5°C, or exceeding 95°F /35°C. Keep away from humidity, water and dust Do not place the set in a location with high humidity or lots of dust. -
Page 4: Functions

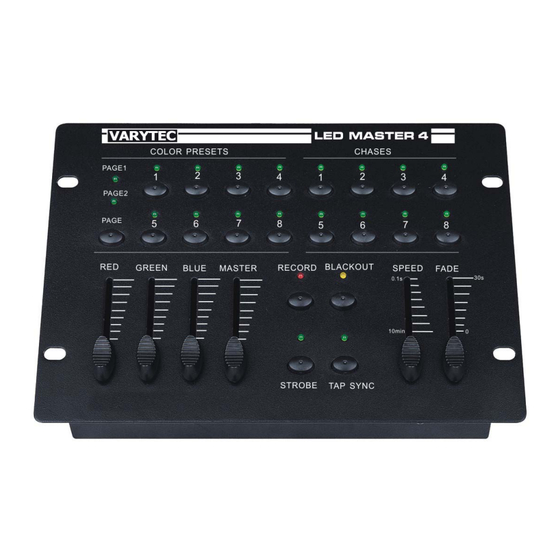

2. Functions: -3 Channel, RGB LED Controller -16 Color Presets -8 Preset Chases -Strobe Function -Individual RGB Channel Faders -Grand Master Fader -Speed & Fade faders for Chase control -Record Function to Record Colors and Chases -Power failure memory 3. Product layout R,G,B Faders: Use R,G,B faders to manually set the intensity of each relevant color. -
Page 5: Operating Instructions
Black Out button: Press the Black Out button to cut all output. SPEED Fader: Use the Speed fader to manually set the chase speed during playback. FADE Fader: Use the Fade fader to manually set the chase fade rate during playback. PAGE 1/2 LED indicators: Indicates the active Color Preset page. - Page 6 2. Select a “Color Preset” by pressing buttons 1-8 in the Color Presets section. Press the "PAGE" button to switch between color preset pages 1 and 2. When “PAGE1" LED indicator illuminates, color presets 1-8 are accessible; when "PAGE2" LED indicator illuminates, color presets 9-16 are accessible.
-
Page 7: Record Mode
NOTE: FACTORY CHASES WILL NOT ACCEPT FADE CONTROL. FADE CONTROL WILL ONLY WORK WITH CUSTOM (USER CREATED) CHASES. 6. Record mode Record Mode Enable: Press and hold down the "RECORD" button and sequentially press "COLOR PRESET" buttons 1, 6, 8, 1, 6, 8 then release the "RECORD" button. The RECORD LED indicator will turn ON indicating that RECORD mode is engaged. -
Page 8: Record Custom Chases
(3) Press a COLOR PRESET # (1-8) button that you wish to save it to. Repeat step 2 and 3 to save additional Color Presets/Scenes. (4) Press the “BLACKOUT” button twice to exit RECORD MODE. 8. Record Custom Chases Up to 8 chases can be programmed, each of which can store up to 20 scenes/steps. Note: When recording custom chases, relevant factory chases will be erased. -
Page 9: Strobe Function
(5) Press the BLACKOUT button twice to exit. 9. Strobe Function The strobe function will mix with a running Color Preset or Chase. Pressing the Strobe button will temporarily incorporate a strobe effect over a running color preset or chase. (1) Press the "STROBE"... -
Page 10: Factory Default Reset
(3) Press the "STROBE" button again to disengage the strobe effect. Factory Default Reset WARNING! THIS OPERATION WILL ERASE CURRENT COLOR PRESETS AND CHASES. ALL COLOR PRESETS AND CHASES WILL BE REPLACED WITH FACTORY COLOR PRESETS AND CHASES. (1) Switch the LED Operators main power OFF. (2)Press and hold down Color Preset buttons 1, 6 &... - Page 11 11 / 12...
- Page 12 Importeur: B & K Braun GmbH Industriestraße 1 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 12 / 12...
