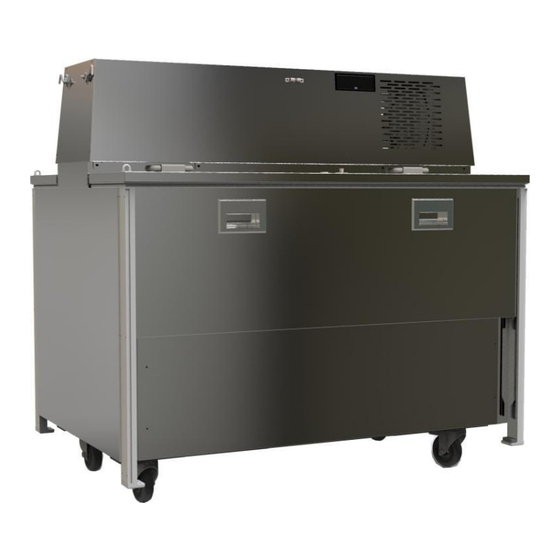

INSTRUCTION MANUAL
MILK COOLER
Please read the user's manual before you use this product.
If you request unnecessary services, you may waste money.
Thus, fix simple troubles by yourself which you have found
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atosa AMC-5801
Summary of Contents for Atosa AMC-5801
- Page 1 In order to provide the best service, ATOSA requests that please register your warranty online at www.atosausa.com For any service issues,please kindly contact us at Email: warranty@atosausa.com Toll Free:+1-800-683-8660 Please clean the filter frequently! Please do not overload the unit!
-
Page 2: Table Of Contents
Content 1.TERMS AND CONDITIONS: ..............2 2. Preface ......................5 3. Use of the equipment ................9 4. Technical features ................9 5. Operation ..................... 9 6. Handling ..................... 10 7. Installation procedure ................10 8. Connecting to the main power supply ........10 9. -
Page 3: Terms And Conditions
1.TERMS AND CONDITIONS: Refrigeration 2 YEAR WARRANTY All claims for parts or labor must be made directly through Atosa. All claims must include: model number of the unit, the serial number, proof of purchase, date of installation, and all pertinent information supporting the alleged defect. - Page 4 Atosaʼs warranty department. What is Not Covered by This Warranty Atosaʼs sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by this warranty.
- Page 5 THE FACE HEREOF. Outside U.S. and Canada: This warranty does not apply to areas outside the continent of the United States. Atosa is not responsible for any warranty claims made on products sold or used in such areas. *In some cases, a 25% restocking fee may be charged to a buyer for returned items.* Atosa may at any time modify our equipment in...
-
Page 6: Preface
2. Preface PLEASE READ INSTRUCTIONS BEFORE USING THIS APPLIANCE. IMPORTANT SAFETY INSTRUCTION To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed,including the following. This appliance must be properly installed and located in ... - Page 7 Connect to properly grounded outlets only. Avoid the use of extension cords. Do not run cord under carpeting, runners or the like. Arrange cord away from traffic area and where it will not create a tripping hazard. Always unplug appliance when not in use and before cleaning, ...
- Page 8 This equipment is intended for the storage and display of packaged products only. WARNING: Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure for building-in. WARNING: Do not use mechanical devices or other means to ...
- Page 9 operator procedures and instructions maintenance operation The manual is to be considered an integral part of the refrigerator and should be stored in a safe place for father consult to permit a good working life of the refrigerator. The appliance is intended for commercial use only.
-
Page 10: Use Of The Equipment
3. Use of the equipment The refrigerator is for reserving fresh perishable food products with a built-in refrigerated unit. The operating temperature for refrigeration is: Between 33 degrees Fahrenheit and 45 degrees Fahrenheit at room temperature of 109 degrees Fahrenheit and 60%RH. 4. -
Page 11: Handling
6. Handling ▲The refrigerator arrive in PET film and packed in cardboard box on a wood pallet. ▲The refrigerator must be transported and handled with care to avoid posing a hazard to persons or property. ▲Never place a refrigerator with an in-built refrigerated unit on its side or turn it upside down as this may damage or impair operation of the refrigerated unit. - Page 12 ▲ This operation must be carried out by professionally and qualified persons. ▲ The refrigerator are supplied complete with a power supply cable for the connection to the main power supply. A thermomagnetic circuit breaker (not supplied) must be installed between the mains power point and the power supply cable of the refrigerator.
-
Page 13: Maintenance Instructions
▲ Check that the refrigerator is in order as demonstrated by the pilotlight incorporated in the main switch coming on Maintenance instructions The smooth operation and life of the equipment are mainly determined by correct and regular maintenance. Cleaning: Regular cleaning of the refrigerator unit is strongly recommendedeach month. -
Page 14: Technical Service
☆ Check that the plug is inserted properly in the socket ☆ Check that the switch on/off ☆ Check that the mains voltage powers the plug Refrigerator temperature go up: ☆ Unit to near to a heat source ☆ Condenser dirty or close ▲... -
Page 15: Configuration Sketch Map
12. Configuration Sketch Map 1. Microcomputer controller 2. CASTER 3. Water connection box 4. Power adapter 5. Evaporator 6. Compressor 7. Condenser fan 8. Condenserr 9. Evaporator fan Operating Instruction 1. New upright air-cooling refrigerator should be opened and ventilate it before it is in use. After that, users should use warm water clean its inside. - Page 16 controller works as: if the temperature increases and reaches set point plus differential the compressor is started and then turned off when the temperature reaches the set point value again. 3. Microcomputer Controller Operation Instruction: 4. Microcomputer panel sketch map, meanings of running indicator light and LED showing.
- Page 17 6. How to see the point . Push and immediately release the key, the set point will be showed; Push and immediately release the key or wait about 5s to return to normal visualisation. 7. How to change the setpoint . Push the SET key for more than 2 seconds to change the Set point value;...
- Page 18 Alarm signalling . Mess. Cause Outputs Compressor output according to “P1” Room probe failure “Cy”e“Cn” “P2” Evaporator probe failure Defrost end is timed Maximum temperature “HA” Outputs unchanged alarm Minimum temperature “LA” Outputs unchanged alarm “EA” External alarm Outputs unchanged “CA”...
- Page 19 Tab.1 normal operation start function icon blink Compressor request request defrost request output on output off alarm no alarm RTC fitted and RTC not fitted or ON if RTC enabled,at least 1 time disabled,not even 1 time clock fitted band set band set Table of functions activated by the buttons-models S,X,Y,C Tab.2...
- Page 20 Setting the set point(desired temperature) ▲ press SET for 1s the set value will start flashing after a few moments; ▲ increase or decrease the value using UP or DOWN; ▲ press SET to confirm the new value. Switching the device ON/OFF ▲Press UP for more than 3s.
-
Page 21: Technical Parameters
[d6=0] Our products have been modified precisely before leavingfactory, so to avoid damaging compressor unit or other malfunctions, users mustn’ t modify the microcomputer parameters privately. Technical Parameters MILK COOLER AMC-5801 3.0 +33~+45 R290 58×32×47 AMC-5802 3.0 +33~+45 R290 58×34×47... -
Page 22: Official Approval And Rules
OFFICIAL APPROVAL AND RULES CONFORMS TO UL STD.471 CERTIFIED TO CSA STD.C22.2 NO.120 CONFORMS TO NSF/ANSI STD. 7... - Page 24 R10001000536 version number 20230414...
