Page 1

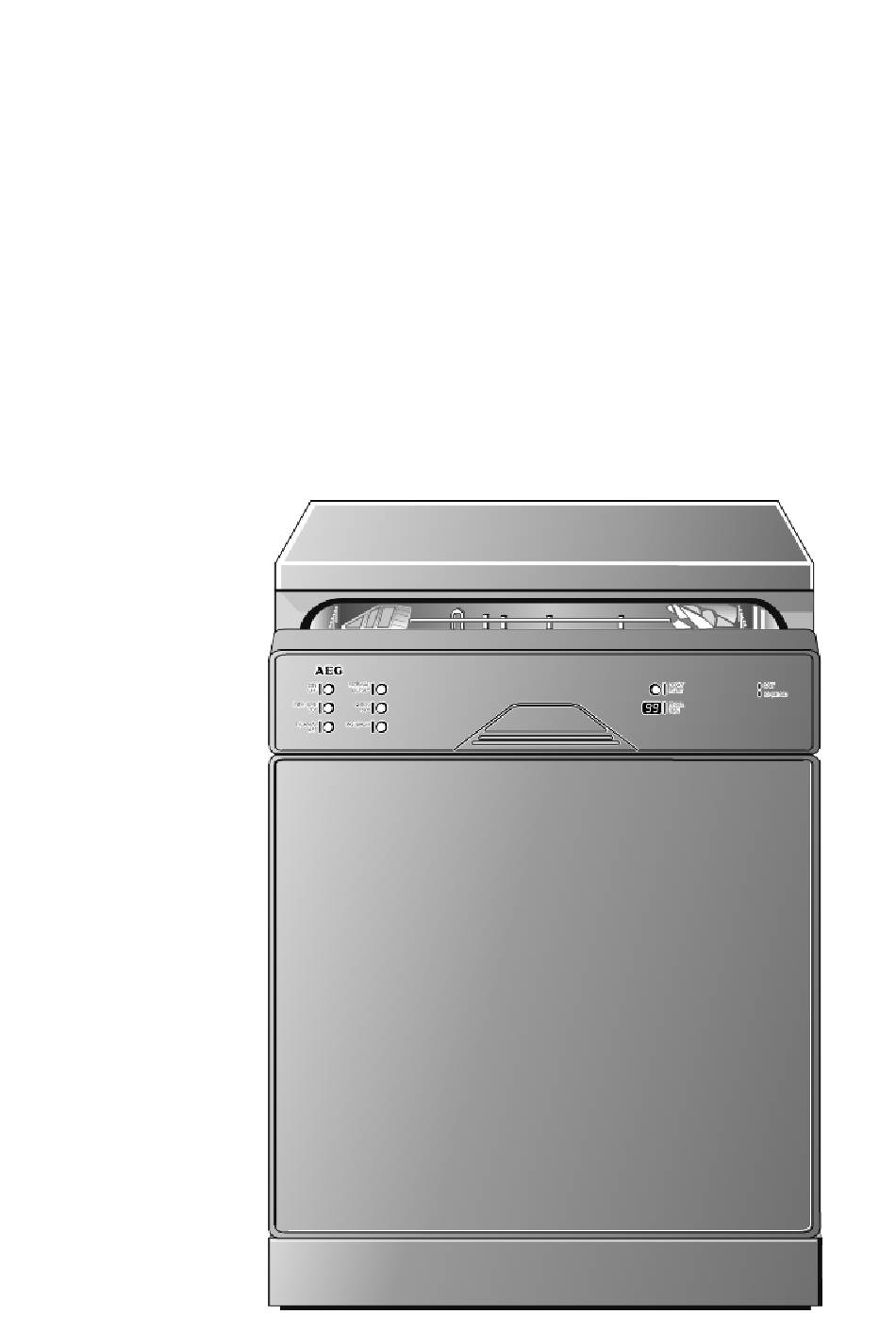

ÖKO_FAVORIT 50750 i Dishwasher User Instructions...
Page 2
In the event of a malfunction, these operating instructions contain information on how to rectify faults yourself, see the "What to do, if..." section. If these instructions are insufficient, please contact your AEG Service Force Centre. In this respect please read the chapter "Service & Spare Parts".
Operating Instructions OPERATING INSTRUCTIONS Safety Instructions The safety aspects of AEG electrical appliances comply with accepted technical standards and the German Appliance Safety Law. Neverthe- less, as a manufacturer we consider it our obligation to make you aware of the following safety information: Installation, Connection and Placing into Operation •...
Page 6
• If the mains lead is damaged, or is to be replaced for a longer lead, the cable (obtainable from AEG Service Force) must be replaced by a service engineer authorised by AEG. • Never unplug the appliance by pulling on the cable, always pull the plug.
Operating Instructions • In the event of a fault, first close the tap, then switch off the appli- ance and unplug it from the mains. If the appliance is permanently wired to the mains: remove the fuse. Disposal Disposing of the Packaging Material Dispose of the dishwasher packaging material correctly.
Operating Instructions Appliance Features and Control Panel Top Spray Nozzle Rubber Seal for Connecting the Water Feed to the Upper Spray Spray Arms Container for Salt Container for Rinse Aid Detergent Dispenser Rating Filters plate...
Operating Instructions Control panel Function Softener Door Handle Button Button Start Delay Indicators Multi-Display Control Field The Control Field comprises the ON/OFF switch and the programme buttons with LED indicators. Softener and Function Button: in addition to the wash program marked, it is also possible to adjust the dishwasher's water softener using the combination of these buttons.
Operating Instructions Adjust the Water Softener To avoid the scale deposits on the dishes and in the dishwasher, the dishes must be washed with soft, i.e. low lime content, water. The dish- washer therefore has a built-in water softener, in which tap water from a hardness of 4 °d (German degree) is softened with the aid of special salt.
Operating Instructions 6. When the hardness setting is correct, press the ON/OFF switch. The hardness setting is then saved. Filling with Salt for the Water Softener Use only special salt for dishwashers. Never fill the salt container with any another type of salt (e.g. culinary salt) or dishwasher detergent, as this would irreparably damage the water softener.
Operating Instructions the PRE WASH programme. This will wash away salt water that has run out of the container and any grains of salt that have been spilt. Depending on the size of the salt grains, it can take several hours for the salt to dissolve in the water and for the SALT indicator to extin- guish.
Operating Instructions 3. Fill with rinse aid, up to the broken line (maximum); this line corresponds to a quantity of approx. 150 ml 4. Replace the lid and tighten by turn- ing clockwise. 5. If rinse aid has been spilt, wipe up with a cloth.
Operating Instructions Loading Cutlery and Dishes Sponges, household cloths and any object that can absorb water should not be washed in the dishwasher For washing in the dishwasher the following cutlery/dishes are not suitable: are of limited suitability: • Cutlery with wooden, horn, •...
Operating Instructions Loading Cutlery Long bladed knives stored in an upright position are a potential hazard. Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Take care when loading or unload- ing sharp items such as knives.
Operating Instructions Loading Pans, Frying Pans and Large Plates Load large and heavily soiled dishes in the lower rack. To ease the loading of large items at some dishwasher-models the two rows of prongs for the right-hand plate insert can be folded down: 1.
Operating Instructions Loading Cups, Glasses and Coffee Services Load small, delicate items and long pointed cutlery in the upper rack. • Arrange items of crockery on the folding cups racks so that they are offset from each other and water can reach all items.
Operating Instructions Adjusting the Height of the Upper Rack Maximum Height of the Dishes in the Upper Rack Lower Rack With Raised Upper Rack 22 cm 31 cm With Lowered Upper Rack 24 cm 29 cm The height of the rack can also be adjusted when the rack is loaded. Lowering the Upper Rack: 1.
Operating Instructions Filling with Detergent Use only dishwasher detergent. Fill with Detergent: – Prior to the start of a wash programme (not for the Pre Wash pro- gramme). The detergent is released into the wash water during the programme. Please observe the manufacturer’s dosing and storage recommenda- tions given on the detergent packaging.
Operating Instructions Bio Wash Programmes and Concentrated Detergents Based on their chemical composition, dishwasher detergents can be split into two basic types: – Conventional, alkaline detergents with caustic components – Weak alkaline concentrated detergents with natural enzymes. The use of BIO wash programmes in conjunction with concentrated detergents reduces pollution and is good for your dishes;...
Operating Instructions Selecting the Wash Programme (Programme Table) Choose the most suitable wash programme with the aid of this table: Dessert Dishes Type of Dinner Service and Cooking Utensils and Coffee All Dish Types Dishes Service In Addition with non-tem- with perature resist- delicate glasses...
Operating Instructions Start the Wash Programme 1. Check that when the dishes and cutlery are loaded into the dishwasher the spray arms are free to rotate. 2. Open the tap fully. 3. Shut the door. 4. Press the ON/OFF button. The ON/OFF button indicator illuminates. 5.
Operating Instructions 1. Open the door of the dishwasher. The wash programme stops. 2. The indicator for the programme that is currently running extinguishes. 3. Close the door. The wash programme continues. Cancelling the wash programme 1. Press the button for the current wash programme and hold it pressed. The programme indicator for the current wash programme flashes for a few seconds and then extinguishes.
Operating Instructions Switching Off the Dishwasher Switch the dishwasher off when the multi-display indicates "0" for the remaining programme time. 1. Press the ON/OFF button. The ON/OFF button indicator extinguishes. Hot steam may escape from the appliance when opening the door immediately after the end of the programme.
Operating Instructions Cleaning the Filter The filters should be checked and cleaned regularly. Blocked filters will give poor wash results. 1. Open the door, remove the lower rack. 2. The dishwasher filter system com- prises a coarse/fine filter, microfilter and a flat filter. Unlock the filter sys- tem using the handle on the microfil- ter, and remove.
Operating Instructions What to do, if ... Try to rectify minor faults on the dishwasher with the aid of the instructions given here. If you call an engineer to resolve a of fault listed here, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is in guarantee.
Operating Instructions ...there are problems with the operation of the dish- washer. Symptom Possible Cause Solution The door of the dishwasher is Shut the door. not closed properly. Mains plug is not plugged in. Insert mains plug. The programme does House fuse is defective.
Operating Instructions There are streaks, milky spots or a bluish coating on glasses and dishes. – Lower rinse aid dosing. There are dried water drops on the glasses and dishes. – Increase rinse aid dosing. – The detergent may be the cause. Contact the detergent manufac- turer’s customer advisor.
Operating Instructions Notes for Test Institutes The salt container for the water softener and the rinse aid container must be completely full prior to the test. Test Standard: EN 5O 242 Comparative Programme: see "Program table; Test program" for full and half load Full Load: 12 place settings incl.
Installation and Connection Instructions INSTALLATION AND CONNECTION INSTRUCTIONS Installing the Dishwasher • The dishwasher must be installed on a firm floor and adjusted such that it is stable and level. • To compensate for unevenness in the floor and to match the height of the appliance to that of surrounding units extend the threaded feet by unscrew- ing.
Installation and Connection Instructions • Depending on type, the dishwasher is to be installed as follows: Dishwashers That Can Be Integrated (see installation template supplied) The door of the appliance can be fitted with a wooden/facing panel with the following dimensions: Width: 591 –...
Page 32
Installation and Connection Instructions • If the dishwasher is installed under- neath a kitchen work surface, the original work surface of the dish- washer is to be removed as follows: – Unscrew the screws (1) from the elbows on the back side. –...
• In order that access to the tap in the kitchen is not limited by the use of the dishwasher, we recommend the installation of an additional tap, or the fitting a two way adapter to the existing tap. • If you need a longer water inlet hose contact your local AEG Service Force Centre.
– Minimum required height 30 cm above the lower edge of the machine. Extension hoses • Extension hoses are available from AEG Service Force. The internal diameter of the extension hoses must be 19 mm to ensure that the function of the appliance is not impeded.
Installation and Connection Instructions Leak Prevention System For protection from damage due to water leaks, the dishwasher is equipped with a leak prevention system, the AQUA CONTROL SYSTEM. In the event of a fault, the safety valve immediately interrupts the sup- ply of water to the appliance and the drain pump switches on.
Installation and Connection Instructions Electrical Connection Any electrical work required to install this appliance should be car- ried out by a qualified electrician or competent person. WARNING - This appliance must be earthed. The manufacturer declines any responsibility should these safety measures not be observed.
Installation and Connection Instructions Connections The water inlet and drain hoses, as well as the mains cable must be connected beside the dishwasher as there is insufficient space behind the appliance. The plumbing and electrical installation example given below can only be regarded as a recommendation.
3. Should guarantee repairs be necessary the purchaser must inform the nearest customer service office (manufacturer´s service or authorised agent). AEG reserves the right to stipulate the place of the repair (i. e. the customer´s home, place of installation or AEG workshop).
...“ has been read, as the engineer will make a charge if the fault is not a mechanical or electrical breakdown. Customer Care For general enquiries concerning your AEG appliance or for further information on AEG products please contact our Customer Care Department by letter or telephone as follows:...
