AEG Oko-Favorit 50719 Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
INTENSIVE
INTENSIV
70 °
70°
NORMAL
NORMAL
65 °
65°
NORMAL
NORMAL
BIO 50 °
BIO 50°
© AEG Hausgeräte GmbH
Muggenhofer Straße 135
D-90429 Nürnberg
Germany
Fax +49 (0)911 323 1420
TSE - N
Edition:
10.00
TIME
ZEIT-
CLEAN
3 h
REINIGEN
SELECTION
VORWAHL
DRY
6 h
TROCKNEN
QUICK
QUICK
END
9 h
ENDE
50 °
50°
SALT
SALZ
VOR-
PRE
SPÜLEN
WASH
DETERGENT
KLARSPÜLER
Publ.-Nr.:
599 50 84 90
685
EN

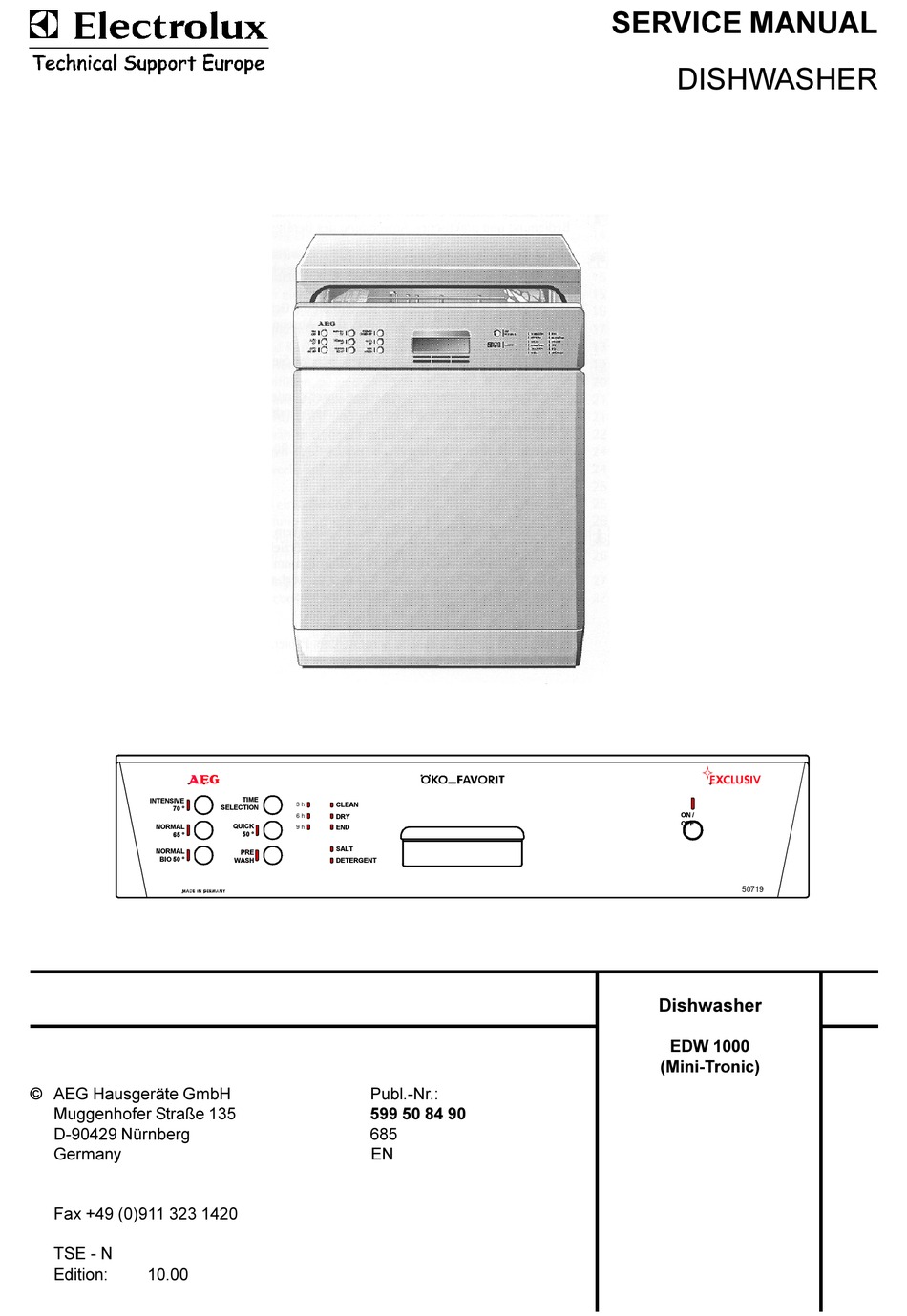

SERVICE MANUAL
DISHWASHER
ON /
EIN / AUS
OFF
50719
EDW 1000
(Mini-Tronic)

Advertisement

loading

Related Manuals for AEG Oko-Favorit 50719

Summary of Contents for AEG Oko-Favorit 50719

  • Page 1 NORMAL VOR- BIO 50 ° BIO 50° SPÜLEN WASH DETERGENT KLARSPÜLER 50719 EDW 1000 (Mini-Tronic) © AEG Hausgeräte GmbH Publ.-Nr.: Muggenhofer Straße 135 599 50 84 90 D-90429 Nürnberg Germany Fax +49 (0)911 323 1420 TSE - N Edition: 10.00...
  • Page 2 - 2 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 3 * Appliances with height-adjustable feet Plinth height for appliances 820 mm high 100 - 175 mm Plinth height for appliances 870 mm high 150 - 230 mm - 3 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 4 TIME INTENSIVE INTENSIV ZEIT- CLEAN REINIGEN SELECTION 70 ° 70° VORWAHL ON / EIN / AUS TROCKNEN QUICK NORMAL NORMAL QUICK ENDE 65 ° 65° 50 ° 50° SALT SALZ NORMAL NORMAL VOR- BIO 50 ° BIO 50° SPÜLEN WASH DETERGENT KLARSPÜLER 50719...
  • Page 5 65 mm 45 mm 2800 1/min, 2200 1/min, 1900 1/min, 1700 1/min, 1600 1/min, 50 W. - 5 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 6 NTC-Tem peraturfühler Tem perature sensor NTC-resistor 20 °C / 6032 Ω Temperatur/Widerstand 25 °C / 4829 Ω temperature/resistor 30 °C / 3891 Ω (nur bei vollelektron. 40 °C / 2573 Ω Geschirrspüler) 50 °C / 1741 Ω (only for fully electronic dishw asher) 55 °C / 1444 Ω...
  • Page 7 The components required for water softening. softener unit regeneration dosage chamber The incoming water flows through the softener which works according to the ion exchange principle. The ion exchanger is filled with small epoxy resin balls. The resins exchange the hardness constituents (calcium and magnesium), for sodium ions.
  • Page 8 Thermal sensor (1) Drain pump (2) Pressure switch (3) Flow heater (1) Terminal board (2) Inlet valve (3) To remove side panel : Removing the regeneration dosage chamber : - 8 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 9 Removing the softener unit : Removing the base : With base removed the circulation pump (1) is accessible. - 9 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 10 - 10 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 11 - 11 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 12 - 12 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 13 The water flows into the regeneration dosage chamber (7) via inlet valve (1), over air break (2), into regeneration dosage chambers (3) into softener (8). At this point the water divides. 1/4 of the water enters the tub through the vent (23). 3/4 of the water enters the sump (24) through hose (6). The level control chamber built into the sump operates the pressure switch (15).
  • Page 14 s tatic water dynamic water max. 4 load load r epetitions to level with level contr ol T imeout 1 T imeout 2 speed mi n tar get- s peed ≥20 S ek. 10 S ek. 5 S ek. 5 S ek. 1600 time in S ek.
  • Page 15 SXOVH ZDVK SXOVH  PLQ 3DXVH  PLQ WDUJHW VSHHG LQ G\QDPLF ILOOLQJ 0,9 sec 4,5 sec 2200 1/min 0,6 sec 3 sec 1900 1/min 0,3 sec 1,5 sec 1700 1/min speed 2800 var iable s peed 1600 20 S ec. high,r high,r high,r...
  • Page 16 high, r high high, r high,r high Qˆy†rÃXh†u Qˆy†rÇv€r Ã!'à €v Qh ˆ†r à %à €v V†r Ðv‡uÃXh†uÃ8’pyr † 9rsvv‡v‰rÃUv€r ÃÃShq‚€ÃUv€r 9r svv‡v‰rÃUv€r ÃÃShq‚€ÃUv€r 0.9 sec 0 - 0.3 sec 0 - 1.5 sec prewash intensive wash intensive 0.6 sec 0 - 0.3 sec 0 - 1.5 sec wash and intermediate wash...
  • Page 17 dr ain pump 1 dr aining s equence with var iable timing level check! (var iable) (var iable) (var iable) 'UDLQ &\FOH First draining before every wash cycle 45 sec 15 sec 20 sec Draining after the wash cycles 30 sec 20 sec 10 sec - 17 -...
  • Page 18 During the wash cycle the water is pumped out at various stages. First the draining water cleans the filters (16). The filters are open at the bottom which allows any soilage to be rinsed off sufficiently. There is a non-return valve (20) at the inlet connection to the drain pump (19). This valve prevents the water - 18 - TSE-N 10.00 A.
  • Page 19 Drain hose connection: Max. permissible height: 1 metre; Min. height required 30 cm above floor level. The drain hose can be extended horizontally to a maximum length of 3 metres, at a height of 85 cm. The water chamber for regeneration (3) contains 350 ml water. During regeneration, the regeneration valve (11) is energized.
  • Page 20 - 20 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 21 L D9 L D4 L D8 L D1 L D0 L D7 L D10 L D6 L D11 L D5 L D2 L D13 L D12 L D3 L D14 L D8 L D9 L D0 L D7 L D10 L D1 L D2 L D3...
  • Page 22 - 22 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 23 - 23 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 24 L D8 L D7 L D6 L D8 L D7 L D6 L D8 L D7 L D6 - 24 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 25 - 25 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 26 - 26 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 27 L D1 L D0 Tastenanordnung L D2 senkrecht L D1L D2 L D0 Tastenanordnung waagrecht S 1 S 2 Show with adjustment water hardness LED LD1 WH 5 41 - 50 dH 5x blinking WH 4 30 - 40 dH 4x blinking WH 3 19 - 29 dH...
  • Page 28 3URJUDP 5XQ 'LVSOD\ 6WHS )XQFWLRQ 7LPH LED 9 static filling up to level dynamic filling 10 sec pause 5 sec up to level + circulation pump with dynamic filling increasing speed up to 1900 1/min circulation pulse 2 heating up to 50 °C detergent dispenser 30 sec LED 10...
  • Page 29 valve dis pens er heating r es et-valve r egener . dos . dr ain pump cir culation pump all OF F 20s ek. 60s ek. 60s ek. 20s ek. 60s ek. 60s ek. 60s ek. L D9 L D9 L D9 L D9 L D9...
  • Page 30 - 30 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 31 L D1 L D2 L D3 L D4 L D5 L D8 L D9 L D0 L D1 L D4 L D8 L D9 L D7 L D10 L D7 L D10 L D6 L D11 L D6 L D11 L D2 L D5 L D12...
  • Page 32 Failure display Visible in failure 9v†ƒyh ’ visible memory Ah vyˆ…r Tu‚…‡Ãqr†p…vƒ‡v‚ Xuh‡Ãuh ƒƒr†4 QQ9ÃÃG@9† for customer (After sales) Timeout for filling - Failure recognised if ... L D9 1) ... after 2 min of static filling ... Progr.-LED blinking. Program stopped. Closed water tap 2) ...
  • Page 33 3URJUDPV )OH[LEOH SURJUDPB )OH[LEOH SURJUDPB ,QWHQVLY ƒ ,QWHQVLY ƒ 1RUPDO ƒ 1RUPDO %LR ƒ (QHUJ\VDYLQJ (&2 ƒ (&2 %,2 ƒ (DW ORDG 5XQ 4XLFN ƒ 4XLFN ƒ 3UH ZDVK /LQH SURJUDP - 33 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 34 - 34 - TSE-N 10.00 A. B. 599 50 84 90 EN...
  • Page 35 L D9 L D10 L D11 - 35 - TSE-N 10.00 A. B. 599 50 84 90 EN...
