Summary of Contents for ICE COBOTICS i18B

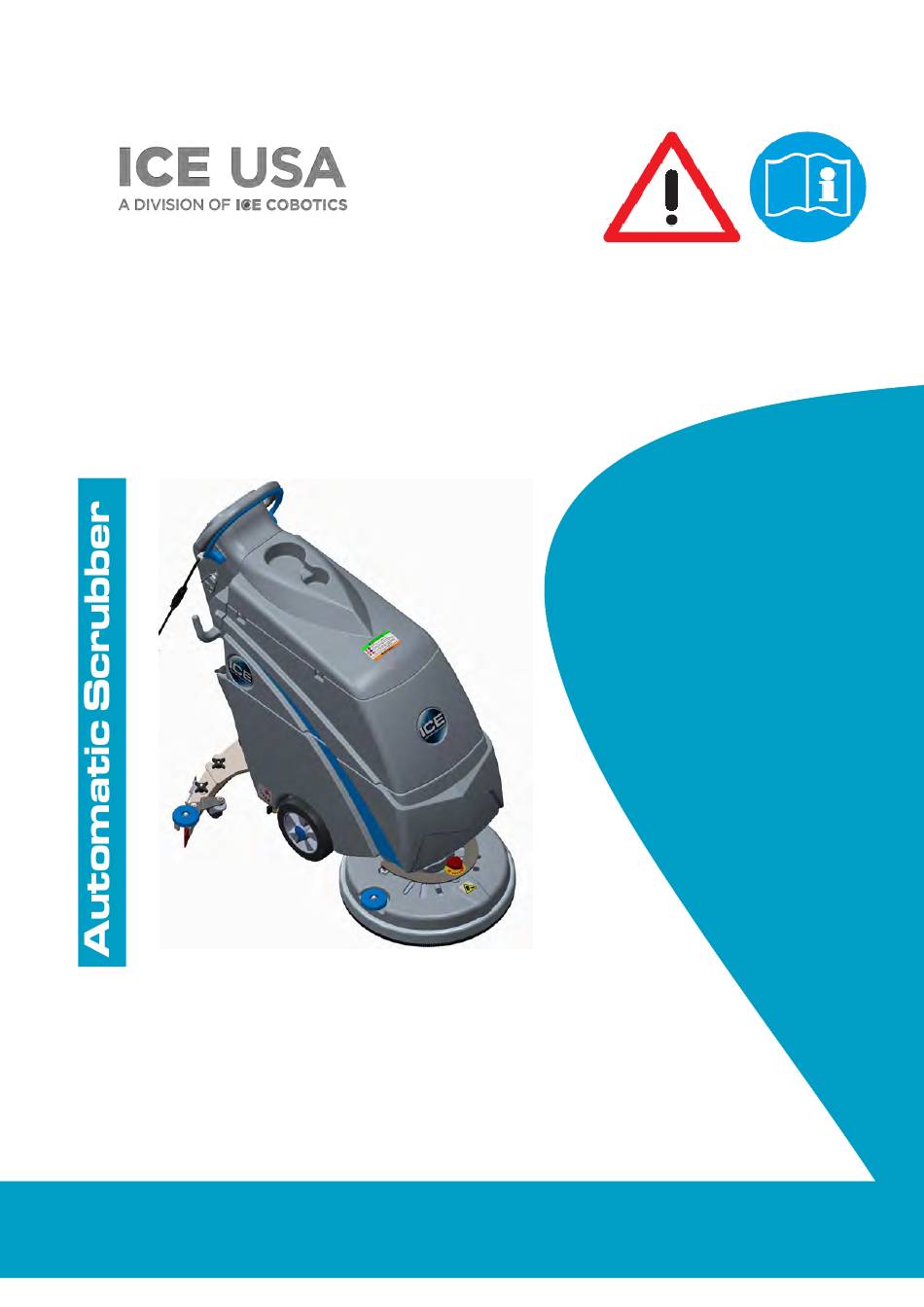

- Page 1 OPERATOR & Parts Manual i18B i18C 8019009 REV.07(06-2023)
- Page 2 Customer ID Number Installation Date HOW TO ORDER PARTS Only use ICE Cobotics Company supplied or equivalent parts. Parts and supplies may be ordered online,by phone, by fax or by mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label.
-
Page 3: Table Of Contents
OPERATOR MANUAL TABLE OF CONTENTS SAFETY PRECAUTIONS......................4 MACHINE COMPONENTS....................6 MACHINE SETUP & INSTALLATION..................7 MACHINE OPERATION....................8 WHILE OPERATING MACHINE..................8 TANK DRAINING.........................8 PREVENTATIVE MAINTENANCE..................10 BASIC TROUBLESHOOTING....................12 TECHNICAL SPECIFICATION..................13 PARTS LIST....................14-32 WEAR & TEAR PARTS LIST................33 WIRING DIAGRAM ..................34-35 i18B/i18C... -
Page 4: Safety Precautions
OPERATOR MANUAL SAFETY PRECAUTIONS( FOR i18B WARNING:Batteries may emit hydrogen gas. Explosion or fire can result This machine is intended for commercial use. It from hydrogen gas. Keep sparks and open is designed exclusively to scrub hard floors in an... - Page 5 The replacement must be performed only by an authorized person or by our customer service center. WARNING:Flammable materials can cause explosion or fire. Do not use flammable materials in tanks or pick them up. i18B/i18C...
-
Page 6: Machine Components
18. Knob 19. Clear tube 20. Switch for brush motor 21. Switch for vacuum motor 22*. Battey monitor 23. Circuit breaker 24*. Charger power cord 24**. Power cord 25. Adjustable wheel * : only for i18B **:only for i18C i18B/i18C... -
Page 7: Machine Setup & Installation
1) Sweep the outside of the machine. 2) Check battery meter to make sure batteries are fully charged (see battery charging, only for i18B ). 3) Check that squeegee and brush / pad is properly installed. 4)Theforwardspeed of machine can be controlled by turning the handle(10). Turn the handle clockwise to speed up machine. -
Page 8: Machine Operation
WARNING:Any time scrubbing is completed, or when refilling solution tank, the recovery tank should be drained and cleaned. WARNING:If the recovery tank is not drained when the solution tank has been refilled, foam or water may enter the float shut-off mechanism and cause damage to the vacuum motor. i18B/i18C... - Page 9 "O" ring filter cover BATTERY CHARGING (ONLY FOR i18B) Each machine was equipped with on-board charger and batteries, please use oringinal parts only. WARNNING: Fire or explosion hazard. Batteries may emit hydrogen gas. Keep sparks and open flame away. Keep battery compartment open when charging.
-
Page 10: Preventative Maintenance
6) Unplug vacuum motor from power source and hose cuff & remove the drain hose from the holder prior to removing the recovery tank when performing maintenance. 7) Check the condition of the squeegee blade wiping edge, rotate blade or replace it if worn. i18B/i18C... - Page 11 OPERATOR MANUAL MONTHLY MAINTENANCE 1) Clean the battery tops to prevent corrosion (only for i18B). 2) Check for loose battery cable connections (only for i18B). 3) Inspect and clean the recovery tank cover seal. Replace it if damaged. 4) Lubricate all grease points and pivot points with silicon spay and approved grease.
-
Page 12: Basic Troubleshooting
Remove float shut off from inside recovery tank and Float shut off is clogged remove any debris Low battery charge Fully recharge batteries Defective batteries Replace batteries short runtime* Batteries need maintenance See BATTERY MAINTENANCE Faulty battery charger Repair or replace battery charger * ONLY FOR i18B i18B/i18C... -
Page 13: Technical Specification
OPERATOR MANUAL TECHNICAL SPECIFICATION ITEM i18B i18C Working Width 18in / 450mm Squeegee Width 30in / 762mm Productivity rate 16145 ft h / 1500m 12915 ft h / 1200m Brush Dia. 18in / 450mm Brush Speed 180rpm Max Pad Pressure... -
Page 14: Parts List
PARTS LIST RECOVERY TANK GROUP i18B/i18C... - Page 15 8112008 CARBON BRUSH (FRO i18B) 8011022 CARBON BRUSH (FRO i18C) 1113608 SELFLOCKING NUT M6 1411612 PLAIN WASHER φ6×φ12×1.6 8011007 MUFFLER 8132050 VACUUM MOTOR 24V, KIT (FRO i18B) 60003100101~60003100364 8112100 VACUUM MOTOR 24V, KIT (FRO i18B) 60003100365~60012103001~ VACUUM MOTOR 110V, 500W, KIT (FRO...
- Page 16 COVER TANK ASSEMBLY PART SERIAL DESCRIPTION NUMBER NUMBER REQ'D 8012005 COVER TANK 8012001 WARNING LABLE 50010000124~50010100713 8111022 WARNING LABLE (FOR i18B) 60003000364~60012103001~ 8012003 WARNING LABLE (FOR i18C) 51010101150~ 8011005 8012002 GASKET 60003100471~60012103001~ 8012002A GASKET 50010100557~51010101228~ Note: DIA NO 4:Supplier change, code update.
- Page 17 PARTS LIST SOLUTION TANK GROUP i18B/i18C...
- Page 18 CONNECTOR(BLACK i18B) CONNECTOR,BATTERY,BLACK 8050475-1 ANDERSON 5916G4(i18B) 60003000364~60003000853 8013001 SOLUTION TANK 50010000124~50010000713 60003100945~60012103001~ 8017001 SOLUTION TANK 50010100713~51010101228~ SOLUTION TANK(I18B,I18C REPLACE 8133033 THE OLD WATER TANK 8013001) 8013010 12V BATTERY (FOR i18B) 1321110 AUTO TAPPING SCREW ST3.5×10 1421409 PLAIN WASHER φ4×φ9×0.8 8133002...
- Page 19 PARTS LIST CONTROL BOX ASSEMBLY (FOR i18B) i18B/i18C...
- Page 20 OVERLOAD PROTECTOR 35A 1421518 PLAIN WASHER 5×18×2 1021512 HEX HEAD BOLT M5×12,SS 8034011 BAFFLE 8014101 LIFTING ROPE SPACER 1021630 HEX HEAD BOLT M5×12,SS 8014045 TRANSPARENT PLATE 8014006 WATERPROOF SWITCH 250V 16A 8014043 WIRE BUFFER 8014041 WIRE CLAMP 1221616 PH SCREW M6×16,SS i18B/i18C...
- Page 21 8014031 HEX BUSHING 8014032 SPRING ROD 8014035 SPRING 1211320 PH SCREW M3×20 1434300 WASHER WITH TOOTH 3 8114712 MICROSWITCH 1113507 SELFLOCKING NUT M5 8210421 RELAY 24VDC 30A 1123406 SELFLOCKING NUT M4, SS Note: DIA NO 15、19:Supplier change, code update. i18B/i18C...
- Page 22 PARTS LIST CONTROL BOX ASSEMBLY (FOR i18C) i18B/i18C...
- Page 23 1021512 HEX HEAD BOLT M5×12,SS 8014101 LIFTING ROPE SPACER 1021630 HEX HEAD BOLT M6×30,SS 8014006 WATERPROOF SWITCH 250V 16A 8014041 WIRE CLAMP 8014043 WIRE BUFFER 1221614 PH SCREW M6×14 1422616 SPRING WASHER 6 2320403 STRAIN RELIEF 8014007 PANEL DECAL i18B/i18C...
- Page 24 CONTROL TRIGGER 1534608 SET SCREW M6×8 8014031 HEX BUSHING 8014032 SPRING ROD 8014035 SPRING 1211325 PH SCREW M3×25 1411309 PLAIN WASHER φ3×φ9×0.8 8014071 SWITCH 8014061 SWITCH BRACKET 8014002 REAR PANEL 8014034 BRACKET Note: DIA NO 9、13:Supplier change, code update. i18B/i18C...
- Page 25 PARTS LIST SCRUB HEAD GROUP i18B/i18C...
- Page 26 PARTS LIST SCRUB HEAD GROUP PART SERIAL DESCRIPTION REQ'D NUMBER NUMBER 8015200 MOTOR 24V 550W, KIT (FOR i18B) 8015220 MOTOR 120V 550W, KIT (FOR i18C) 8015020 ADJUSTING HANDLE 8015010 BRUSH HANGER 1511065 HEX SOCKET SCREW M10×65 1644220 PIN 12×20 8015101...
- Page 27 SELFLOCKING NUT M10 8015115 NYLON WASHER φ10.5×φ30×2.5 8015121 SPACER 13×10.5×5.5 8015002 BRACKET 8116004 DETENT RING 1656432 KEY 6.35×32 8015003 SPACER 25.5×19.5×5 8115004 SPRING 23 △ PART SERIAL DESCRIPTION REQ'D NUMBER NUMBER 9050018 BRUSH 18" 9040017 PAD DRIVER 17" 9000001 BIG MOUTH i18B/i18C...
- Page 28 PARTS LIST SQUEEGEE HOLDER ASSEMBLY i18B/i18C...
- Page 29 SPRING 60003000364 8115405 SLEEVEE, P/M 50010000124~50010000518 60003000365~60012103001~ 8115005 SLEEVEE, P/M 50010000519~51010101228~ 8037010 BRACKET, SQUEEGEE 1123115 SELFLOCKING NUTS M12 8115001 SQUEEGEE SUPPORT 8037015 PIN 12×70 1645324 COTTER PIN Note: NO 9：The results are optimized and will also fit older machines. i18B/i18C...
- Page 30 SOLUTION SYSTEM ASSEMBLY SOLUTION SYSTEM ASSEMBLY PART SERIAL DESCRIPTION REQ'D NUMBER NUMBER 1962016 HOSE CLAMP 8018004 HOSE 8018007 SOLENOID VALVE, 24V (FOR i18B) 8018009 SOLENOID VALVE, 110V (FOR i18C) 8018003 HOSE 8119006 HOSE CLAMP 8119200 WATER FILTER 8018002 HOSE 8013007 JOINT...
- Page 31 PARTS LIST SQUEEGEE ASSEMBLY i18B/i18C...
- Page 32 8118200 RIGHT BRACKET 1121008 HEX NUT M10 8118600A CLAMP ASSEMBLY 8118624 SHAFT 8118623 SPACER 1123507 LOCK NUT M5 8011003 VACUUM HOSE 8011060 VACUUM HOSE 8118000 SQUEEGEE ASSEMBLY, LINATEX 8118000-PU SQUEEGEE ASSEMBLY, PU Note: DIA NO 27:Supplier change, code update. i18B/i18C...
-
Page 33: Wear & Tear Parts List
R E A R S Q U E E G E E B L A D E , 8118022 LINATEX F R O N T S Q U E E G E E B L A D E , 8118021 LINATEX 9040017 PAD HOLDER, 17 INCH 9050018 BRUSH, 18 INCH i18B/i18C... - Page 36 CERTIFICATE OF QUALIFIED MODEL : SERIAL NO.: INSPECTOR: DATE : ICE Cobotics (GuangDdong) Company Limited TEL : (+86) 769 8186 9000 FAX : (+86) 769 8186 3000...
