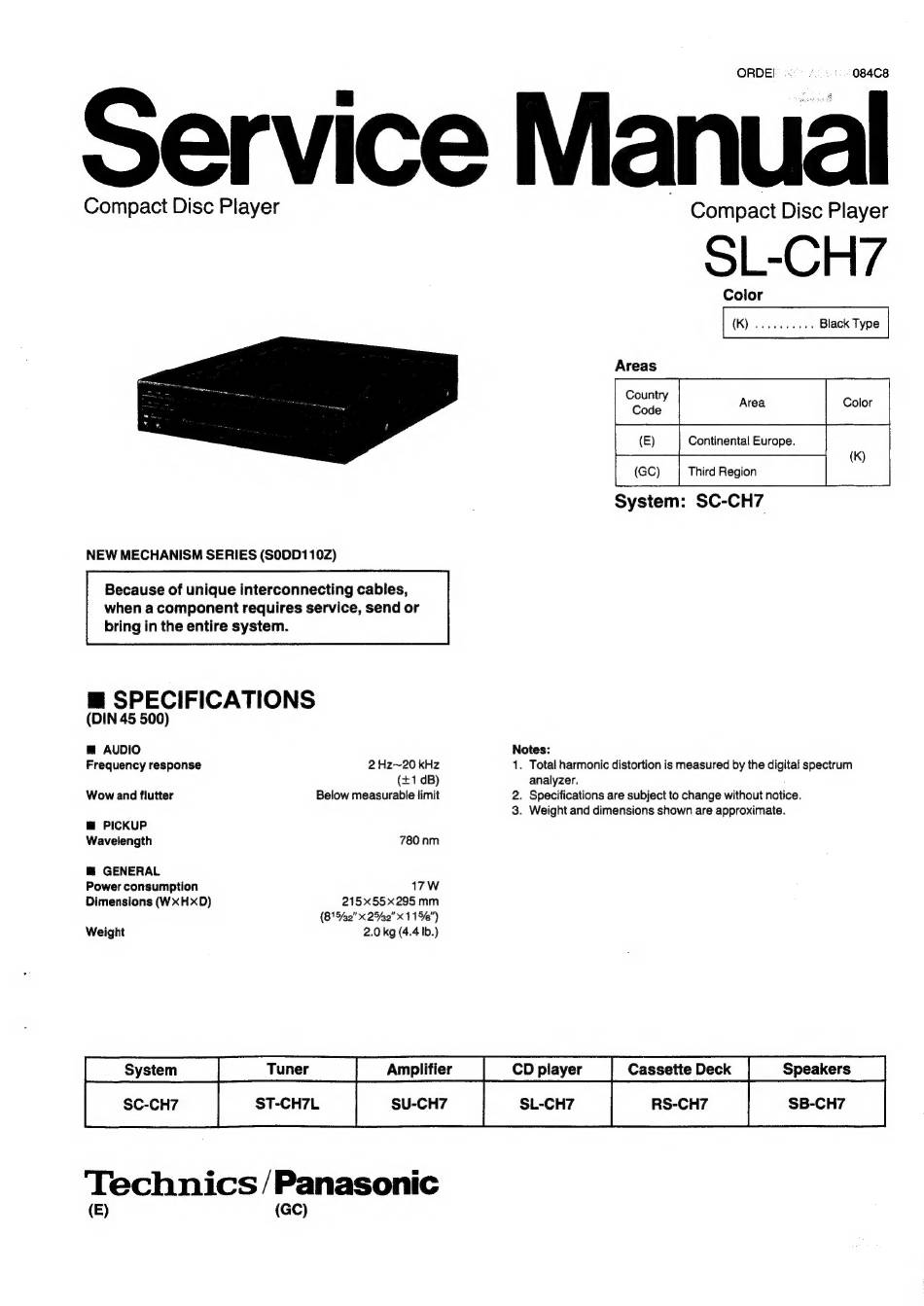

Technics SL-CH7 Service Manual

ORDE! 20° f200-:-084C8
OL-CH7
Color
(KY ced dee-2 Black Type
Areas
Country
Continental Europe.
(K)
(GC) Third Region
System: SC-CH7
NEW MECHANISM SERIES (S0DD110Z)
Because of unique interconnecting cables,
when a component requires service, send or
bring in the entire system.
m SPECIFICATIONS
(DIN 45 500)
@ AUDIO Notes:
Frequency response 2 Hz~20 kHz 1. Total harmonic distortion is measured by the digital spectrum
(+1 dB) analyzer.
Wow and flutter Below measurable limit 2. Specifications are subject to change without notice.
3. Weight and dimensions shown are approximate.
@ PICKUP
Wavelength 780 nm
@ GENERAL
Power consumption 17W
Dimensions (WxHxD) 215x55x295 mm
(8152" x 25%" x 115%")
Weight 2.0 kg (4.4 Ib.)
Tuner [Amplifier | CDplayer | Cassette Deck
SC-CH7 ST-CH7L SU-CH7 SL-CH7 RS-CH7 SB-CH7
'Technics /Panasonic
(E) (GC)
