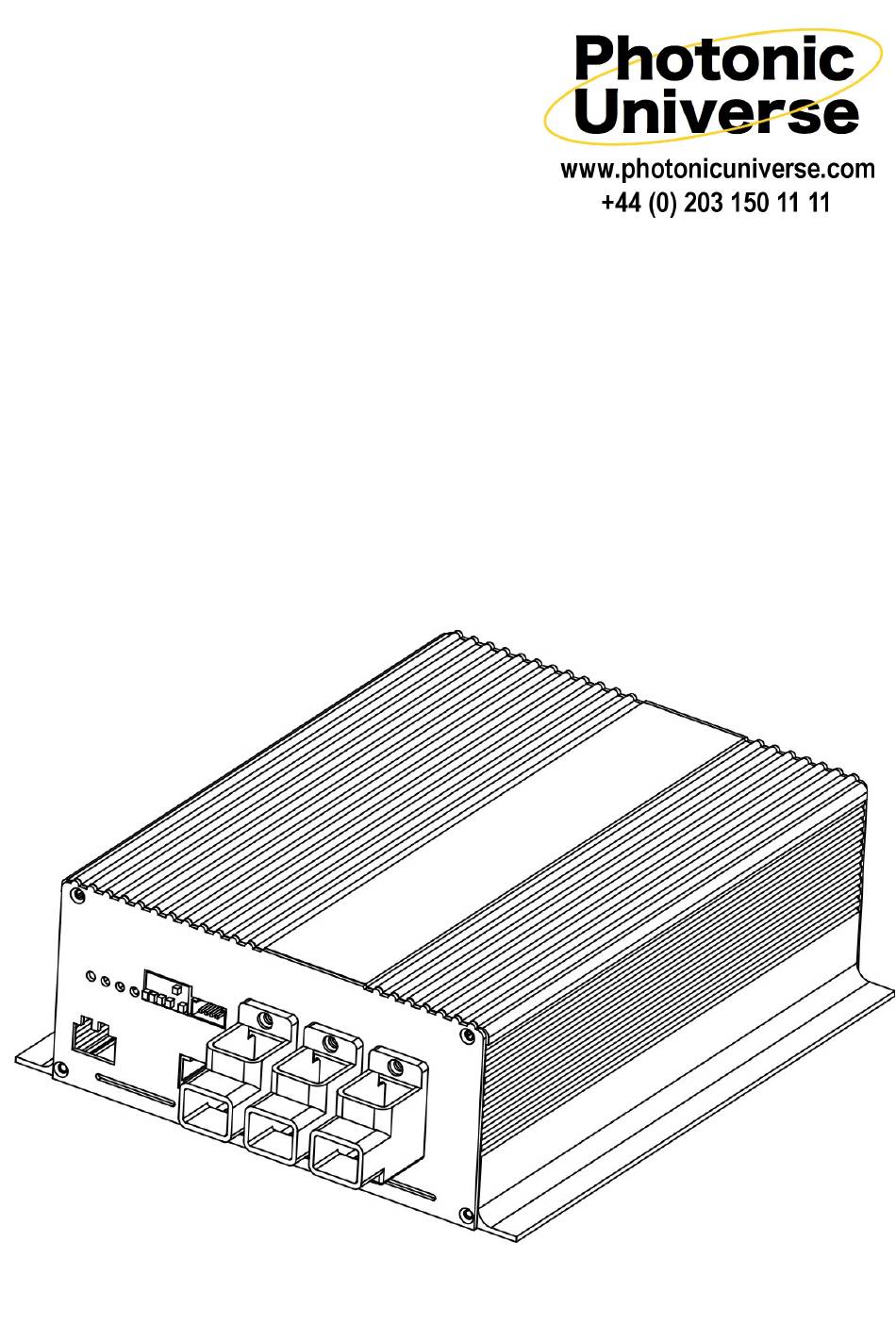

- Page 1 12V to 48V/36V DC to DC Battery Charger DC1248-16 and DC1236-18 series INSTRUCTION MANUAL...
- Page 2 Overview This 12V to 48V / 36V Photonic Universe DC-DC battery charger is fully automatic and ideal for leisure vehicles, commercial and special purpose vehicles, boats, and any other systems with multiple batteries or power sources. The charger operates using an adjustable three-stage charging programme and is suitable for lead acid, AGM, GEL, LiFePO4 and Lithium-ion (NCM) batteries.
- Page 3 Note: the current flowing between the charger and the source battery (12V) will be approximately 3-4 times greater than the current flowing between the charger and the target battery (48V / 36V). The thickness and the current rating of the connecting cables should be chosen accordingly, with the source battery connected by significantly thicker cables.
- Page 4 Green terminals The charger features a pluggable terminal block of 3 green terminals. In a place with limited installation space, the terminal block can be unplugged for connection or disconnection of the wires and then re-inserted. The size of the cable for this terminal block is 0.75mm² and the stripping length is about 6mm.
- Page 5 DIP switches DIP switch 1: select charging power. DIP switch position Description 1: ON The charger runs at half the rated current 1: OFF The charger runs at full power DIP switch 2: select the trigger method to start charging. DIP switch position Description Voltage control mode: no need to connect “D+”...
- Page 6 DIP switches 4, 5, and 6: select battery type. Boost voltage DIP switch position Battery type DC1248-16 DC1236-18 4: ON 5: ON 57.2V 42.9V 6: ON 4: ON 5: ON Lead-acid 57.6V 43.2V 6: OFF 4: ON 5: OFF 58.8V 44.1V 6: ON 4: OFF...
- Page 7 Reduced current charging The charger will measure the voltage of the source battery at the start and will continue measuring it throughout the charging process. If the voltage of the source battery is low at any point, the charging current will be reduced, until the Recovery voltage value is reached. The exact amount of charging current will depend on the D+ signal setting (DIP switch 2).
- Page 8 LED indicators Note: when the charger starts, it performs a self-test during which all of the LED indicators are on for 1 second. Colour LED status Charger status No D+ signal, no charging Source battery voltage is < 11.5V. Slow flashing If the source battery voltage reduces (1 flash / 5 seconds) further to <...
- Page 9 Float charging stage: after the absorption stage, the charger will reduce the charging voltage to the float voltage and continue charging the target battery with a low current to maintain it at this level. Equalisation: for selected battery types, the charger will perform equalisation charging by timer once a month with a higher charging voltage, in order to bring all battery cells to the same level.
- Page 10 • If the temperature is > 70°C / 68°C but < 72°C / 70°C, the charger tries to limit the input current to reduce the temperature. • If the temperature is > 72°C / 70°C, the charging stops. • If the temperature is > 60°C for 2 minutes, the charging stops. In case if overheating protection stops charging, the charger can Overheating automatically resume charging when the temperature falls below...
- Page 11 Specifications Model DC1248-16 DC1236-18 Target battery GEL, Lead-acid, AGM rated voltage LiFePO4 rated voltage 51.2V 38.4V Lithium-ion (NCM) rated voltage 44.4V 33.3V Battery operating voltage range 28V - 59.2V 21V - 44.4V Source battery Battery rated voltage Minimum recommended capacity 60AH Battery voltage input range 11.5V - 16V...
- Page 12 Dimensions...
- Page 13 Optional surface mounted (CB series) and recess mounted (CBR series) DC circuit breakers can be purchased from Photonic Universe and used instead of fuses when connecting this charger to the source and target batteries. The range of circuit breakers includes 30A - 80A circuit breakers rated for 12V / 24V / 48V systems with product codes CB30 –...
- Page 14 Remote Monitor ACDC-RM (optional) An optional remote LCD monitor ACDC-RM can be connected to the charger to display charging parameters such as real time battery voltage, charging current, charging Ah, charging Wh and any fault information. Bluetooth dongle ACDC-BT (optional) Using an optional Bluetooth dongle ACDC-BT, the charger can be connected to a mobile phone app to allow the user to monitor charging parameters such as real time battery voltage, charging current, charging Ah, charging Wh and any fault information.
- Page 15 If you would like to purchase any of these optional extras, please visit our online shop www.PhotonicUniverse.com or call 0203 150 1111 (international +44 203 150 1111) for a phone order.
- Page 16 Photonic Universe Ltd E-mail: info@photonicuniverse.com Web: www.photonicuniverse.com Tel.: +44 (0) 203 150 11 11 Fax: +44 (0) 203 150 12 12...
