Toray TUF Rack Series Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
06-G-MB2-TUFRack-2020HN-240808

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUF Rack Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toray TUF Rack Series

Summary of Contents for Toray TUF Rack Series

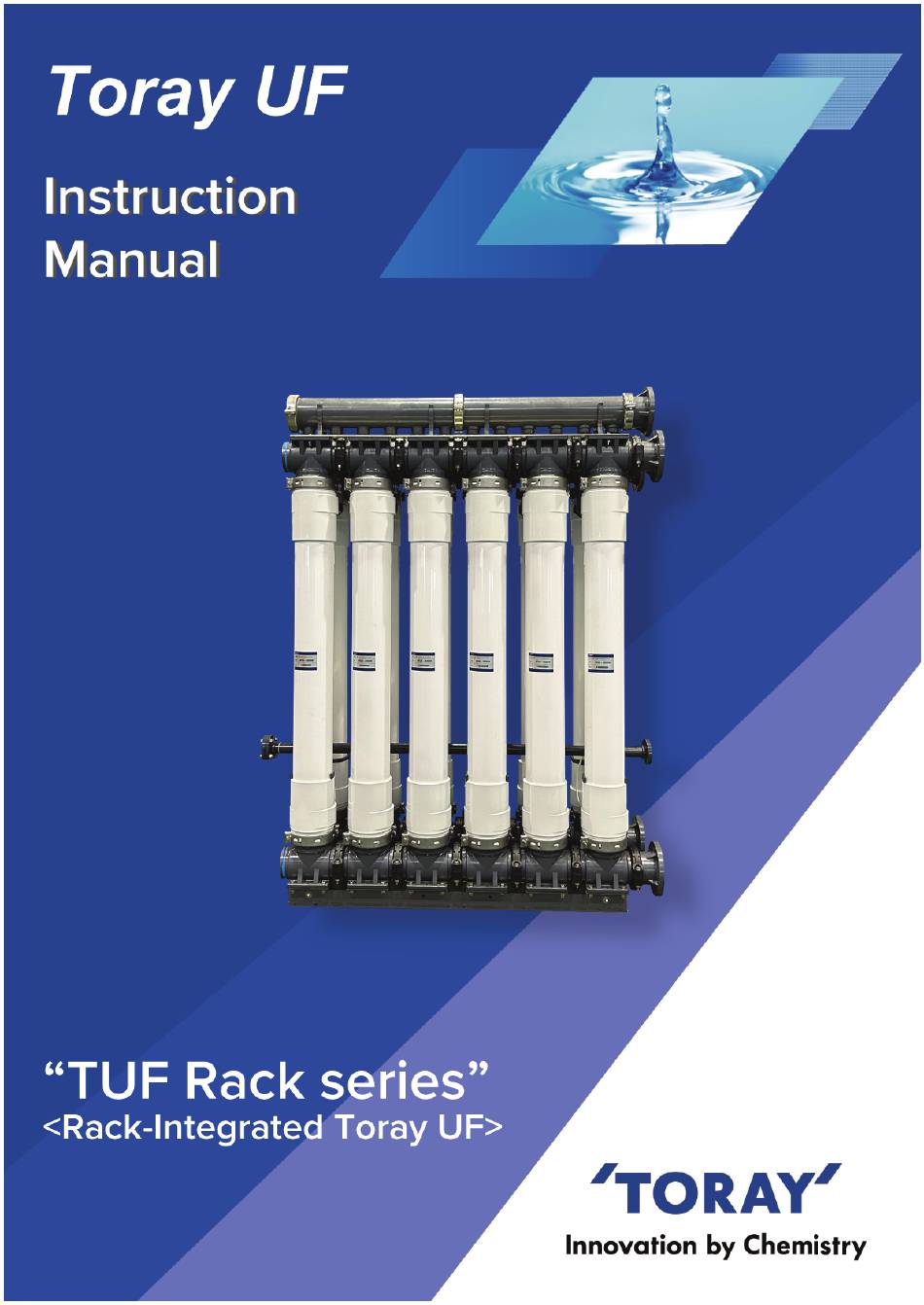

  • Page 1 06-G-MB2-TUFRack-2020HN-240808...
  • Page 2 Toray shall not be responsible or liable for any losses or damage incurred due to the use of the information in this document. The information in this document is subject to change without prior notice, and Toray reserves the right to suspend or discontinue the publication of this document.
  • Page 3 Toray UF Contact Information Toray Industries, Inc. — UF & MBR Membrane Products Department (Global Headquarters) Nihonbashi Mitsui Tower, 1-1, Nihonbashi-Muromachi 2 chome, Chuo-ku, Tokyo, 103-8666 Japan Tel: +81-3-3245-4542 Fax: +81-3-3245-4913 Toray Membrane USA, Inc. (TMUS) 13435 Danielson Street, Poway, California 92064 USA...

  • Page 4: Table Of Contents

    Backwash and Air-scrubbing ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ 51 Toray Maintenance Cleaning ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ 55 ・...

  • Page 5: Introduction

    　(3) High Mechanical Strength 　The membrane of HFUG series has very high mechanical strength because it is made 　of PVDF with the special spinning method developed by Toray. HFUG series provides 　high integrity and durability under recommended operating conditions. 　(4) High Chemical Durability 　The membrane material of HFUG series is PVDF, which allows to clean the membrane...

  • Page 6: Toray Uf Tuf Rack

    Toray UF 4. Toray UF TUF Rack <Rack-Integrated Toray UF> Pre-engineered, standardized rack design specialized for Toray UF modules to significantly reduce engineering design and installation costs. Highly reliable Toray UF membrane • The same operation procedure as the Toray UF module • Compact piping arrangement, which saves engineering and reduces installation •...

  • Page 7: Safety Instruction For Unpacking And Installation

    Toray UF 1. Safety Instruction for Unpacking and Installation Instruction Manual 06-G-MB2-TUFRack-240801...

  • Page 8: Safety Instruction For Filtration Operation

    Toray UF 2. Safety Instruction for Filtration Operation Instruction Manual 06-G-MB2-TUFRack-240801...
  • Page 9 Toray UF Instruction Manual 06-G-MB2-TUFRack-240801...

  • Page 10: Safety Instruction For Chemical Cleaning

    Toray UF 3. Safety Instruction for Chemical Cleaning Instruction Manual 06-G-MB2-TUFRack-240801...

  • Page 11: Safety Instruction For Disposal

    UF modules which are in their original sealed package can be stored for 12 months from the date they were shipped from Toray’s factory or warehouse. If they are stored for longer than 12 months, the warranty will become void unless otherwise Toray Industries, Inc.

  • Page 12: Specifications Of Toray "Hfug-2020Hn" For Tuf Rack Series

    Toray UF III. Specifications of Toray "HFUG-2020HN" for TUF Rack series Instruction Manual 06-G-MB2-TUFRack-240801...
  • Page 13 Toray UF Instruction Manual 06-G-MB2-TUFRack-240801...
  • Page 14 Toray UF Instruction Manual 06-G-MB2-TUFRack-240801...

  • Page 15: Configuration Of Toray "Hfug-2020Hn" Membrane Module

    Toray UF IV. Configuration of Toray "HFUG-2020HN" Membrane Module 1. Configuration of Toray "Type HN" Membrane Module Instruction Manual 06-G-MB2-TUFRack-240801...

  • Page 16: Configuration Of "Toray Uf Tuf Rack

    Toray UF 2. Configuration of “Toray UF TUF Rack” Instruction Manual 06-G-MB2-TUFRack-240801...
  • Page 17 Toray UF Fig. 2. “Toray UF TUF Rack” Modules and Components Instruction Manual 06-G-MB2-TUFRack-240801...
  • Page 18 Toray UF Instruction Manual 06-G-MB2-TUFRack-240801...
  • Page 19 Toray UF Instruction Manual 06-G-MB2-TUFRack-240801...

  • Page 20: Shipping And Handling

    Base Channel. The customer needs to determine the required number of workers in accordance with the situation. Toray recommends workers who are capable of properly handling heavy objects and have experience in assembly work under the local regulations and rules.
  • Page 21 Toray UF Instruction Manual 06-G-MB2-TUFRack-240801...
  • Page 22 Toray UF Instruction Manual 06-G-MB2-TUFRack-240801...
  • Page 23 Toray UF Instruction Manual 06-G-MB2-TUFRack-240801...
  • Page 24 Toray UF 　(1) Recommendation Tools List 　 In addition to the above list, tap water or equivalent quality water is required to prevent the hollow fiber membrane from drying out, which is used for filling into assembly rack and UF modules from feed water side such as upper side nozzle of UF module.
  • Page 25 2. Check the quantities of UF modules and rack parts with the list provided. Inspect 　the UF module and rack components for any defects or damages. Contact Toray 　officials if you find any mismatches in the number of the module and parts, defects, 　or damages.
  • Page 26 Toray UF 6. Set the assembled Base Channel at the planned position, and mark drill hole positions for Anchor Bolts. To check the installation position more precisely, place a bottom header with a Flange temporarily on the Base Channel, and make sure it can be connected to the Flange of the feed pipe to which it will be connected.
  • Page 27 Toray UF 11. Set a bucket to receive the preservative solution and remove a plugging plate of the upper side nozzle. Be cautious of preservative solution which comes out when the plate is opened. Turn the module nozzle down and remove the preservative solution.
  • Page 28 Toray UF 12. Place Header-1#1 [11] and Header-1#2 [12] to each end of the module. Air injection is attached to the Header-1#2, but not to the top header. Make sure that the O-ring [9] between the module and the header fits correctly.
  • Page 29 Toray UF 13. Cover with a pair of the V-band half-shells for Module [8] which is described in step 11 so that the protrusion and the circle mark are visible through the V-band window and tighten the V-band. Make sure the bolts are securely fastened to prevent leaks.
  • Page 30 Toray UF 15.To connect to the pipes, attach Flange Conversions to the four headers (the top and bottom headers) of two modules of the rack. Using the Housing Joint DN150 with gasket [15], attach a Flange Conversion [16] to each header of one module (Module #1).
  • Page 31 Toray UF 18. Position Module #1 so that three edges of the Header-1#2 (Bottom Header) are aligned with those of the Base Channel (See the yellow line in the right figure). Place a spirit level tool along the module and make sure the module is installed in vertical direction (see the step 21).
  • Page 32 Toray UF 20. Using the Housing Joint 65A [10] described in the step 11, attach the Long Elbow [18] to the upper side nozzle of the module so that the long pipe of the Long Elbow points vertically upwards. 21. Place a spirit level tool along the long pipe of the Long Elbow and make sure the Long Elbow is installed in vertical direction at least at two sides.
  • Page 33 Toray UF 23. Attach the gaskets for the top and bottom headers in the Housing Joints DN150 [15] to the opening of each header of Module #1. 24. Repeat the steps 17 to 23 to install Module #2 on the Base Channel opposite to Module #1 with its side nozzles facing Module #1 and attach the Long Elbow.
  • Page 34 Toray UF 27.Repeat the steps 17 to 26 continuously to install the module next to the installed module that starts from Module #2, to attach the Long Elbow, and to connect the adjacent Headers. On the way to these steps, install Central Fixtures [20].
  • Page 35 Toray UF 30. The mounting positions of the Flat Bars [21], the Bolts [22], and the Manifold Base [23] are shown in the drawing below. The Flat Bars and the Manifold Base should be fixed in the following order: 1) Placing and fastening the Flat Bars at the outer sides (1-1, 1-2, 4-1 and 4-2).
  • Page 36 Toray UF 32. Assemble the manifold for the Flange Conversion side. Wet the O-ring with clean water. Using the O-rings [24] and the V-bands for Manifold [25], attach the Flange Conversion [26] to the Manifold [27]. Make sure the bolts are securely fastened to prevent leaks.
  • Page 37 Toray UF 35. Reposition the Manifold so that the Long Elbow and Manifold pipe are in close proximity. In all piping, ensure that the distance between the center line of the Manifold pipe and the center line of the Long Elbow pipe is less than 6 mm.
  • Page 38 A check valve should be prepared and installed between the Air Pipe of the rack and the existing pipes to avoid water reverse flow. The check valve is not included in the parts supplied by Toray. Instruction Manual 06-G-MB2-TUFRack-240801...

  • Page 39: Disassembly And Disposal

    Toray UF 2. Disassembly and Disposal Before disassembly, the corresponding rack must be isolated after the water is all drained out. The disassembly procedure is performed in reverse order to the assembly. Two workers or more should be required for disassembly. Instruction Manual...

  • Page 40: Operation

    Toray UF VI. Operation 1. Filtration Instruction Manual 06-G-MB2-TUFRack-240801...

  • Page 41: Backwash And Air-Scrubbing

    Toray UF (1) Check that all pipes are connected appropriately and flushed out prior to the operation. Fig. 3 shows a standard example of membrane pipe connection. (2) Make sure the feed water valve (V-1), the drainage valve (V-3), and the air-scrubbing valve (V-2) are “closed”.
  • Page 42 Toray UF (1) Close the feed water valve (V-1) and stop the feed water pump. (2) Open the air vent valve (V-4). (3) Close the filtrate water valve (V-5) and open the backwashing valve (V-6) to feed back the filtrate water from the backwashing tank to the membrane module. During backwash, the chemical feed pump can be operated to dose chemical to the backwash water.
  • Page 43 Toray UF Instruction Manual 06-G-MB2-TUFRack-240801...

  • Page 44: Toray Maintenance Cleaning

    This process is called Toray Maintenance Cleaning (TMC). The TMC is usually held following the backwash and air-scrubbing which does not contain the chemical dosing. The frequency (1) Open the air vent valve (V-4) and the drainage valve (V-3).
  • Page 45 Toray UF (3) As soon as the NaClO is detected in the drainage water, close the drainage valve (V-3). NaClO diluted with UF filtered water is applied to TMC cleaning solution usually. In this case, if the filtered water contains a lot of organic matter, NaClO will be consumed by the organic matter, which may result in a substantial decrease of cleaning efficiency.

  • Page 46: Basic Trans-Membrane Pressure Calculation

    Toray UF (6) Close the air-scrubbing valve (V-2), open the drainage valve (V-3) to drain the chemical from the membrane module. (7) Close the drainage valve (V-3), and then open the backwashing valve (V-6) and run the backwashing pump (normally 30 seconds). Stop the backwashing pump and close the backwashing valve (V-6), and then open the air-scrubbing valve (V-2) (normally 30 seconds).

  • Page 47: Temperature Correction Factor

    Toray UF Note, the following formula may also be used: = Pin - Pout - total delta H = 70 - 20 - (10 - (- 25)) = 15 kPa 5. Temperature Correction Factor The permeability of the membrane is influenced by temperature mainly because the water viscosity changes with temperature.

  • Page 48: Chemical Cleaning

    Toray UF VII. Chemical Cleaning The chemical cleaning should be carried out to remove foulants accumulated in the membrane pores or sticking to the membrane surface. Instruction Manual 06-G-MB2-TUFRack-240801...
  • Page 49 Toray UF (1) The flow diagrams for cleaning simultaneously both outer surface and inside of hollow fiber membranes is shown in Fig. 11 and Fig. 12. The flow diagrams can be changed case by case. Please contact us for further information if necessary.

  • Page 50: Storage Of Membrane Module

    Toray UF *1): Besides citric acid, the following acids are acceptable. - Hydrochloric acid (with the maximum concentration of 1.0 mol/L) - Oxalic acid (with the maximum concentration of 1.0 wt%) - Sulfuric acid (with the maximum concentration of 0.05 mol/L) - Nitric acid (with the maximum concentration of 0.1 mol/L)

  • Page 51: Storage Of New Membrane Modules

    Toray UF 1. Storage of New Membrane Modules Keep the modules in the original package box in a dark and cool place (1 to 40 deg C). Avoid direct sunlight and moisture. 2. Storage of Membrane Modules and Racks after Use (1) Short-term/temporary shutdown or storage In the case of the suspension of operation for less than four days, stop the feed water and keep modules full of water at 1 to 40 deg C.

  • Page 52: Replace Preservative Solution

    In case that sodium hypochlorite is being used as the preservative, replace it if the sodium hypochlorite concentration is less than 0.1 mg/L as Cl2. IX. Appendix Following information is provided in the separate-attached document. (1) Assembly of “Toray UF TUF Rack” (Example: 2 rows x 12 modules) Instruction Manual 06-G-MB2-TUFRack-240801...
  • Page 53 Toray UF This Instruction Manual does not intend to guarantee the results of application of the information provided herein or the safety and the compatibility of this product. Before using this product, the user is asked to check for its safety and compatibility with the intended purpose.
  • Page 54 RO, NF, UF, MBR, and antiscalant products to solve water and process treatment challenges. Contact us today to fi nd out how Toray can help maximize water recovery, achieve high water quality for water reuse, lower energy requirements, and minimize life cycle costs.
