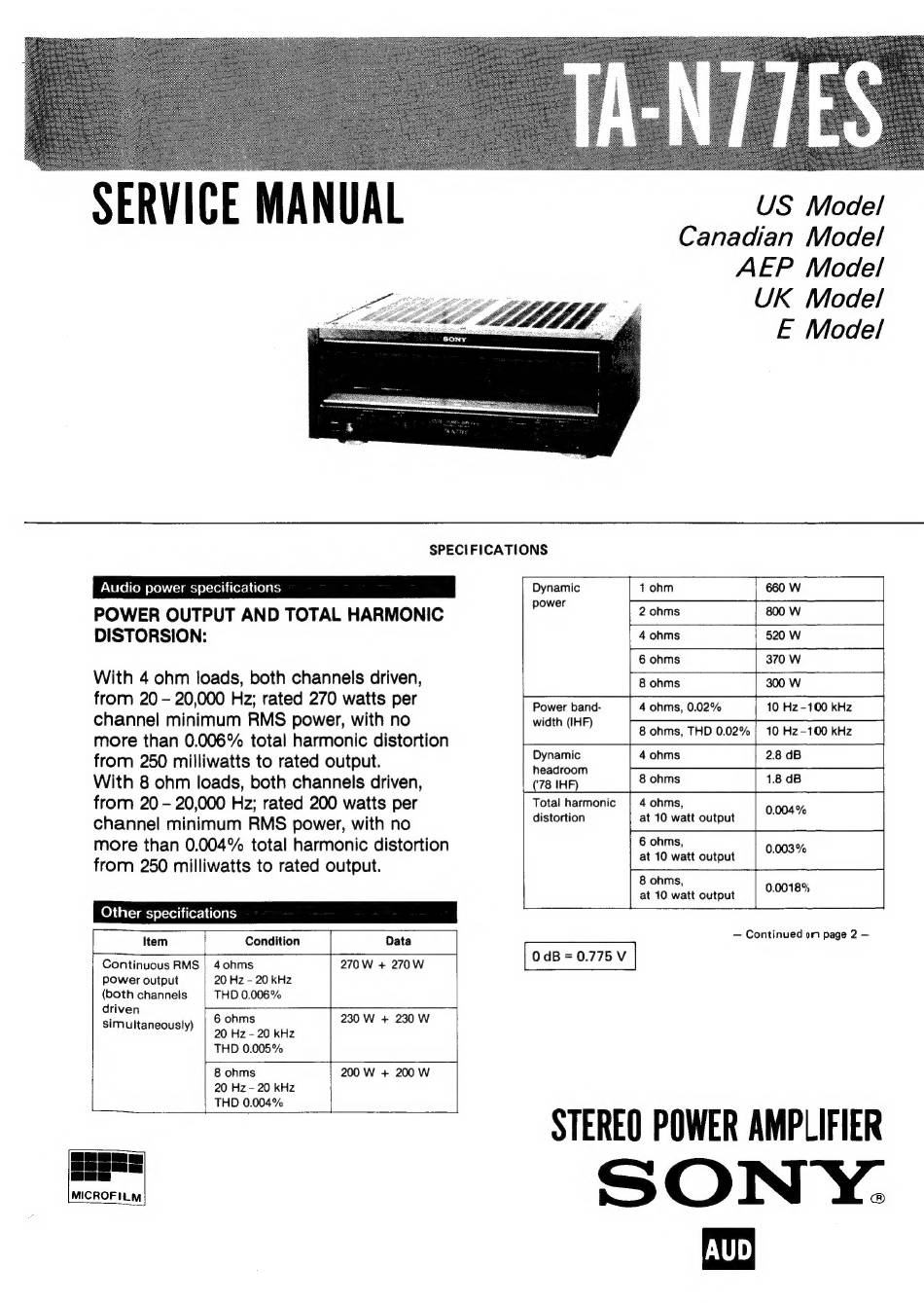

Sony TA-N77ES Service Manual

SERVICE MANUAL
US Model
Canadian Model
AEP Model
SPECIFICATIONS
Audio power specifications
POWER OUTPUT AND TOTAL HARMONIC
DISTORSION:
With 4 ohm loads, both channels driven,
from 20 - 20,000 Hz; rated 270 watts per
channel minimum RMS power, with no
more than 0.006% total harmonic distortion
from 250 milliwatts to rated output.
With 8 ohm loads, both channels driven,
from 20 - 20,000 Hz; rated 200 watts per
channel minimum RMS power, with no
more than 0.004% total harmonic distortion
from 250 milliwatts to rated output.
Other specifications
Item Condition Data
Continuous RMS | 4ohms 270W + 270W
power output 20 Hz - 20 kHz
(both channels THD 0.006%
driven
simultaneously)
6 ohms
20 Hz - 20 kHz
THD 0.005%
230 W + 230 W
8 ohms
20 Hz - 20 kHz
THD 0.004%
200 W + 200 W
MICROFILM
Dynamic 1 ohm
6 ohms,
at 10 watt output
8 ohms,
at 10 watt output
660 W
oe. roche. owe
4 ohms 520 W
6 ohms 370 W
8 ohms 300 W
Power band- 4 ohms, 0.02%
ee) 8 ohms, THD 0.02% | 10 Hz—100 kHz
Dynamic 4 ohms 2.8 dB
ene" [ome tea
arta aro ank output | 2.004%
UK Model
E Model
0.0018%
— Continued on page 2 —
0dB=0.775 V

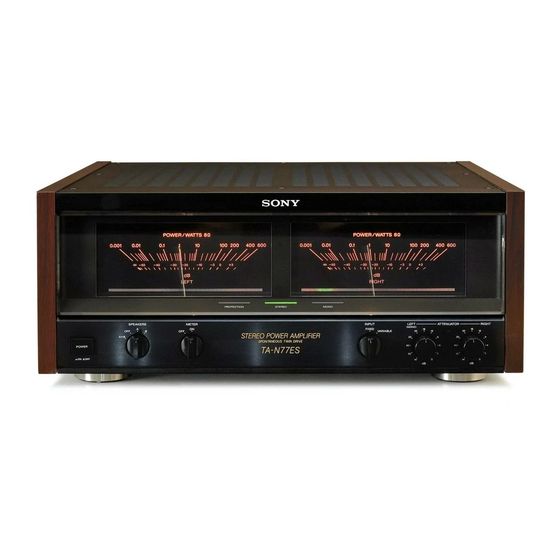

STEREO POWER AMPLIFIER
SONY.
