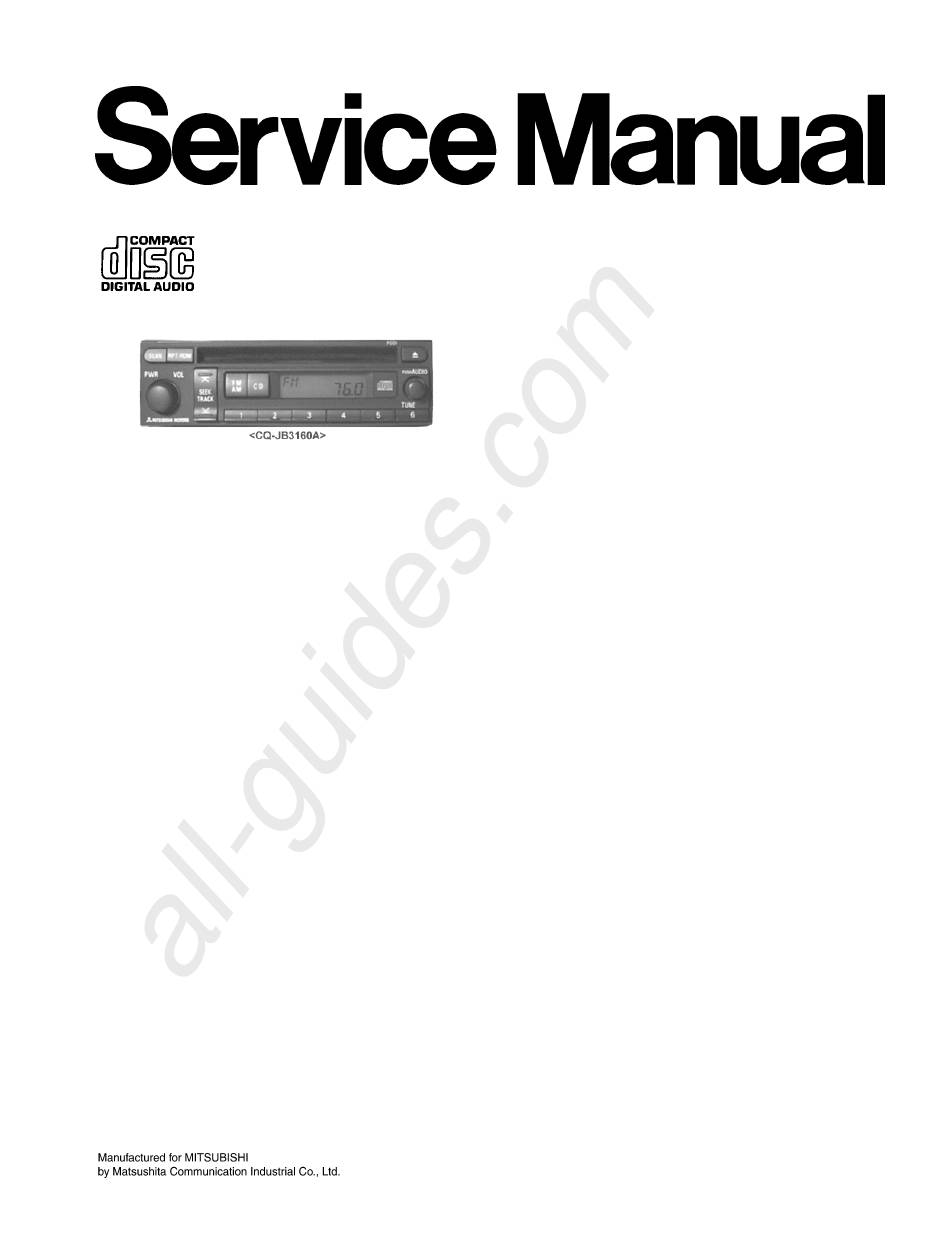

Mitsubishi CQ-JB3160A Service Manual

Specification*
General
Power Supply
Current Consumption
Maximum Power Output
Output Impedance
AM Radio
Frequency Range
Usable Sensitivity
FM Stereo Radio
Frequency Range
Usable Sensitivity
All manuals and user guides at all-guides.com
DC 12V (11V - 16V),
Test Voltage 13.2V,
Negative Ground
Less than 3.0A at 0.5W
35W×4ch (at 4Ω)
4Ω
530 - 1,710kHz
24dB/µV (S/N 20dB)
87.7 - 107.9MHz
7dB/µV (S/N 30dB)
AUTOMOTIVE ELECTRONICS
MITSUBISHI

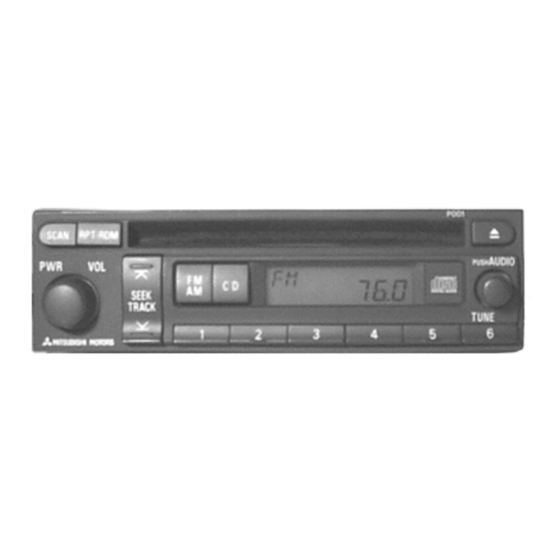

CQ-JB3160A
CQ-JB0160A
AM/FM MPX ELECTRONIC TUNING
RADIO with CD Player
MITSUBISHI PART No. :
CQ-JB3160A : MR587268
CQ-JB0160A : MR587386
ID CODE :
CQ-JB3160A : P001
CQ-JB0160A : P002
VEHICLE :
CQ-JB3160A : LANCER / DIAMANTE
CQ-JB0160A : PAJERO
DESTINATION : North America
PRODUCED AFTER : Apr., 2001
CD Player
Signal to Noise Ratio
Total Harmonic Distortion
Channel Separation
Dimension** (W×H×D)
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
ORDER No.5037
More than 66dB
Less than 0.4%
More than 55dB
178 × 169 × 150mm
1.5kg
