- Page 1 Manual - RX2 Rower English Manual 1 – 15 Dansk Brugsanvisning 16 - 30...

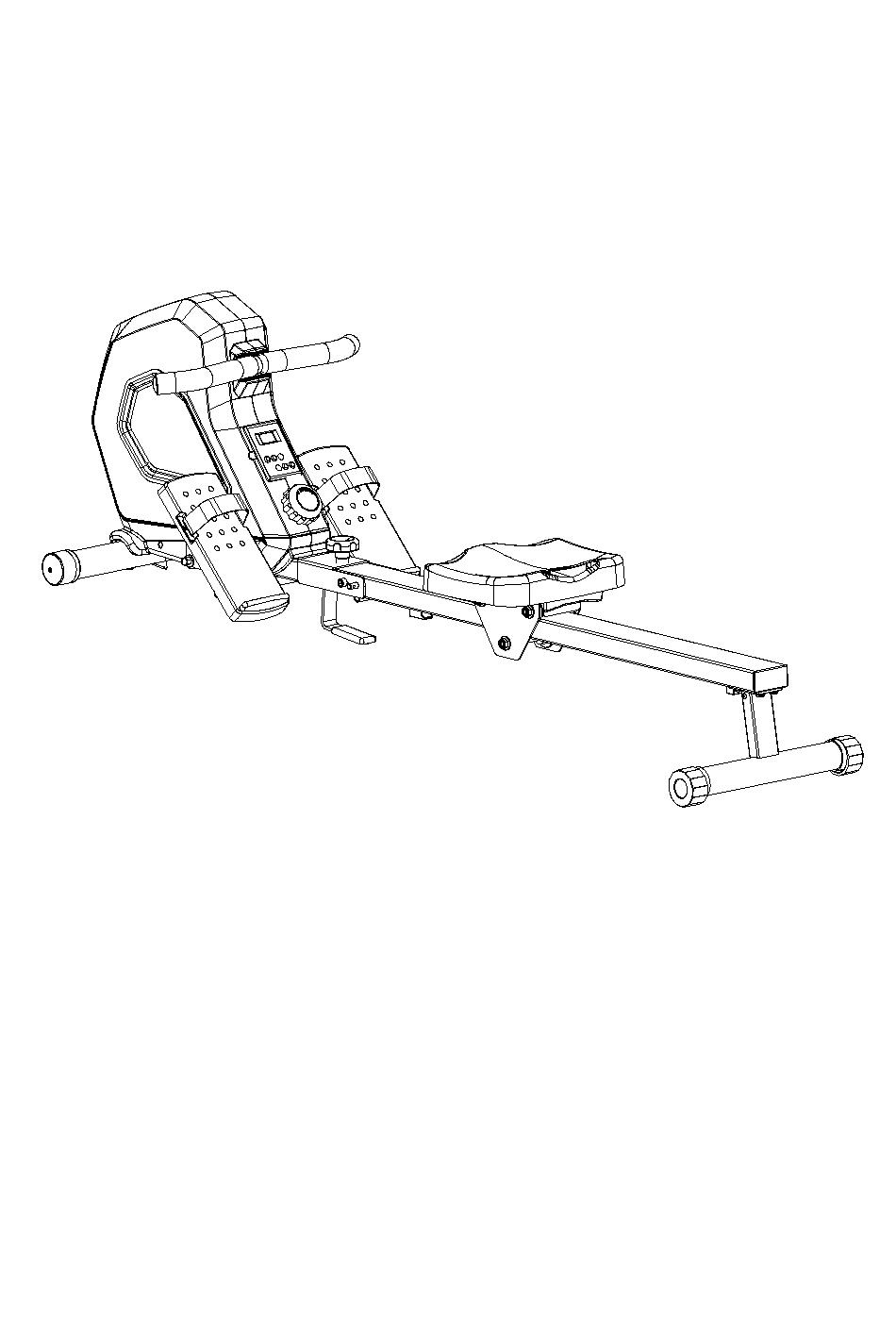

- Page 2 EXPLODED DRAWING...
- Page 3 ASSEMBLY PARTS TOOLS Number Description Front stabilizer Frame Frame support Pedal axle Pedal Pedal strap Rail Rear stabilizer Seat Screw bag...
- Page 4 TOOLS TOOLS...
- Page 5 PARTS AND TOOLS Handlebar φ25.4*1.5T*400L Hex screw M8*75L*S20 Handlebar foam φ23*5T*180L STR Wheel sleeve Q235 End cap Bearing 608 2ZZ Flat washer φ8*φ19*2T 拉绳固定夹 Spring box axle Cr40 78.5L Nylon nut B-0-1 Spring box wheel PA66+10%GF Flywheel B-0-2 Beearing 6003 Hex net 3/8-26 B-0-3...
- Page 6 Wavy washer Ф10.2*Ф13*0.3T Hex screw M10*120L*S30L Flat washer φ6.5*φ13*2T M-10 Magnet Hex screw M6*10L Battery Belt wheel ASSEMBLY INSTRUCTION STEP 1...
- Page 7 STEP 2 STEP 3...
- Page 8 STEP 4 STEP 5...
- Page 9 STEP 6 STEP 7...
- Page 10 STEP 8 STEP 9...
- Page 11 STEP 10 STEP 11...
- Page 12 STEP 12 FOLDING INSTRUCTION STEP 1...
- Page 13 STEP 2 STEP 3...
- Page 14 STEP 4...
- Page 15 EXERCISE COMPUTER LT6909-B 一．Button description MODE Switch the parameter on the display Set the target value of time, count and calories. RESET Clear the values ST/SP Start/Stop 二．Function value TIME: 0:00~99:59 CAL : 0.0~99999 COUNT: 0~9999 TOTAL: 0~9999 三．Computer Operation 1 Basic function Power on the console, the console will display all the information for 1 second and the buzzer will give a long "beep", then display the Bluetooth broadcast name for 1 second and enter the working state.
- Page 16 2 BLE APP This console has a built-in Bluetooth module and can be connected to Kinomap APP (FTMS) via Bluetooth. When connected to the APP, the console will turn off the display and the training data will be displayed on the mobile device such as the mobile phone that has established the connection.
- Page 17 Eksploderet tegning...
- Page 18 Montage dele TOOLS Nummer Beskrivelse Antal Forreste stabilisator Ramme Rammestøtte Pedal aksel Pedal Pedal strop Skinne Bagerste stabilisator Sæde Skrue pose...
- Page 19 Værktøj TOOLS...
- Page 20 Reservedelsliste Håndtag φ25.4*1.5T*400L Unbrako skrue M8*75L*S20 Håndtag skum φ23*5T*180L STR Hjul muffe Q235 Endedæksel Leje 608 2ZZ Snøreclips Spændeskive φ8*φ19*2T Fjederkasseaksel Cr40 78.5L Låsemøtrik B-0-1 Fjederkasse hjul PA66+10%GF Svinghjul B-0-2 Leje 6003 Unbrako møtrik 3/8-26 B-0-3 Unbrako møtrik M5*5T Muffe PA66 B-0-4 Trækbælte...
- Page 21 Bølgeskive Ф10.2*Ф13*0.3T Unbrakoskrue M10*120L*S30L Spændeskive φ6.5*φ13*2T M-10 Magnet Unbrako skrue M6*10L batteri Bæltehjul Samlevejledning Trin 1...
- Page 22 Trin 2 Trin 3...
- Page 23 Trin 4 Trin 5...
- Page 24 Trin 6 Trin 7...
- Page 25 Trin 8 Trin 9...
- Page 26 Trin 10 Trin 11...
- Page 27 Trin 12 Folde instruktion Trin 1...
- Page 28 Trin 2 Trin 3...
- Page 29 Trin 4...
- Page 30 Computervejledning LT6909-B 一．Beskrivelse af knapper MODE Skift parameter på displayet Indstil målværdien for tid, antal og kalorier. RESET Ryd værdier ST/SP Start/Stop 二．Funktionsværdier TIME: 0:00~99:59 CAL : 0.0~99999 COUNT: 0~9999 TOTAL: 0~9999 三．Betjeningsvejledning 1 Generelle funktioner Tænd konsollen, konsollen vil vise alle oplysninger i 1 sekund, og buzzer'en vil give en lang "bip"-lyd. Derefter vises Bluetooth-udsendelsesnavnet i 1 sekund, og konsollen går ind i arbejdstilstand.
- Page 31 2 BLE APP Denne konsol har en indbygget Bluetooth-modul og kan forbindes til Kinomap APP (FTMS) via Bluetooth. Når den er forbundet til APP'en, vil konsollen slukke for displayet, og træningsdataene vil blive vist på den mobile enhed, såsom en mobiltelefon, der har etableret forbindelsen.
