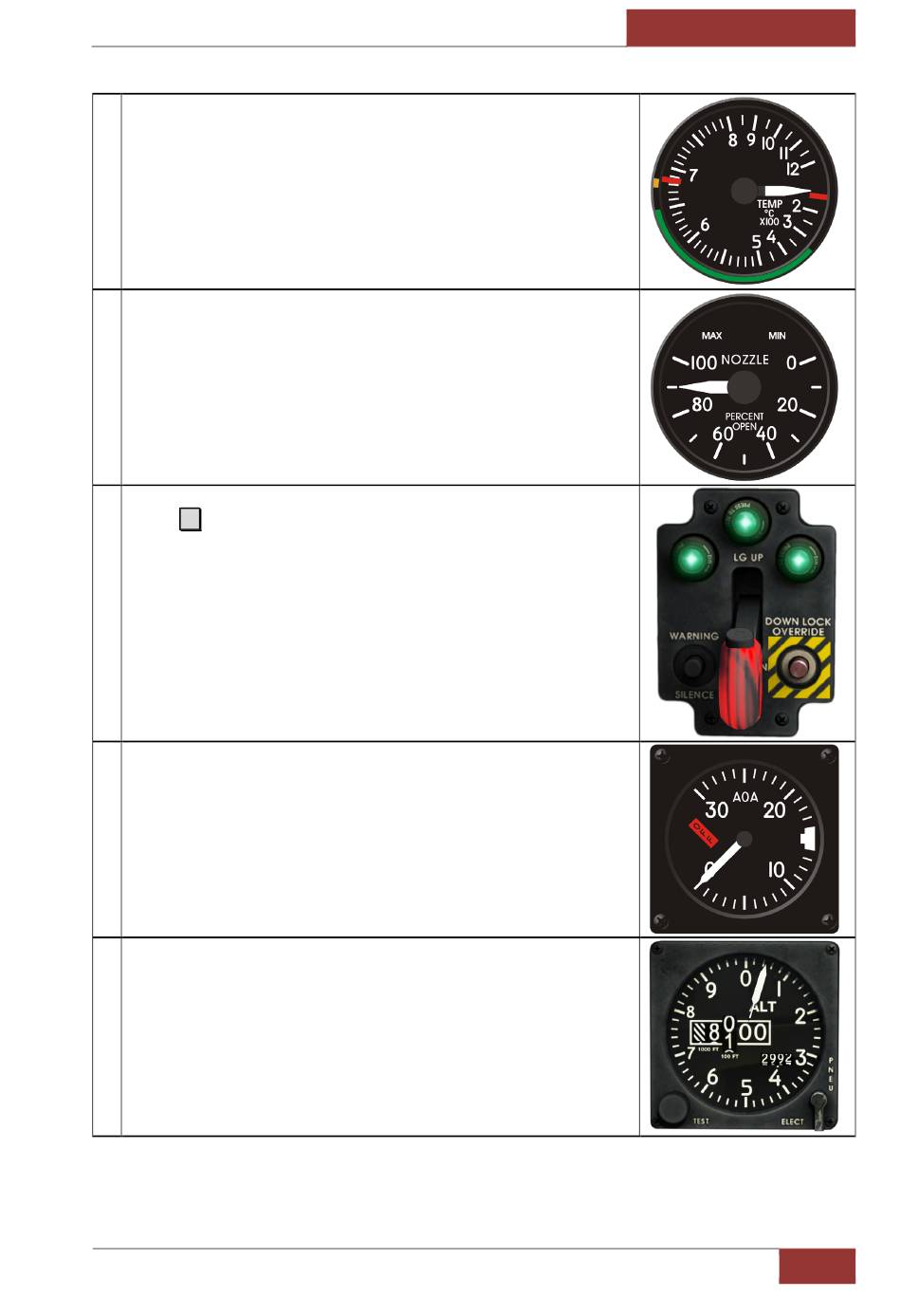

7. Exhaust Gas Temperature Indicators display the temperature of
exhaust gases in ºC x 100.
Red indices show the minimum idle temperature and maximum
temperature at MIL and AB Power.
Yellow index indicates the temperature range allowable under
limited conditions.
8. Nozzle Position Indicators display the current engine nozzle
position as a percentage. When the pointer is at 100%, the nozzle
is fully open, at 0% the nozzle diameter is minimum.
9. Landing gear panel.
Press G to extend or retract landing gear.
Three green lights are illuminated when all landing gear struts are
locked in the extended position.
10. Angle-Of-Attack Indicator displays the angle of attack in units
from 0 to 30. Units are the corrected value of angle of attack that
differs from the actual degrees of angle of attack.
11. Altimeter indicates altitude up to 80,000 feet. The last two digits
(units and tens of feet) always show 00.
The dial is graduated in 20 and 100-foot increments.
NOTE. Altitude readout error accumulation may occur during transonic
flight condition. In this case, the altimeter reverts to a standby mode
(pressure altitude), i.e. the altitude is displayed with an error.
