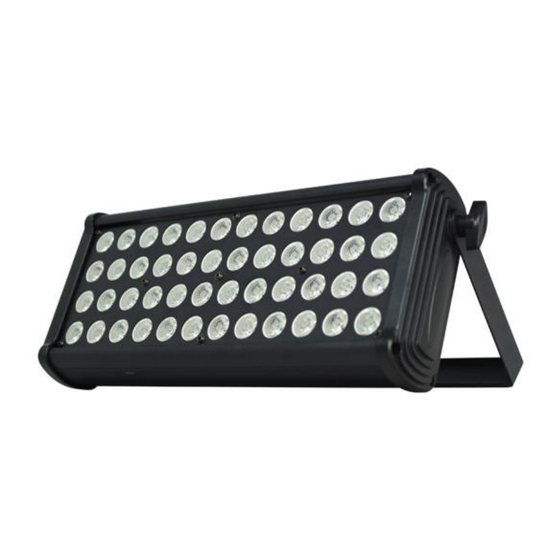

- Page 1 LED stage lighting equipment instructions. 48 4-segment RGB 3 in 1 LED Instructions for use of segment control lights Please read the manual carefully before using it...
- Page 2 Thanks for using our LED Stage Lighting Equipment. Before using, please read the instruction carefully. The instruction using information. Please use the fixtures following the instruction and keep the user manual properly. Our product strictly follow the standard of CE and CCC to design and product. It’s conform to the international standard DMX512 signal protocol.
- Page 3 DMX channel function table 2 channel mode (A001) Channel DMX value Function description 000-005 No effect 006-016 LED color selection: red 017-027 LED color selection: green 028-038 LED color selection: blue 039-049 LED color selection: yellow 050-060 LED color selection: purple 061-071 LED color selection: cyan 072-082...
- Page 4 Channel Function illustrate 000-255 R1 red dimming, from dark to bright 000-255 G1 green dimming, from dark to bright 000-255 B1 blue dimming, from dark to bright 000-255 R2 red dimming, from dark to bright 000-255 G2 green dimming, from dark to bright 000-255 B2 blue dimming, from dark to bright 7-channel mode (H001)
- Page 5 000-255 RGB total dimming, from dark to bright 000-255 R1R2 red dimming, from dark to bright 000-255 G1G2 green dimming, from dark to bright 000-255 B1B2 blue dimming, from dark to bright 000-255 R3R4 red dimming, from dark to bright 000-255 G3G4 green dimming, from dark to bright 000-255...
- Page 6 2 Digital tube display menu description Serial conte Numeric Function description numbe al range A001 001- 512 DMX512 address code setting-2 channel mode C001 001- 512 DMX512 address code setting-3 channel mode d001 001- 512 DMX512 address code setting-4 channel mode E001 001- 512 DMX512 address code setting-6 channel mode...
