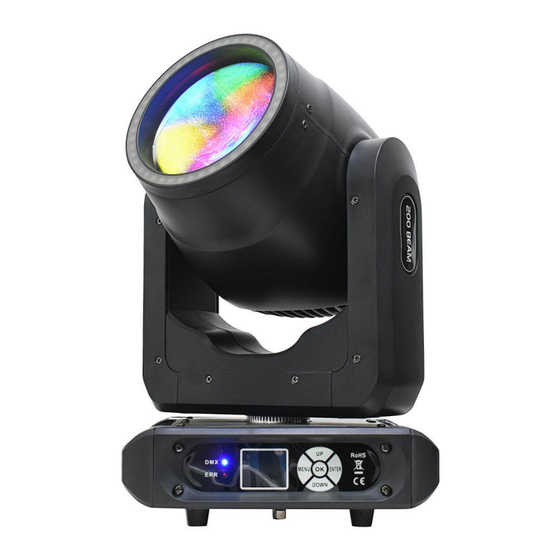

King Kong 200B Beam Moving
Head Light
User Manual
(Please read the manual carefully before using the product and take care of it properly)

Advertisement

loading
Need help?

Need help?

Do you have a question about the King Kong 200B and is the answer not in the manual?

Questions and answers

Summary of Contents for U'King King Kong 200B

  • Page 1 King Kong 200B Beam Moving Head Light User Manual (Please read the manual carefully before using the product and take care of it properly)
  • Page 2 In order to use this product correctly and safely, please read the manual carefully before installing and using this product. This manual contains important installation and application information, please strictly follow the instructions when installing and operating the product. Meanwhile, please keep this manual in a safe place. Our light which is using a new and beautiful high LED REDSUN King Kong 200W Beam Light...
  • Page 3 so the damage caused is not covered by the warranty. Also, unprofessional handling may result in short circuits, burns or electric shocks, etc. DMX512 Signal Connection: This light uses the DMX512 signal control mode, and the control signals of each light are in a parallel relationship.
  • Page 4 Display menu description ● Menu desktop: TEMP:**℃ Show current TEMP Address code current running mode DMX-512 mode Menu first interface: ◆Address:Click to enter address code settings ◆Setting:Click to enter system settings ◆Manual:Click to enter manual mode ◆Calibration:Click to enter the password to enter the system calibration mode ◆Reset:Click to enter system reset mode ◆Information:Click to view system information...
  • Page 5: System Calibration

    main menu secondary menu Level 3 menu/parameter (The number of channels is added Address 001 - 512 each time, and the subtraction is normal) runing mode DMX/Sound cotrol/Auto 1/Auto 2 channel mode 20CH horizontal inversion On/off vertical inversion On/off Hall error correction On/off optocoupler error On/off...
  • Page 6: System Information

    Options Description Initial position After entering the sub-interface, you can adjust the starting position of the X- calibration axis, Y-axis, color wheel, pattern, prism, and focus motor to make up for the error in hardware installation. The adjustment range is 0~255, and 127 means no adjustment.
  • Page 7  Channel table: 20 channel Channel function Value Effect X axis 0-255 0-540° X-axis fine-tuning 0-255 X-axis fine-tuning Y axis 0-255 0-260° Y-axis fine-tuning 0-255 Y-axis fine-tuning XY speed 0-255 From fast to slow 0-127 Colorful fog cut out colorful fog 128-189 Fog cut in 190-255...
  • Page 8 150-154 Effect 30 155-159 Effect 31 160-164 Effect 32 165-169 Effect 33 170-174 Effect 34 175-179 Effect 35 180-184 Effect 36 185-189 Effect 37 190-194 Effect 38 195-199 Effect 39 200-204 Effect 40 205-209 Effect 41 210-214 Effect 42 215-219 Effect 43 220-224 Effect 44...
  • Page 9 Counterclockwise flow from fast to 128-189 slow 190-193 Stop 194-255 Clockwise flow from slow to fast white light hole Gobo 1 7-10 Gobo 2 11-14 Gobo 3 15-16 Gobo 4 19-22 Gobo 5 23-26 Gobo 6 27-30 Gobo 7 31-34 Gobo 8 35-38 Gobo 9...
  • Page 10: Technical Parameter

    Technical parameter: Voltage:AC100-240V 50/60HZ Light source:120W Power:200W Gobo:17 patterns+white color,with two-way flow, variable speed shaking effect Color wheel:13 colors+white,Bidirectional variable speed rainbow flowing water effect,fog + Colorful Prim:8+16 prims,one-way variable speed rotation Light strip:44 pcs 0.2W RGB 3in1 Dimming:0-100% Linear dimming Channel:20CH Control mode:DMX512,Auto,Sound,Lamp bead overheating protection Protection grade: high temperature engineering plastic, IP20...
